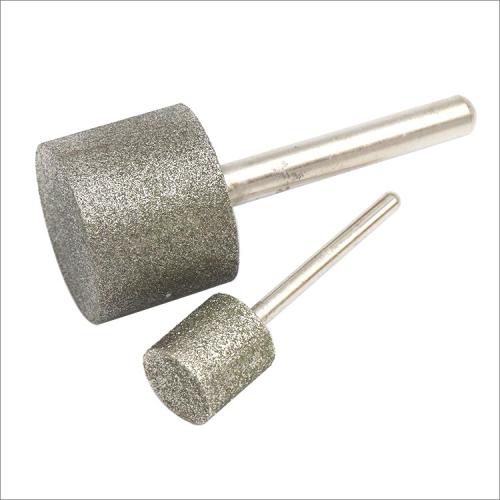

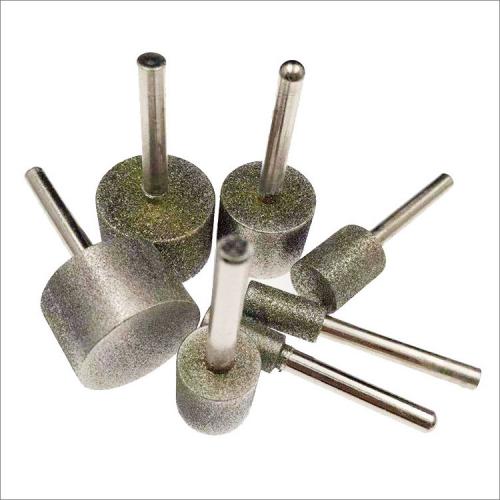

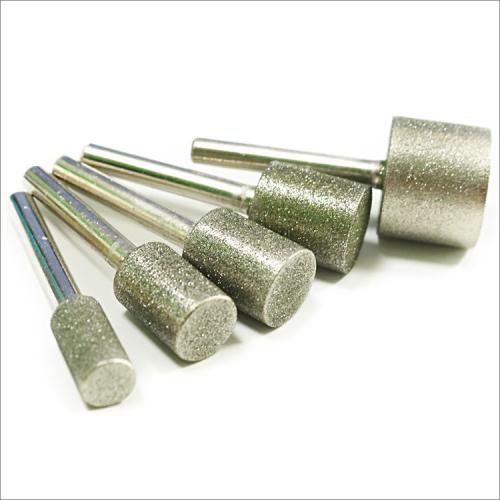

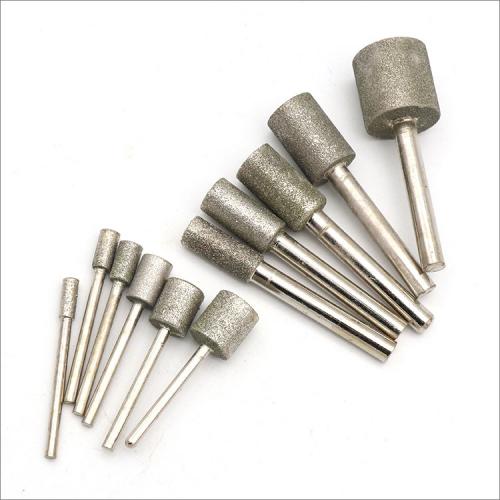

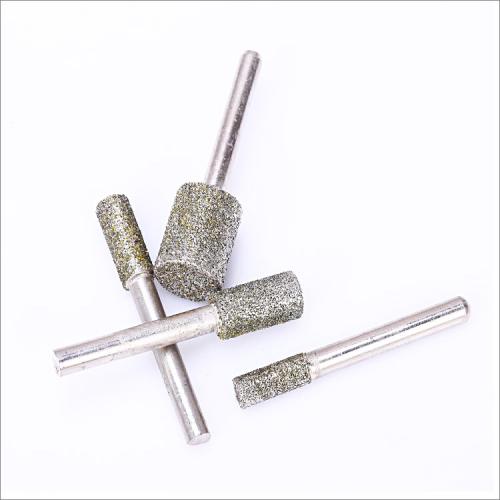

Cylindrical electroplated diamond grinding heads lapidary carving bits rotary tool diamond mounted points

Item No. : DGH-EL01

Diameter: 2mm-35mm
Diamond coated thickness: 10mm to 20mm

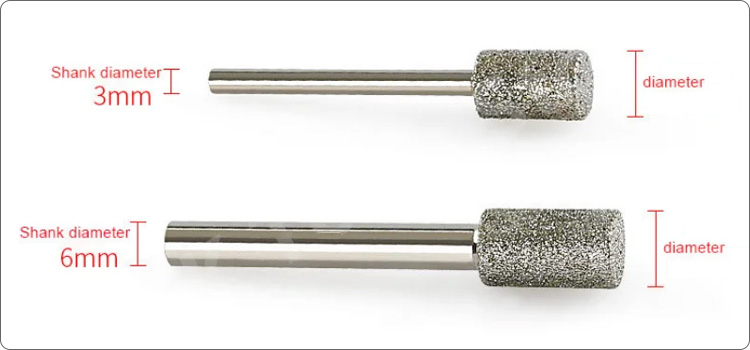

Shank diameter: 2.35mm, 3mm or 6mm
Regular total length: 40-60mm
Diamond grit: #60, #80, #120, #150, #180, #240, #320


Inquiry Now
Detailed Description

Cylindrical electroplated diamond grinding heads lapidary carving bits rotary tool diamond mounted points


These cylindrical electroplated diamond grinding heads are high-performance tools designed for precision carving grinding shaping polishing stone, concrete, ceramic, glass, jewelry, jade, gemstone, bone, alloy and many other abrasive or hard materials, they are suitable for grinding needs at different angles and depths.

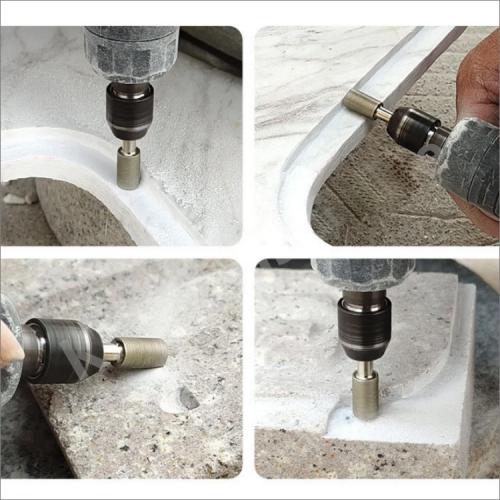

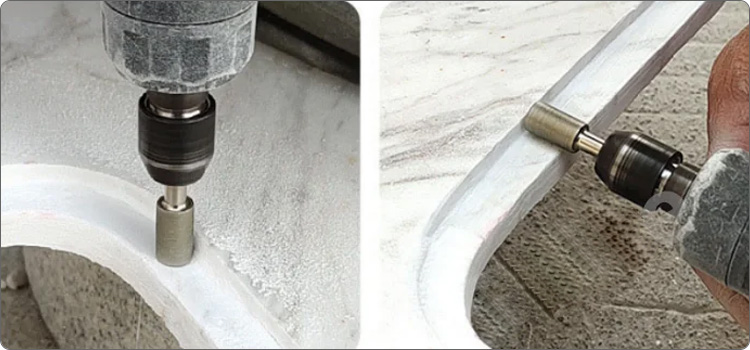

These grinding bits can be installed on the electric grinder, hanging mill and hand electric drill, but never use drills while machine is in hammer action.


Please use water for coolant.


Diameter: 2mm-35mm.

Diamond coated thickness: 10mm to 20mm.

Shank diameter: 2.35mm, 3mm or 6mm.

Regular total length: 40-60mm.

Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.


Code No.

Diameter

Diamond Grit

DGH-EL01-02 2mm #60 - #320
DGH-EL01-03 3mm #60 - #320
DGH-EL01-04 4mm #60 - #320
DGH-EL01-05 5mm #60 - #320
DGH-EL01-06 6mm #60 - #320
DGH-EL01-08 8mm #60 - #320
DGH-EL01-10 10mm #60 - #320
DGH-EL01-12 12mm #60 - #320
DGH-EL01-14 14mm #60 - #320
DGH-EL01-16 16mm #60 - #320
DGH-EL01-18 18mm #60 - #320
DGH-EL01-20 20mm #60 - #320
DGH-EL01-25 25mm #60 - #320
DGH-EL01-30 30mm #60 - #320
DGH-EL01-35 35mm #60 - #320




The above specifications & photos are for reference, other specifications may be available as per demand.
