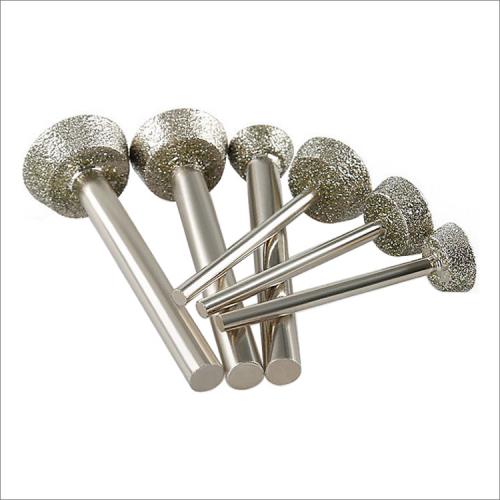

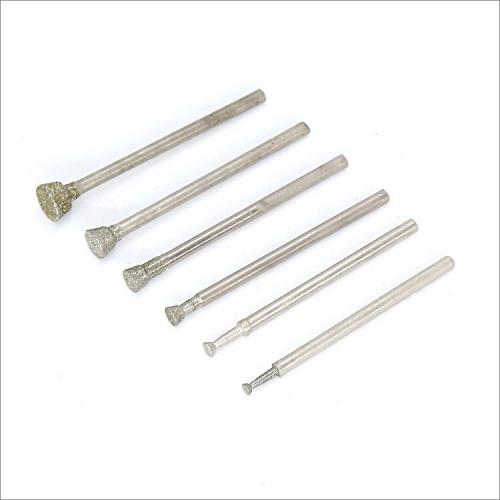

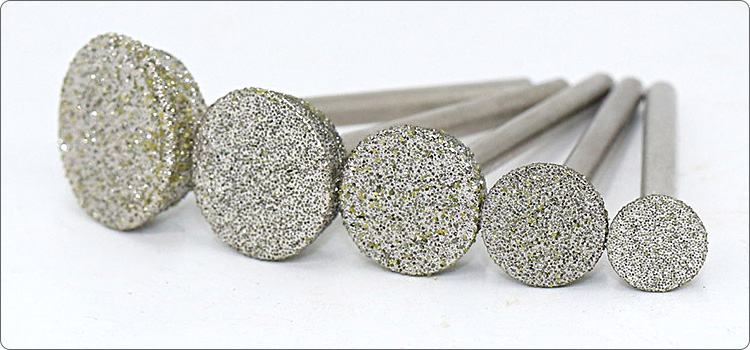

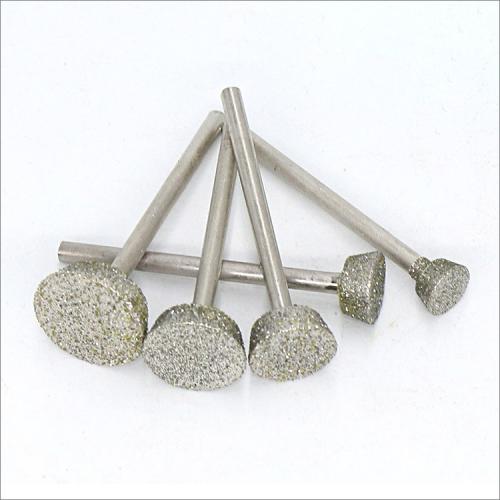

Inverted trapezoid electroplated diamond grinding heads lapidary carving bits rotary tool

Item No. : DGH-EL06
Diameter: 4mm-35mm
Shank diameter: 2.35mm, 3mm or 6mm
Regular total length: 40-60mm
Angles: degree 30/45/60/90/120
Diamond grit: #80, #120, #150, #180, #240, #320
Inquiry Now
Detailed Description

Inverted trapezoid electroplated diamond grinding heads lapidary carving bits rotary tool

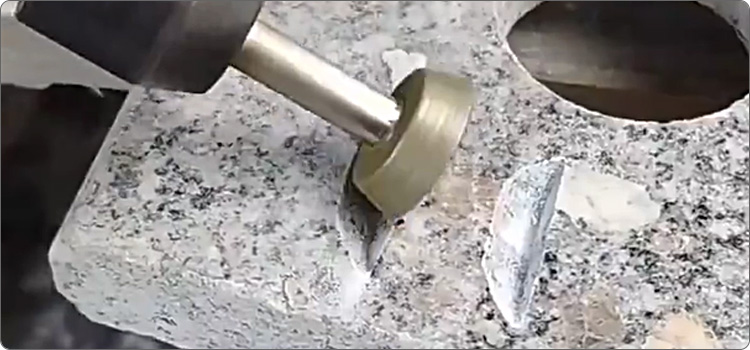

These inverted trapezoid shape electroplated diamond grinding heads are used for sculpturing dressing precision grinding and internal grinding carbide in ceramic, glass, precious stone, jewelry, jade, gemstone, bone, alloy and many other abrasive or hard materials.


These grinding bits can be installed on the electric grinder, hanging mill and hand electric drill, but never use drills while machine is in hammer action.


Please use water for coolant.

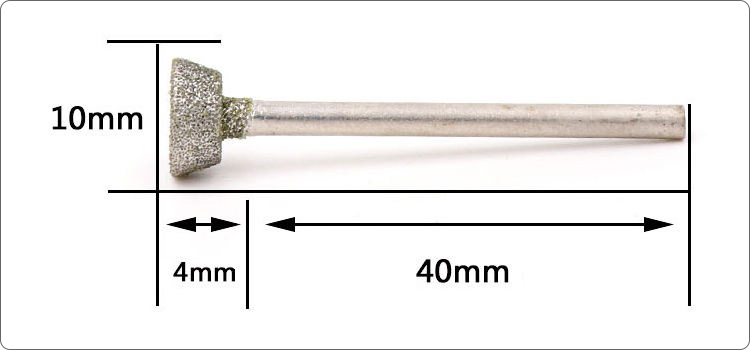

Diameter: 4mm-35mm.

Shank diameter: 2.35mm, 3mm or 6mm.

Regular total length: 40-60mm.

Angles: degree 30/45/60/90/120.

Diamond grit: #80, #120, #150, #180, #240, #320, other grit is possible available.


Code No.

Diameter

Diamond Grit

DGH-EL06-04 4mm #80 - #320
DGH-EL06-05 5mm #80 - #320
DGH-EL06-06 6mm #80 - #320
DGH-EL06-08 8mm #80 - #320
DGH-EL06-10 10mm #80 - #320
DGH-EL06-12 12mm #80 - #320
DGH-EL06-14 14mm #80 - #320
DGH-EL06-16 16mm #80 - #320
DGH-EL06-20 20mm #80 - #320
DGH-EL06-25 25mm #80 - #320
DGH-EL06-30 30mm #80 - #320
DGH-EL06-35 35mm #80 - #320





The above specifications & photos are for reference, other specifications may be available as per demand.
