100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic
Diameter: 4", 4.5", 5"
Diamond grit: #60, #120, #200, #400
Working layer width: 20mm
Adapter: plastic or aluminum
Bore size: 22.23mm, M14, 5/8"-11

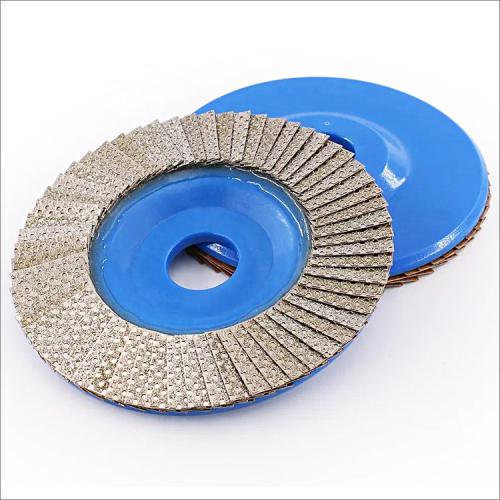

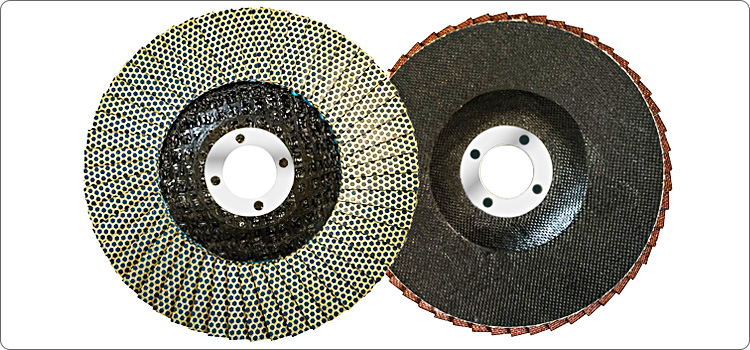

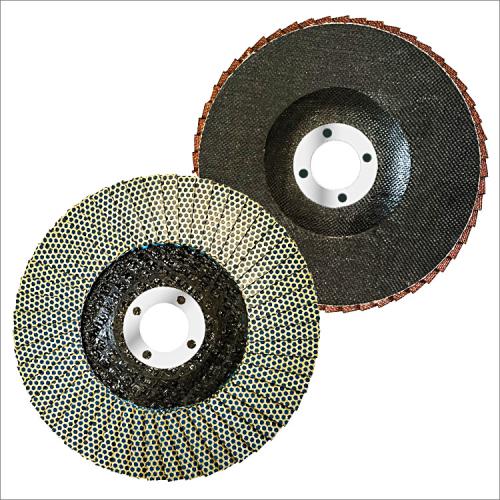

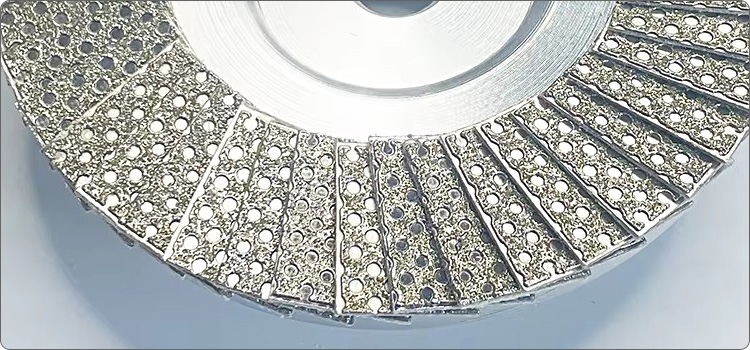

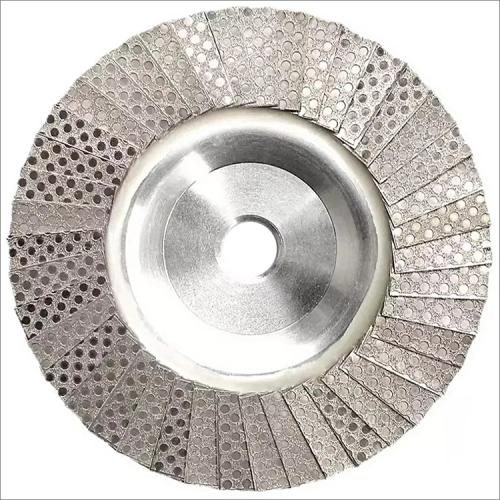

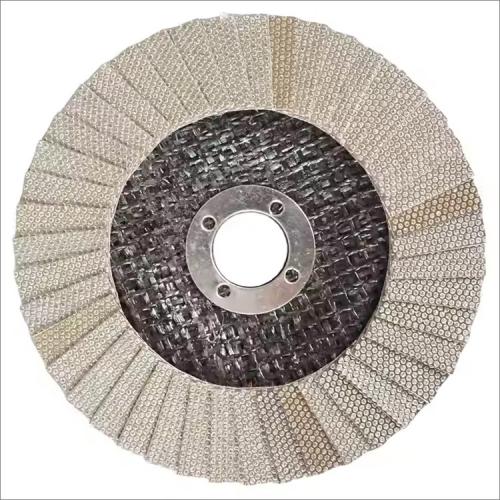

100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic
These 4 to 5 inches electroplated diamond flap discs grinding wheels
are used on polishers or angle grinders for sharp chamfering,
beveling, edge surface grinding a wide range of materials such as
concrete, stone, granite, marble, quartz, ceramic, porcelain tiles,
glass, metals, etc.
Made with quality diamond powder and unique diamond electroplated craft, the discs are aggressive, durable, and fast material removal, compare to cup wheels the hand and arm vibrations is much less, and with strong adhesive fixation, integrated molding, they can be used by directly installing the angle grinder to improve the working efficiency.
Wet or dry use, wet working may prolong the working life.
Diamond grit: #60/#80, #120, #200, #400, other diamond grit is possible available.
Working layer width: 20mm.
Adapter: plastic or aluminum.
Bore size: 22.23mm, M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DFD-EL02-100 |
100mm(4") |
#60/#80, #120, #200, #400 |
| DFD-EL02-115 |
115mm(4.5") |
#60/#80, #120, #200, #400 |
| DFD-EL02-125 |
125mm(5") |
#60/#80, #120, #200, #400 |
The above specifications & photos are for reference, other specifications may be available as per demand.
