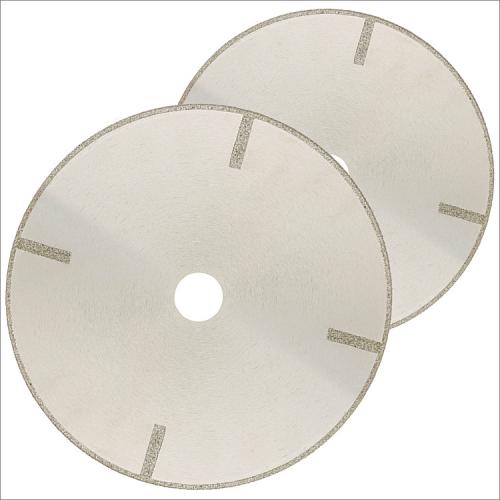

Reinforced electroplated diamond saw blade cutting disc for soft stone marble porcelain
Diameter: 4"-10"
Diamond grit: #40-#120
Diamond working width: 5-10mm
Bore size: 22.23mm, with flange M14, 5/8"-11
Blade type: continuous rim with protecting teeth
Reinforced electroplated diamond saw blades cutting discs for soft stone marble porcelain

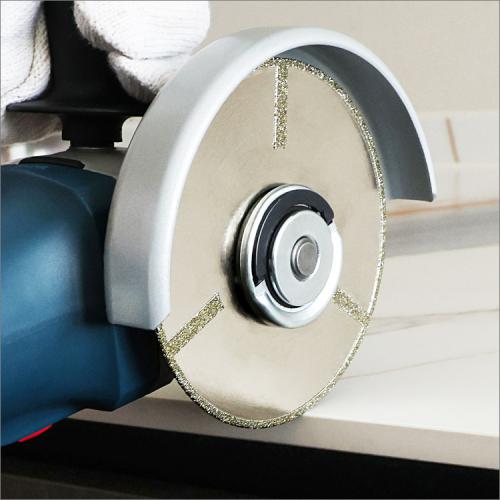

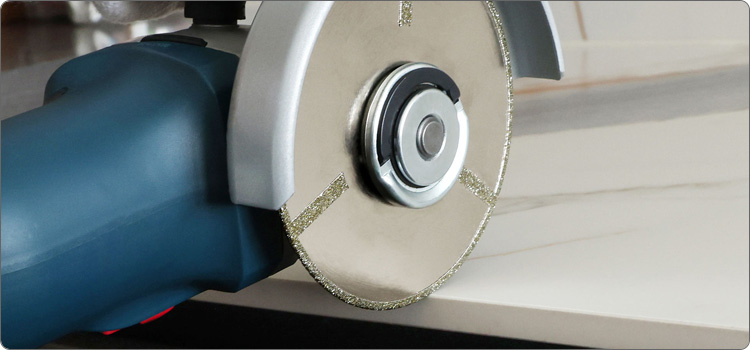

This continuous rim reinforced type electroplated diamond saw blades are used on angle
grinders or cutting machines for sharp and precise cutting a wide

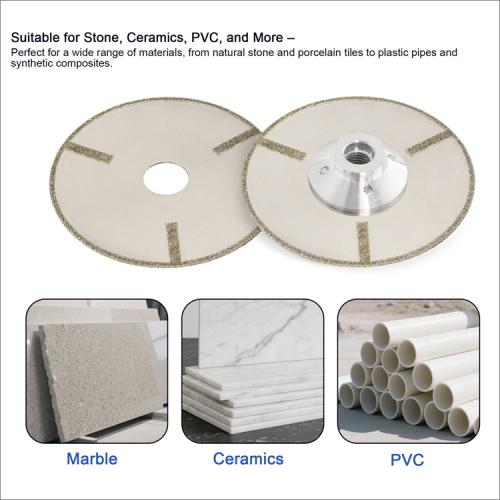

range of materials such as soft
stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic
pipes, synthetic composites with high
cutting efficiency, less chipping, low noise and flexible usage.

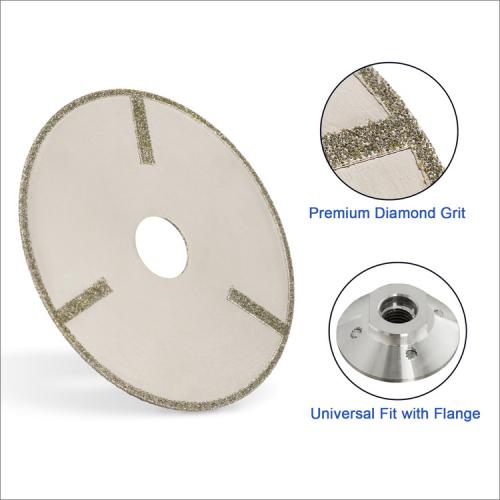

Electroplated technology keeps all diamond grain attached to the double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.
Wet or dry use, wet working may prolong the working life.
Diamond grit: #40, other diamond grit from #50 to #150 is possible available.
Diamond working width: 5-10mm.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL02-100 |
100mm(4") |
#40-#120 |
| DSB-EL02-125 |
125mm(5") |
#40-#120 |
| DSB-EL02-150 |
150mm(6") |
#40-#120 |
| DSB-EL02-180 |
180mm(7") |
#40-#120 |
| DSB-EL02-200 |
200mm(8") |
#40-#120 |
| DSB-EL02-230 |
230mm(9") |
#40-#120 |
The above specifications & photos are for reference, other specifications may be available as per demand.
