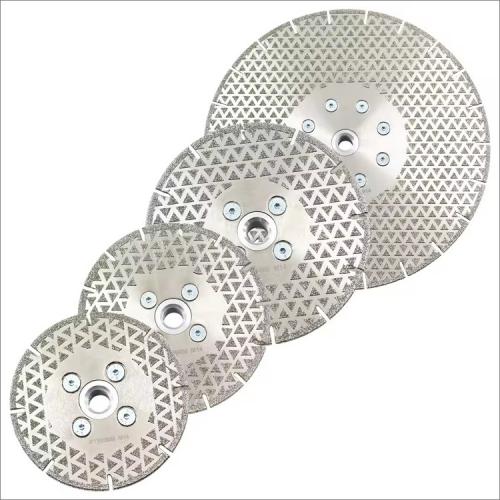

Double sides electroplated diamond cutting grinding disc for marble ceramic soft stone granite
Diameter: 4"-9"
Diamond grit: #40-#120
Diamond working width: 5mm - 10mm
Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11
Blade type: segmented with triangle spots coated on both sides
Wet or dry use

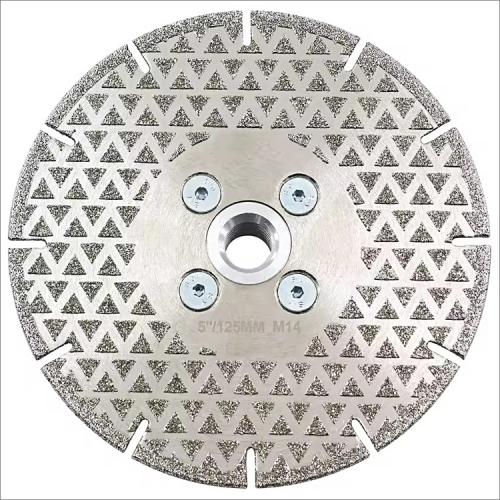

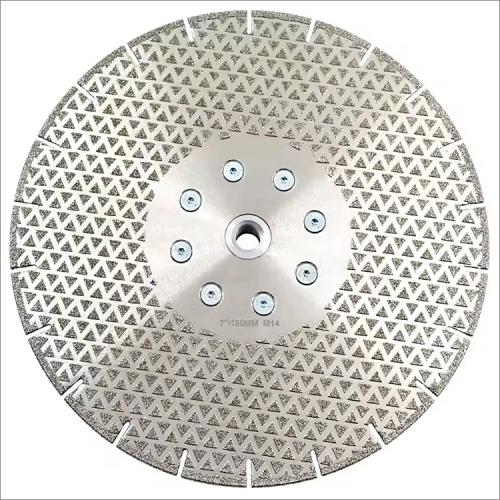

Double sides electroplated diamond cutting grinding disc for marble ceramic soft stone granite
This electroplated diamond blades with U slots are designed for wet or dry cutting grinding soft
stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high
cutting efficiency, low noise and flexible usage.

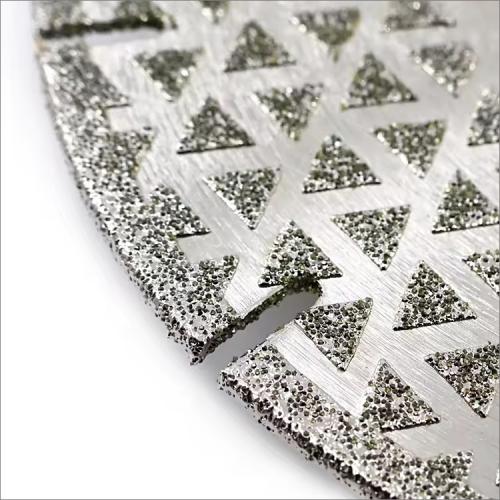

Triangle spots coated on both sides for grinding purpose.
It is one type common tools for cutting and grinding non-metallic brittle materials. Electroplated technology keeps all diamond grain attached to the double sides of steel core, high diamond exposure rate provide high efficient working performance.
Wet working may prolong the working life, and not recommended for hard granite.
Diamond grit: other grits #50 to #150 may be available.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL11-100 |
100mm(4") |
#40 |
| DSB-EL11-115 |
115mm(4-1/2") |
#40 |
| DSB-EL11-125 |
125mm(5") |
#40 |
| DSB-EL11-150 |
150mm(6") |
#40 |
| DSB-EL11-180 |
180mm(7") |
#40 |
| DSB-EL11-230 |
230mm(9") |
#40 |
The above specifications & photos are for reference, other specifications may be available as per demand.
