Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone granite

Item No. : DSB-EL14
Diameter: 1.2"-9"
Diamond grit: #40-#120
Diamond working width: 5mm - 10mm
Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11
Blade type: continuous rim with triangle spots coated on both sides
Use: cutting or grinding
Wet or dry use

Inquiry Now

Detailed Description

Inquiry Now

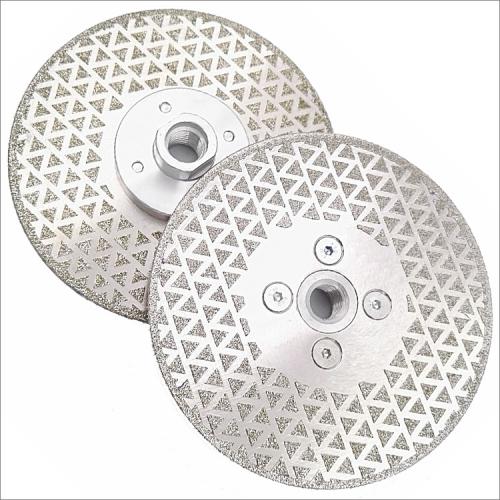

Electroplated diamond saw blade grinding disc for cutting marble ceramic soft stone granite

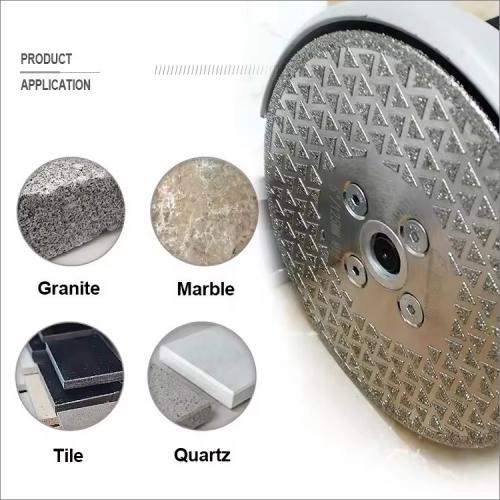

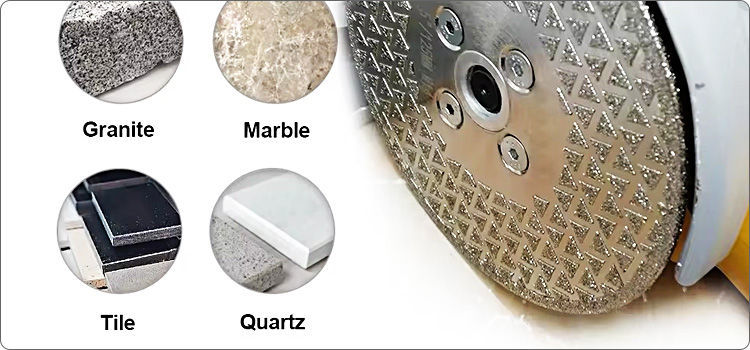

This continuous rim type electroplated diamond blades are designed for wet or dry cutting grinding soft stone, marble, ceramic, glass, fiberglass, gemstone, etc. with high cutting efficiency, low noise and flexible usage.

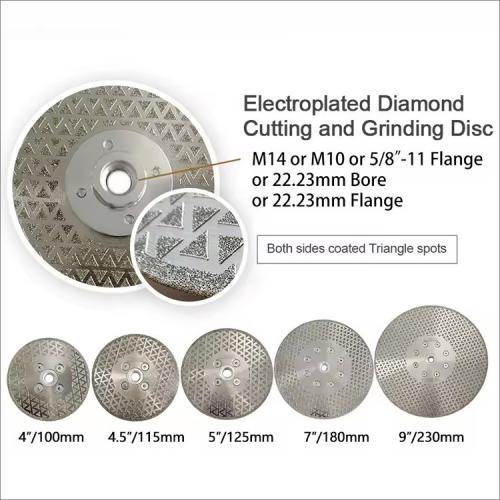

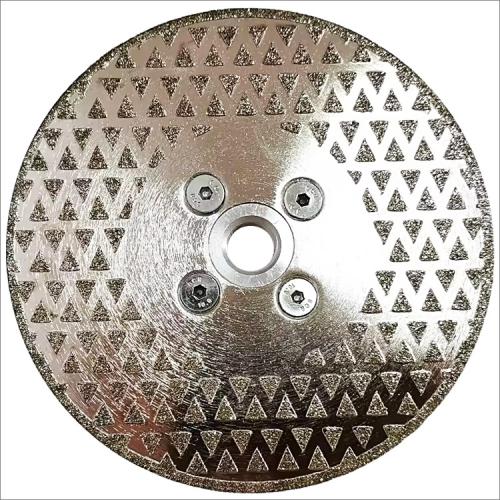

Triangle spots coated on both sides for grinding purpose.

It is one type common tools for cutting and grinding non-metallic brittle materials. Electroplated technology keeps all diamond grain attached to the double sides of steel core, high diamond exposure rate provide high efficient working performance.

Wet working may prolong the working life, and not recommended for hard granite.

Bore size: 22.23mm, with flange M14, 5/8"-11.

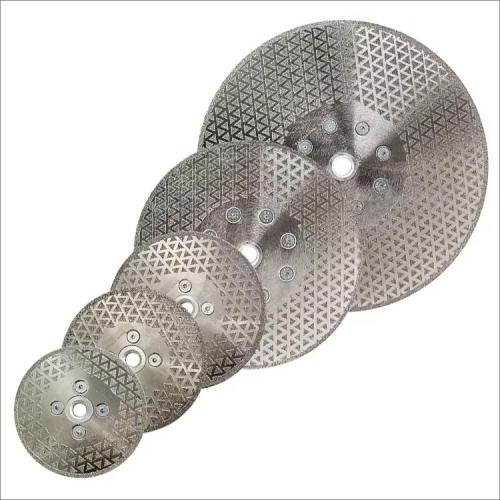

Code No.	Diameter	Diamond grit
DSB-EL14-030	30mm	#40
DSB-EL14-040	40mm	#40
DSB-EL14-050	50mm(2")	#40
DSB-EL14-065	65mm	#40
DSB-EL14-080	80mm	#40
DSB-EL14-100	100mm(4")	#40
DSB-EL14-115	115mm(4-1/2")	#40
DSB-EL14-125	125mm(5")	#40
DSB-EL14-150	150mm(6")	#40
DSB-EL14-180	180mm(7")	#40
DSB-EL14-200	200mm(8")	#40
DSB-EL14-230	230mm(9")	#40
