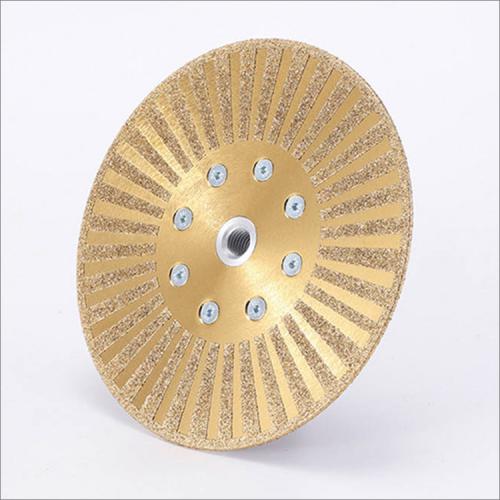

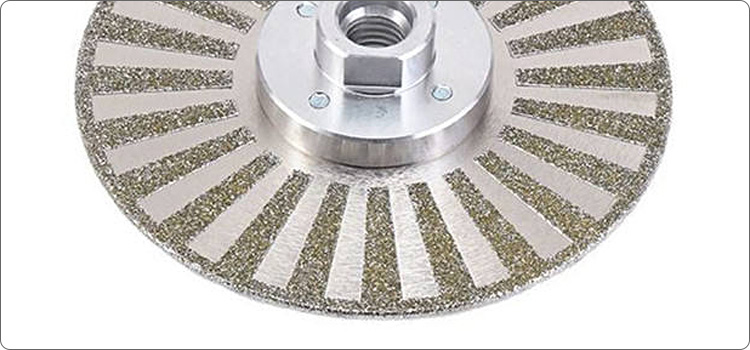

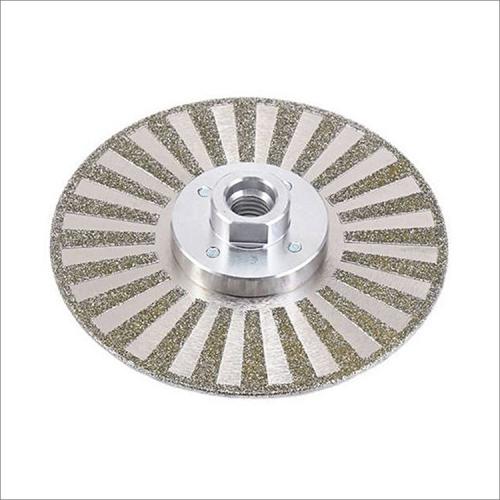

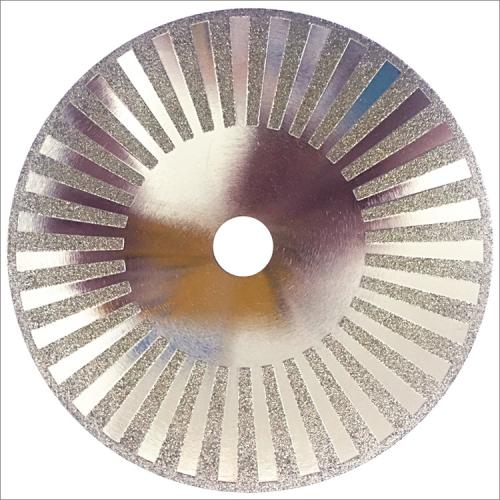

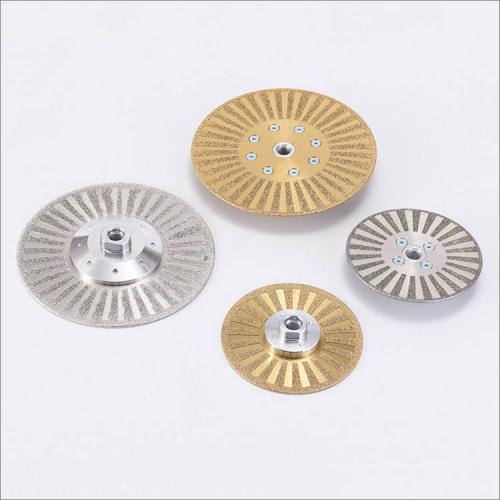

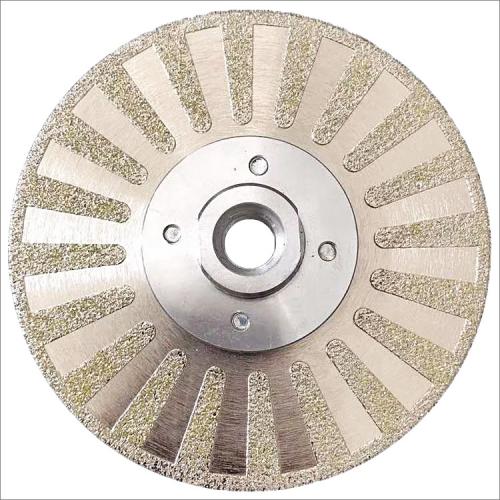

Multi-purpose reinforced electroplated diamond cutting grinding disc for stone porcelain steel plastic

Item No. : DSB-EL13
Diameter: 4.5"-9"
Diamond grit: #40-#120
Diamond working width: 5mm - 10mm
Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11
Blade type: continuous rim with T spots coated on both sides
Use: cutting or grinding
Wet or dry use

Inquiry Now

Detailed Description

Inquiry Now

Multi-purpose reinforced electroplated diamond cutting grinding disc for stone porcelain steel plastic

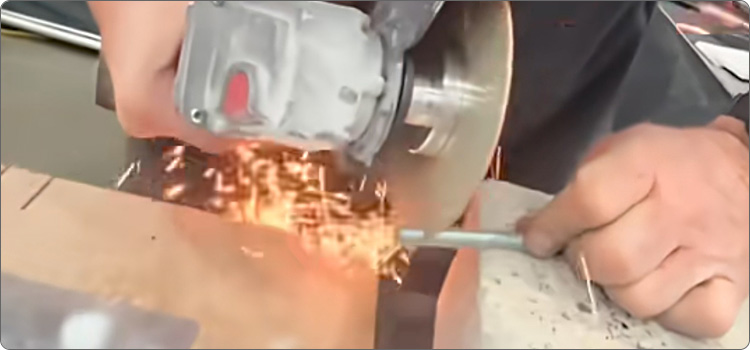

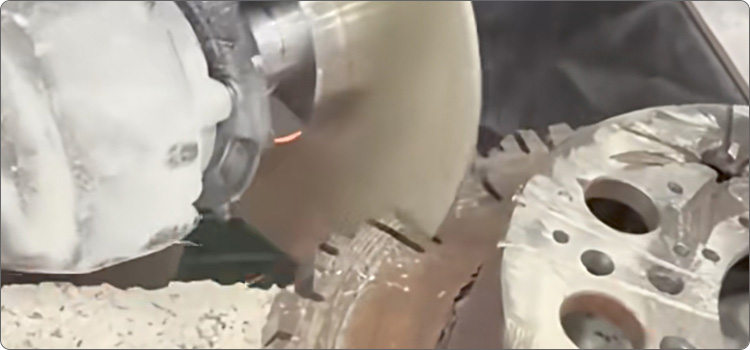

This continuous rim T shape coated reinforced type electroplated diamond saw blades are used on angle grinders or cutting machines for sharp cutting grinding a wide range of materials such as granite, marble, ceramic, porcelain tiles, fiberglass, plastic pipes, steel, synthetic composites with less chipping, low noise and flexible usage.

Electroplated technology keeps all diamond grain attached to the edge and double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.

Wet or dry use, wet working may prolong the working life.

Other diamond grit from #50 to #150 is possible available.

Bore size: 20mm, 22.23mm, with flange M14, 5/8"-11.

Code No.	Diameter	Diamond grit
DSB-EL13-115	115mm(4.5")	#40
DSB-EL13-125	125mm(5")	#40
DSB-EL13-150	150mm(6")	#40
DSB-EL13-180	180mm(7")	#40
DSB-EL13-200	200mm(8")	#40
DSB-EL13-230	230mm(9")	#40
