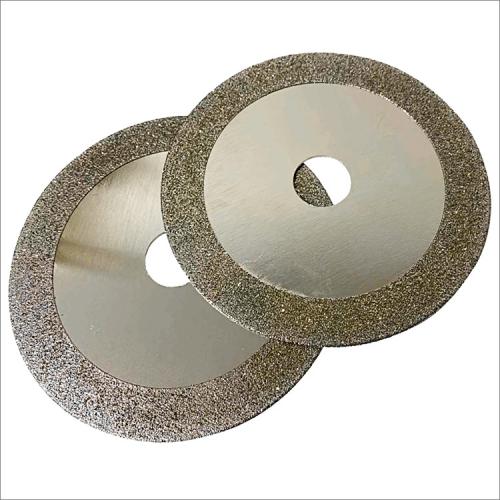

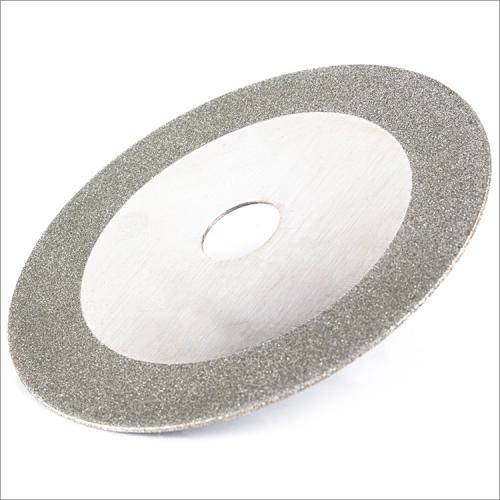

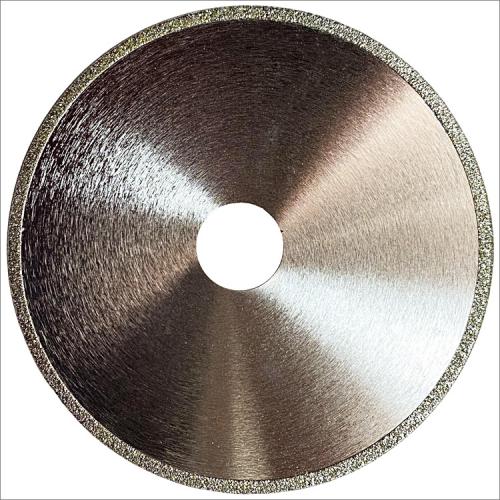

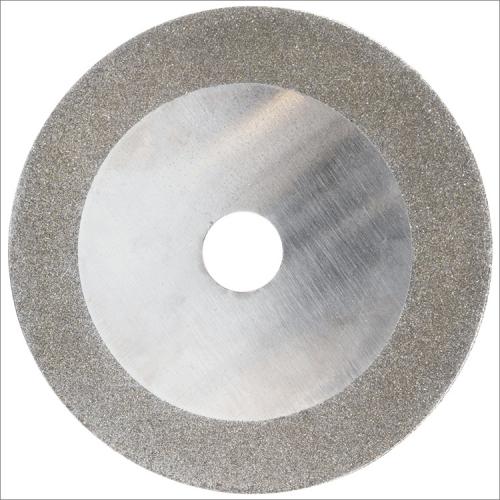

Electroplated diamond saw blade continuous rim cutting grinding disc for soft stone marble porcelain glass
Diameter: 4"-10"
Diamond grit: #40-#120
Diamond working width: 10-15mm

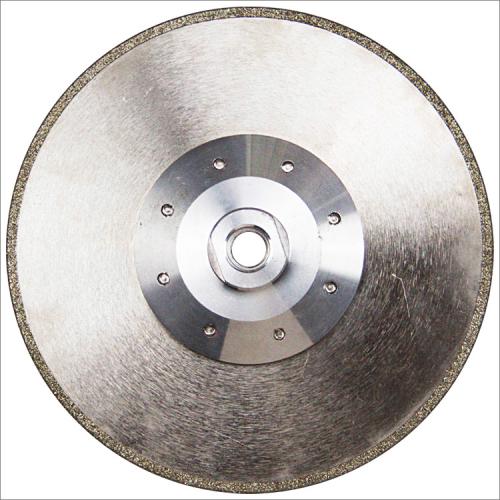

Bore size: 22.23mm, with flange M14, 5/8"-11
Blade type: continuous rim
Electroplated diamond saw blade continuous rim cutting grinding disc for soft stone marble porcelain glass

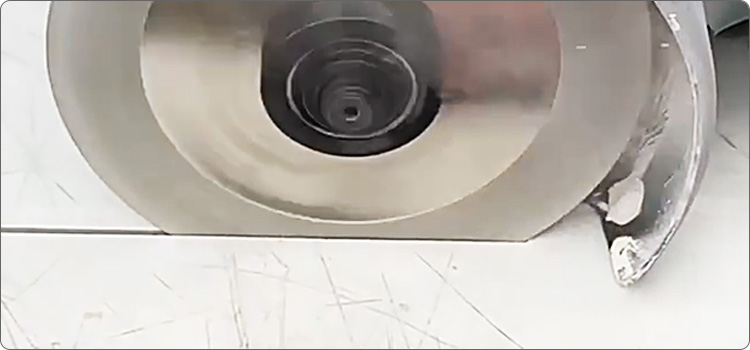

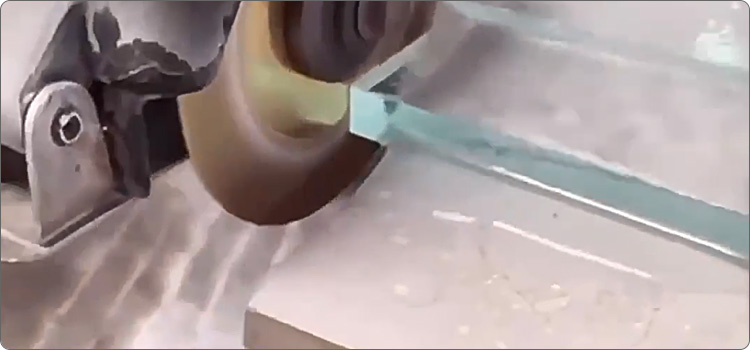

This continuous rim type 4 inches to 10 inches electroplated diamond saw blades are used on angle grinders or cutting machines for cutting grinding a wide range of materials such as soft stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic pipes, synthetic composites with high cutting efficiency, less chipping, low noise and flexible usage.
Electroplated technology keeps all diamond grain attached to the double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.
Wet or dry use, wet working may prolong the working life.
Diamond working width: 10-15mm.
Bore size: 22.23mm, with flange M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL01-100 |
100mm(4") |
#40-#120 |
| DSB-EL01-125 |
125mm(5") |
#40-#120 |
| DSB-EL01-150 |
150mm(6") |
#40-#120 |
| DSB-EL01-180 |
180mm(7") |
#40-#120 |
| DSB-EL01-200 |
200mm(8") |
#40-#120 |
| DSB-EL01-230 |
230mm(9") |
#40-#120 |
| DSB-EL01-250 |
250mm(10") |
#40-#120 |
The above specifications & photos are for reference, other specifications may be available as per demand.
