Ultra-thin straight teeth diamond circular saw blades multi-purpose cutting discs

Item No. : DSB-EL31
Diameter: 100mm - 400mm
Diamond grit: #60-#150
Thickness: 0.2-1.5mm
Bore size: 12.7mm, 16mm, 20mm, 25.4mm, 32mm, 50mm
Wet use
Inquiry Now
Detailed Description

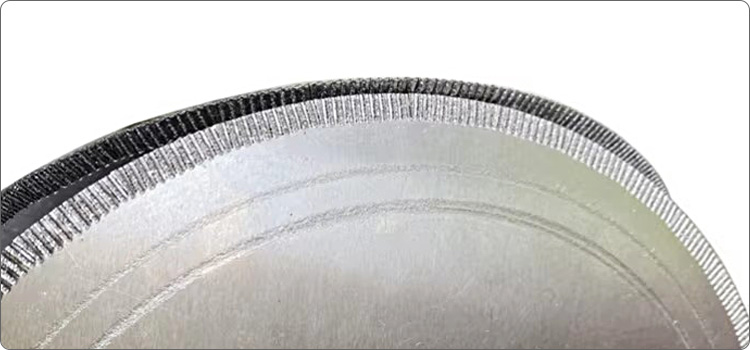

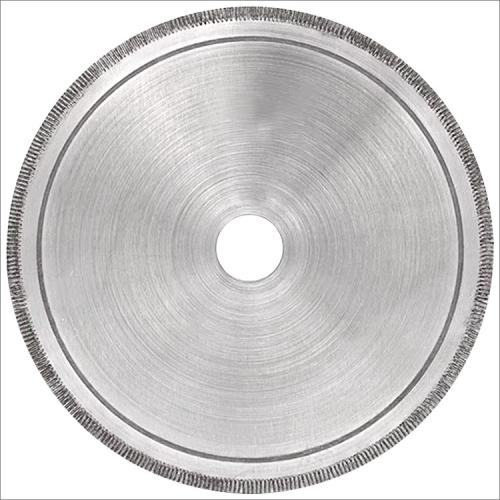

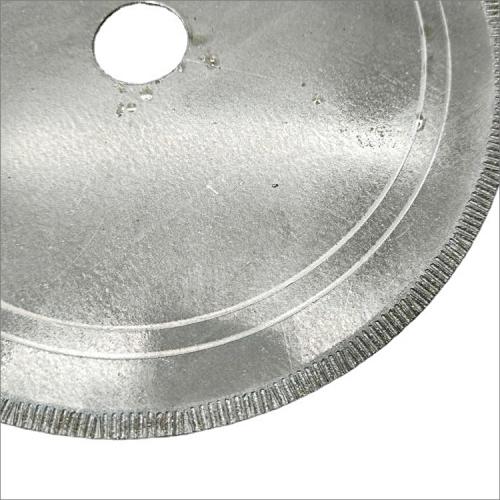

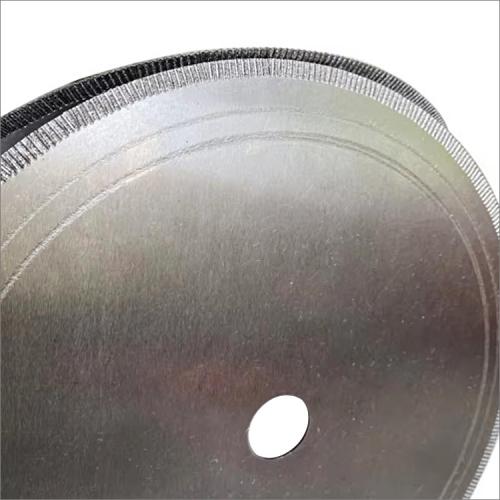

Ultra-thin straight teeth diamond circular saw blades multi-purpose cutting discs

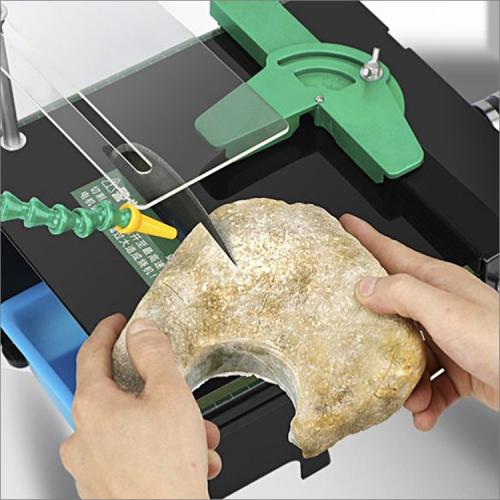

This ultra-thin continuous rim type diamond saw blades with straight tooth are used for cutting a wide range of materials such as soft stone, marble, agate, jade, gemstone, glass, crystal, jewelry, corundum, charcoal, etc., exclusively designed for processing high value materials.


The blades are manufactured by crimping synthetic diamonds directly into the edge of the saw blade, perfect for hobbyists and DIY jewelry makers seeking a reliable cutting solution.


The water is required to cool and lubricate when cutting is processing.


Bore size: 12.7mm, 16mm, 20mm, 25.4mm, 32mm, 50mm.


Code No.

Diameter

Thickness

DSB-EL31-100 100mm 0.2/0.4mm
DSB-EL31-110 110mm 0.2/0.3mm
DSB-EL31-120 120mm 0.3/0.4mm
DSB-EL31-150 150mm 0.4/0.5mm
DSB-EL31-180 180mm 0.6/0.8mm
DSB-EL31-200 200mm 0.8/1.0mm
DSB-EL31-250 250mm 1.0/1.2mm
DSB-EL31-300 300mm 1.2/1.5mm
DSB-EL31-350 350mm 1.2/1.5mm
DSB-EL31-400 400mm 1.2/1.5mm




The above specifications & photos are for reference, other specifications may be available as per demand.
