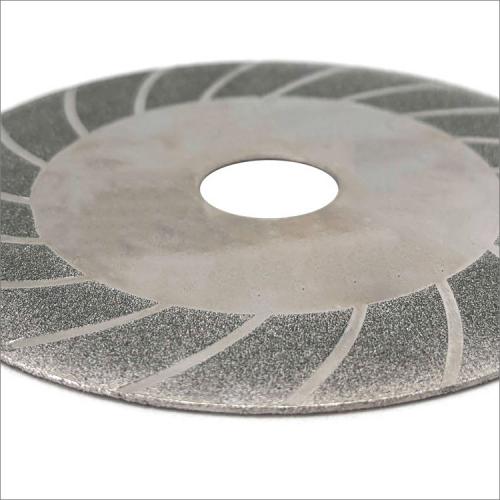

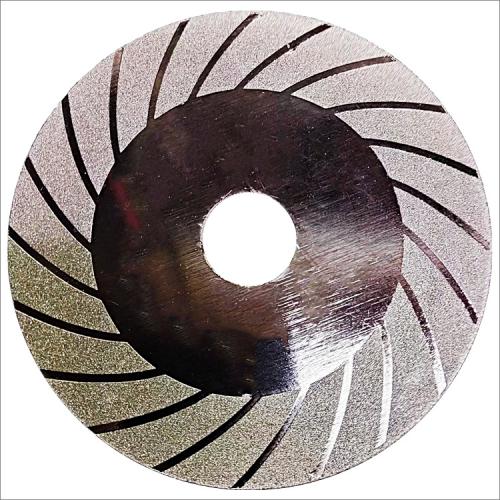

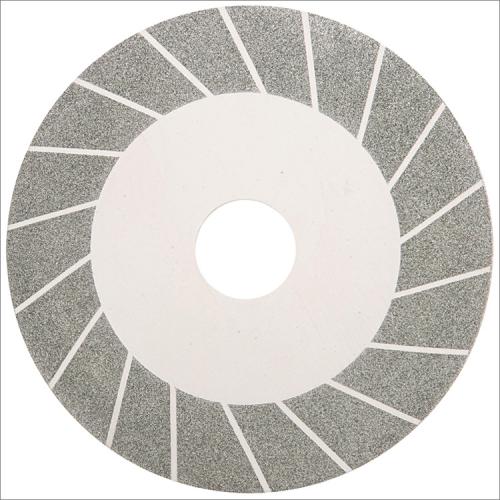

Multipurpose electroplated diamond cutting grinding disc for soft stone porcelain tile glass Jade plastic
Diameter: 4"-10"
Diamond grit: #40-#120
Diamond working width: 10mm, 15mm, 20mm
Bore size: 22.23mm, with flange M14, 5/8"-11
Blade type: turbo shape
Multipurpose electroplated diamond cutting grinding disc for soft stone porcelain tile glass Jade plastic

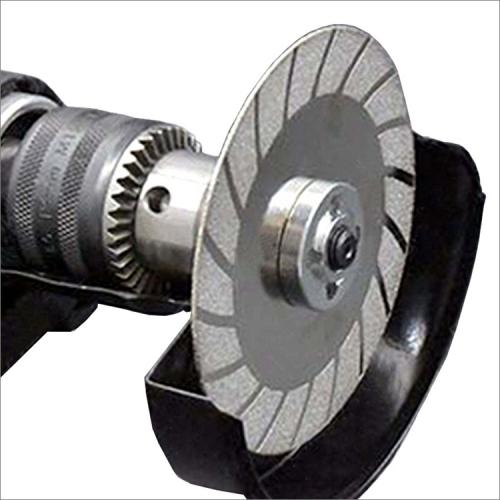

This turbo type electroplated diamond saw blades are used on angle
grinders for sharp cutting or grinding a wide
range of materials such as soft
stone, marble, ceramic, porcelain tiles, glass, fiberglass, plastic
pipes, synthetic composites with high
working efficiency, less chipping, low noise and flexible usage.

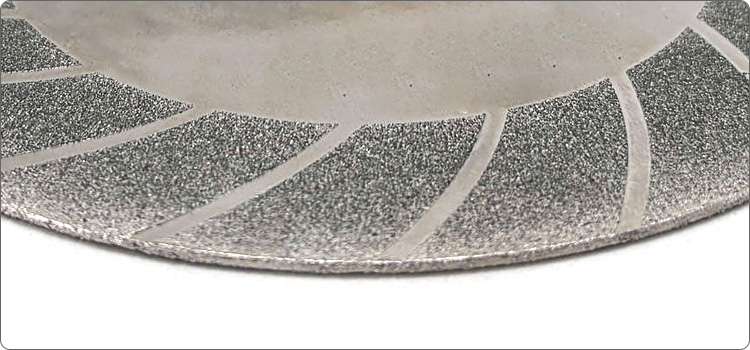

Electroplated technology keeps all diamond grain attached to the double sides of steel core with high density, strong diamond coating and high diamond exposure rate provide smooth & accurate cutting with high efficient working performance.
Wet or dry use, wet working may prolong the working life.
Other diamond grit from #50 to #150 is possible available.
Coating width: 15mm, 20mm, 25mm or as per demand.
Bore size: 20/22.23mm.
|
Code No. |
Diameter |
Diamond grit |
| DSB-EL03-100 |
100mm(4") |
#40 |
| DSB-EL03-115 |
115mm(4.5") |
#40 |
| DSB-EL03-125 |
125mm(5") |
#40 |
| DSB-EL03-150 |
150mm(6") |
#40 |
| DSB-EL03-180 |
180mm(7") |
#40 |
The above specifications & photos are for reference, other specifications may be available as per demand.
