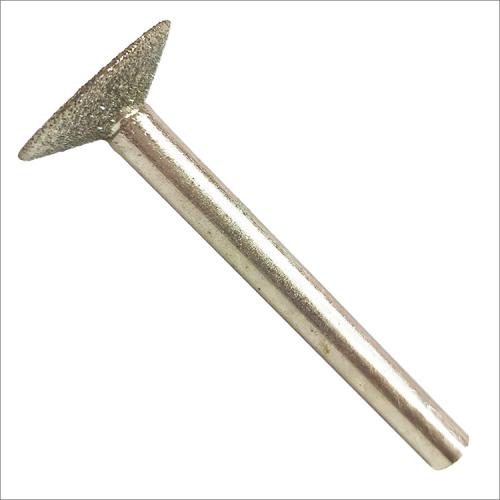

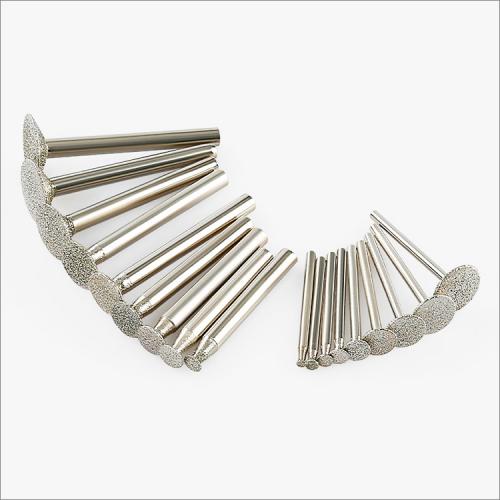

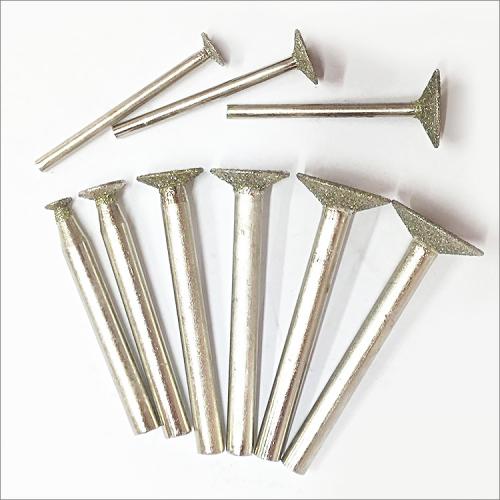

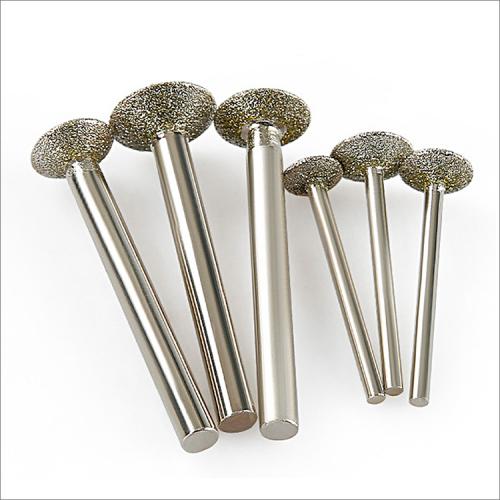

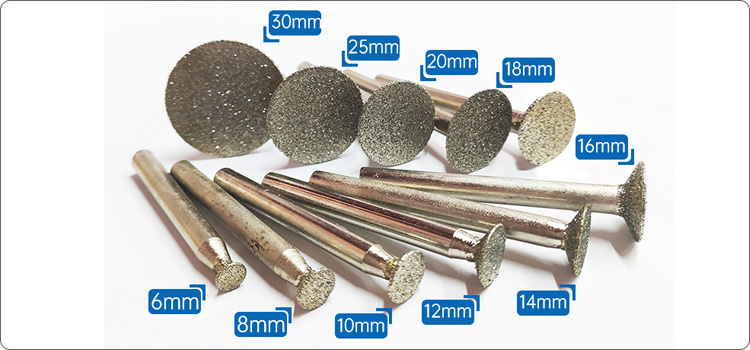

Nail head shape electroplated diamond grinding heads lapidary carving bits rotary tool diamond mounted points

Item No. : DGH-EL08
Diameter: 0.6mm-35mm
Shank diameter: 2.35mm, 3mm or 6mm
Regular total length: 40-60mm
Diamond grit: #60, #80, #120, #150, #180, #240, #320
Inquiry Now
Detailed Description

Nail head shape electroplated diamond grinding heads lapidary carving bits rotary tool diamond mounted points

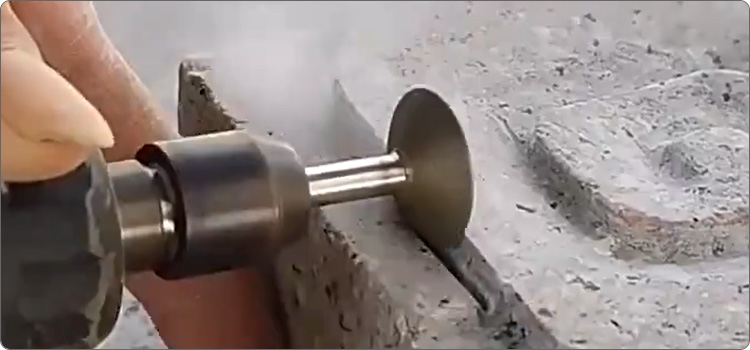

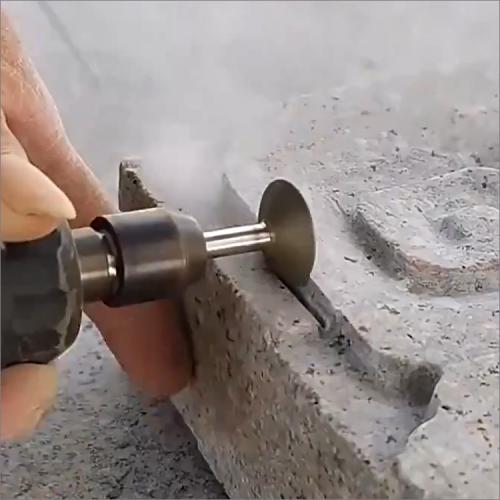

These nail head shape electroplated diamond grinding heads are used for carving grinding stone, concrete, ceramic, glass, jewelry, jade, gemstone, bone, alloy and many other abrasive or hard materials, they are suitable for grinding needs at different angles and depths.


These grinding bits can be installed on the electric grinder, hanging mill and hand electric drill, but never use drills while machine is in hammer action.


Please use water for coolant.

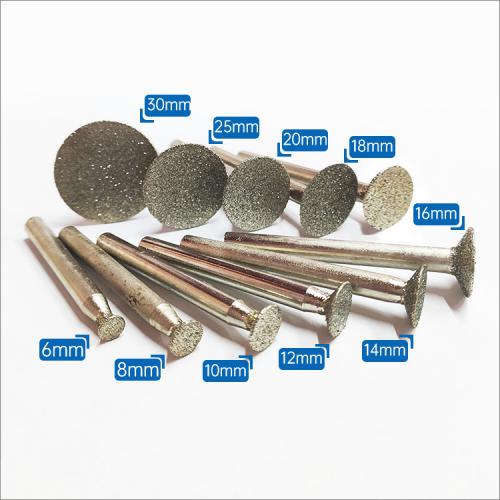

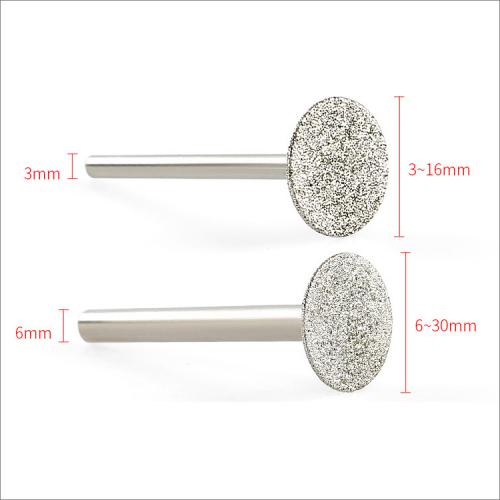

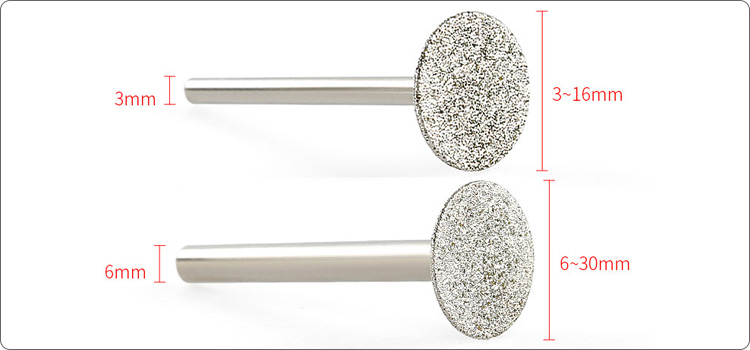

Diameter: 0.6mm-35mm.

Shank diameter: 2.35mm, 3mm or 6mm.

Regular total length: 40-60mm.

Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.


Code No.

Diameter

Diamond Grit

DGH-EL08-006 0.6mm #60 - #320
DGH-EL08-008 0.8mm #60 - #320
DGH-EL08-010 1.0mm #60 - #320
DGH-EL08-012 1.2mm #60 - #320
DGH-EL08-015 1.5mm #60 - #320
DGH-EL08-018 1.8mm #60 - #320
DGH-EL08-020 2.0mm #60 - #320
DGH-EL08-025 2.5mm #60 - #320
DGH-EL08-030 3.0mm #60 - #320
DGH-EL08-040 4.0mm #60 - #320
DGH-EL08-050 5.0mm #60 - #320
DGH-EL08-060 6.0mm #60 - #320
DGH-EL08-080 8.0mm #60 - #320
DGH-EL08-100 10mm #60 - #320
DGH-EL08-120 12mm #60 - #320
DGH-EL08-140 14mm #60 - #320
DGH-EL08-160 16mm #60 - #320
DGH-EL08-180 18mm #60 - #320
DGH-EL08-200 20mm #60 - #320
DGH-EL08-250 25mm #60 - #320
DGH-EL08-300 30mm #60 - #320
DGH-EL08-350 35mm #60 - #320





The above specifications & photos are for reference, other specifications may be available as per demand.
