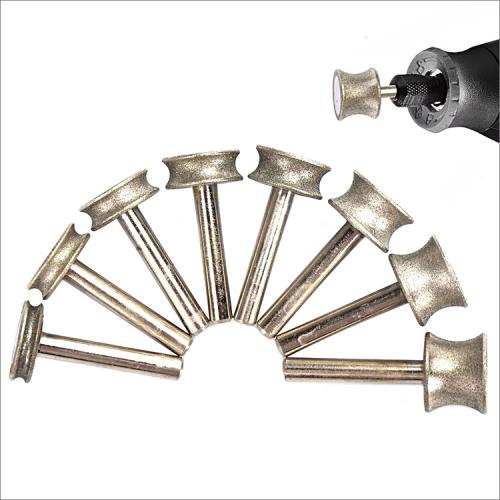

20mm concave diamond grinding heads sharpening wheels thickness 2-12mm for stone glass jade ceramic
Diameter: 20mm
Thickness: 2-12mm
Shank diameter: 6mm
Diamond grit: #150, #400
20mm concave diamond grinding heads sharpening wheels thickness 2-12mm for stone glass jade ceramic

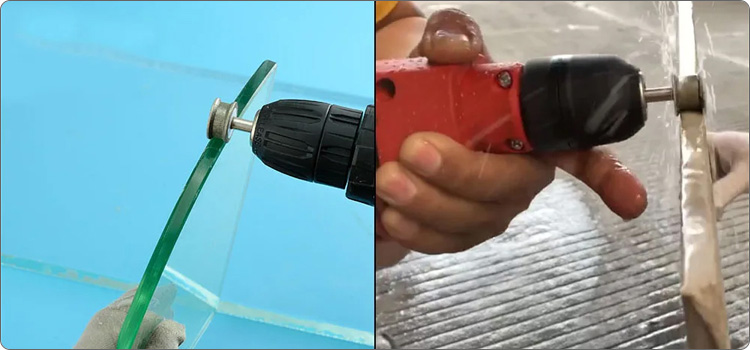

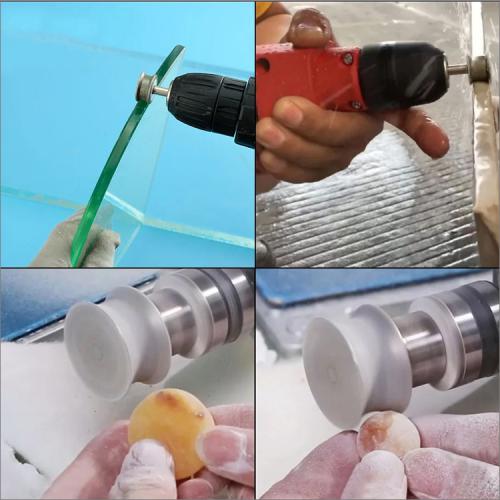

These concave electroplated diamond grinding wheels are used for
sculpturing, dressing, precision grinding of various abrasive
materials such as ceramics, glass, precious stones, alloys, as well
as internal grinding of cemented carbides, meeting the processing
needs in different scenarios.
They are made of high-quality emery material, featuring high hardness and strong durability, and not easy to wear during use and can maintain good performance for a long time.

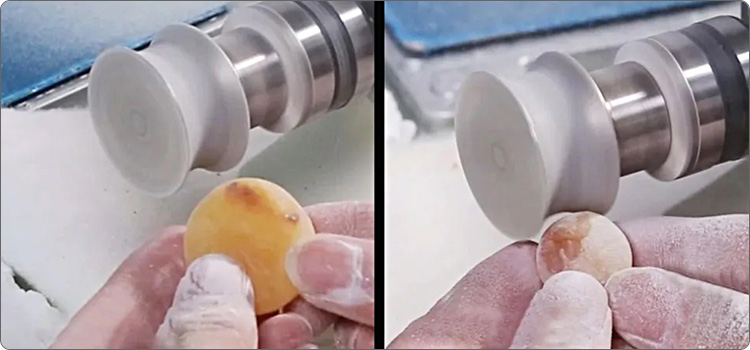

During the sculpturing operation, it is necessary to use cold water to cool the workpiece and the grinding head, and the cooling water must not be interrupted for a moment during the entire polishing process to ensure the operation effect and equipment life.
Diameter: 20mm.
Shank diameter: 6mm.
Diamond grit: #150, #400, other grit is possible available.
|

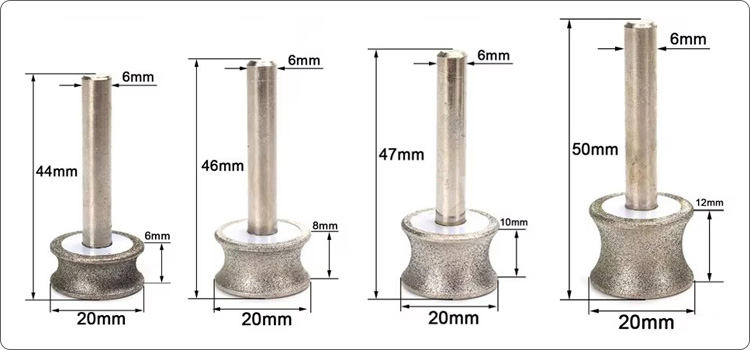

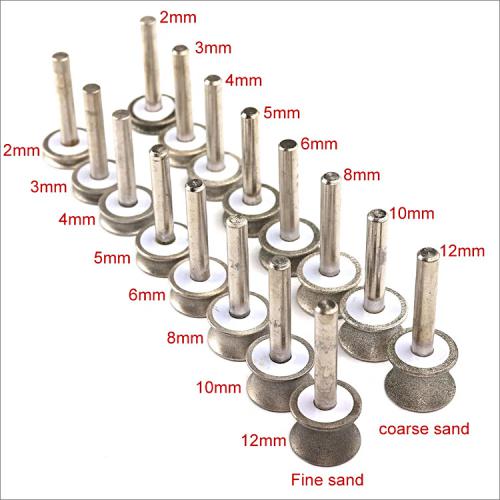

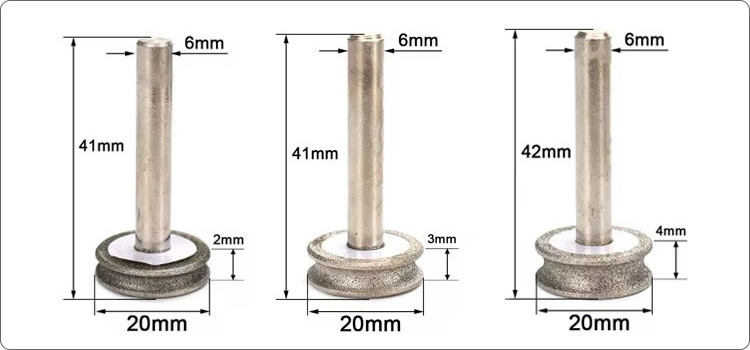

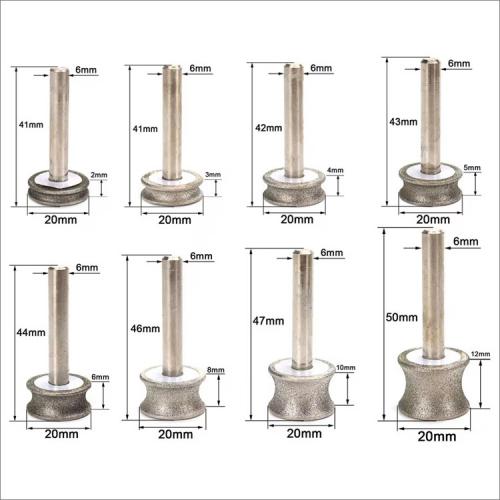

Code No. |
Thickness |
Diamond Grit |
| DGH-EL04-02 | 2mm | #150/#400 |
| DGH-EL04-03 | 3mm | #150/#400 |
| DGH-EL04-04 | 4mm | #150/#400 |
| DGH-EL04-05 | 5mm | #150/#400 |
| DGH-EL04-06 | 6mm | #150/#400 |
| DGH-EL04-08 | 8mm | #150/#400 |
| DGH-EL04-10 | 10mm | #150/#400 |
| DGH-EL04-12 | 12mm | #150/#400 |
The above specifications & photos are for reference, other specifications may be available as per demand.
