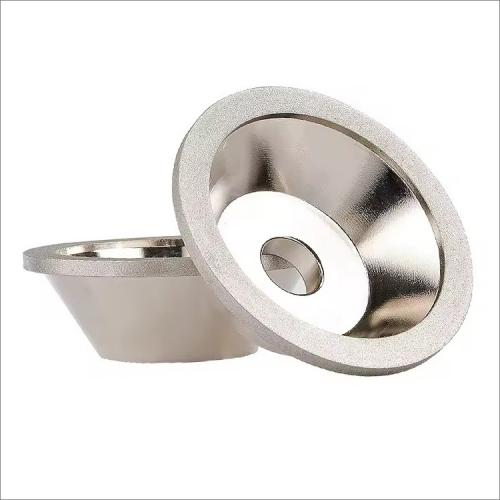

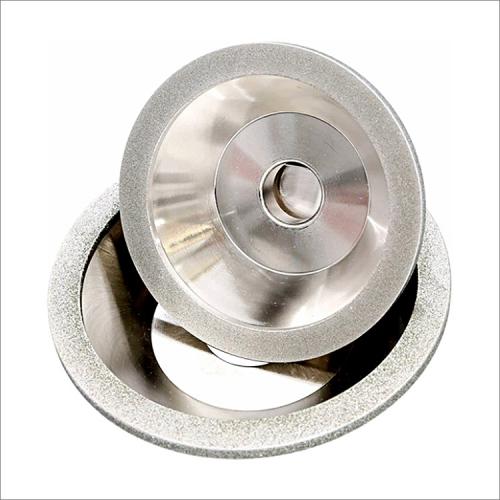

Electroplated diamond grinding cup wheels bowl shape sanding polishing milling discs for tungsten carbide metal
Diameter: 100mm, 125mm, 150mm.
Steel thickness: 35mm.
Diamond coated width: 10mm.
Diamond coated height: 5mm or 10mm.
Diamond grit: #100 - #600
Bore size: 20mm(100mm), 32mm(125mm/150mm)
Wet or dry use
Electroplated diamond grinding cup wheels bowl shape sanding polishing milling discs for tungsten carbide metal
This electroplated type diamond cup
wheels bowl shape sanding polishing milling discs are used on angle grinders
or grinding machines for grinding sanding milling polishing sharpening
a wide range of materials such as tungsten steel, metal, carbide,
alloy, glass,
carbon fibre, marble, quartz, soft stone, jade, ceramic, porcelain
tile, etc.
This high quality abrasive delivers smooth and consistent material removal, ideal for precision grinding of hard materials, works with most sharpening machines for tungsten carbide, and the bowl shaped design enhances grinding efficiency on curved surfaces, also the electroplated diamond ensures long-lasting durability and sharpness.
Wet or dry use, wet working may prolong the working life.

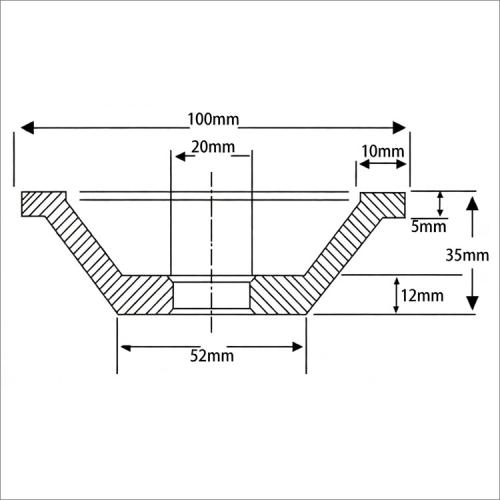

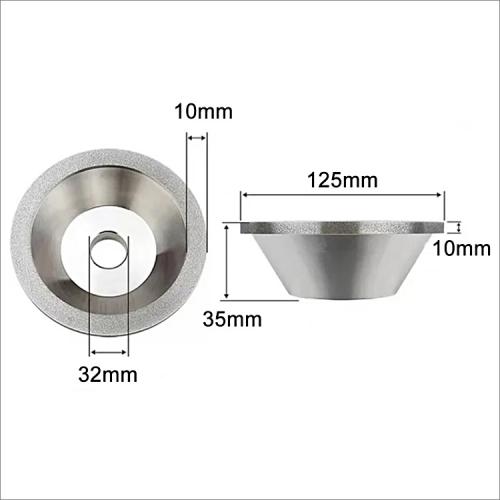

Diameter: 100mm, 125mm, 150mm.
Steel thickness: 35mm.
Diamond coated width: 10mm.
Diamond coated height: 5mm or 10mm.

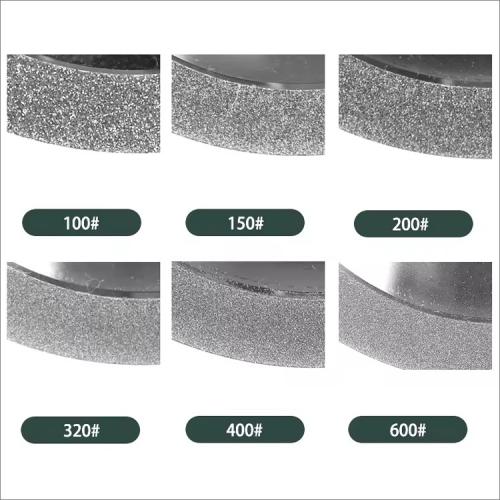

Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600, the other grit is possible available.
Bore size: 20mm(100mm), 32mm(125mm/150mm) (other bore size is possible available).
|
Code No. |
Diameter |
Diamond Grit |
| DGCW-EL06-100 | (4")100mm | #80 - #600 |
| DGCW-EL06-125 | (5")125mm | #80 - #600 |
| DGCW-EL06-150 | (6")150mm | #80 - #600 |
The above specifications & photos are for reference, other specifications may be available as per demand.
