Arc R0.75 R1.0 R1.5 R2.0 R2.5 R3.0 electroplated diamond grinding wheels alloy tap slotting sharpening discs
Diameter: 100mm, 125mm, 150mm
Arc: R0.75 R1.0 R1.5 R2.0 R2.5 R3.0
Diamond coated height: 10mm
Diamond grit: #100 - #600
Bore size: 20mm, 32mm
Wet or dry use

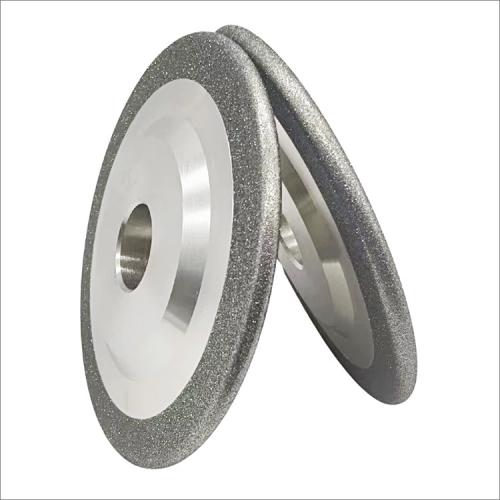

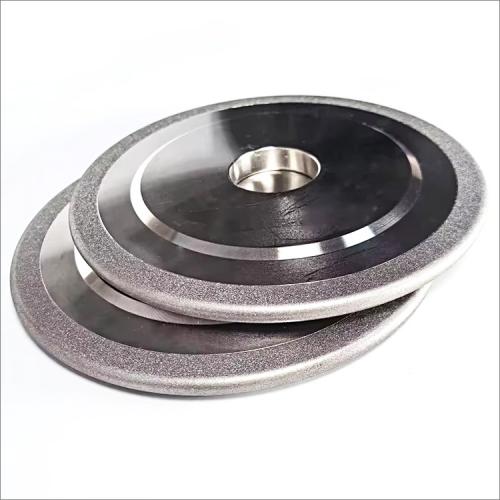

Arc R0.75 R1.0 R1.5 R2.0 R2.5 R3.0 electroplated diamond grinding wheels alloy tap slotting sharpening discs

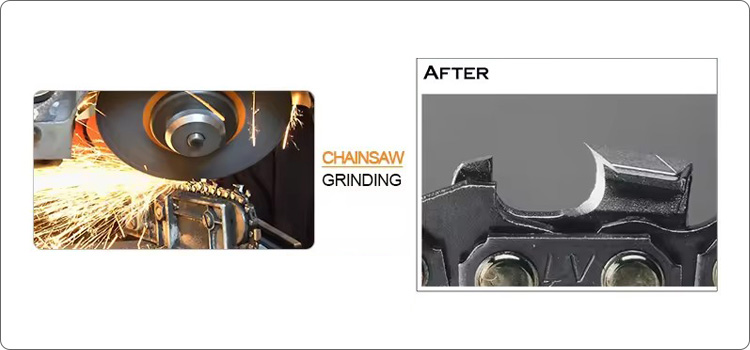

These 100mm 125mm 150mm semi-circular arc R0.75 R1.0 R1.5 R2.0 R2.5 R3.0 electroplated diamond grinding wheels are used for high-precision and high-efficiency machining of hard and tough metal materials such hardened steel, stainless steel, high speed steel, high carbon steel, alloy, and most ferrous metal materials, also suitable for glass, tiles, precious stones, magnetic materials, ceramics, molds and other materials grinding slotting.
The electroplating process can accurately control the hardness and grain size of the grinding wheel, thus significantly improving the dimensional accuracy and surface smoothness of the workpiece. And the abrasive particles are exposed and sharp, with strong cutting ability and the ability to quickly remove materials.
Suitable for use with bench grinders, angle grinders, and electric drills.
Wet or dry use, wet working may prolong the working life.

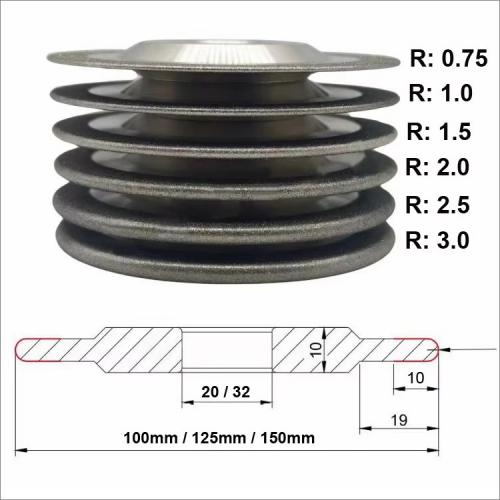

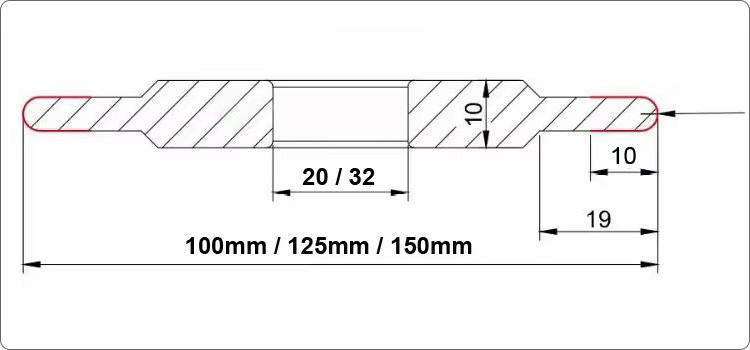

Diameter: 100mm, 125mm, 150mm.

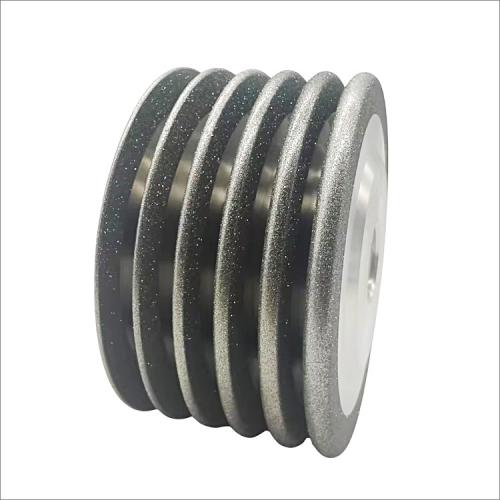

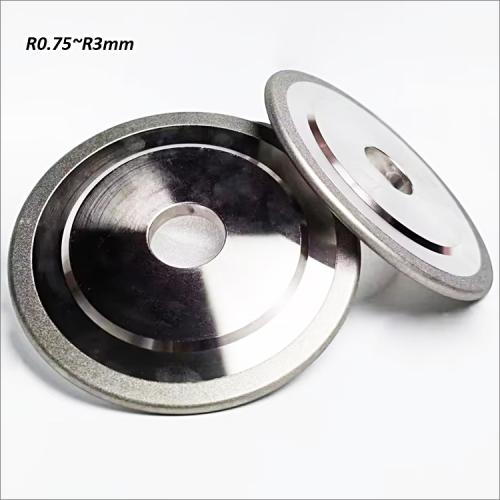

Arc: R0.75 R1.0 R1.5 R2.0 R2.5 R3.0 .
Diamond coated width: 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600, the other grit is possible available.
Bore size: 20mm(100mm), 32mm(125mm/150mm).
|
Code No. |
Diameter |
Diamond Grit |
| DGW-EL10-100 | (4")100mm | #80 - #600 |
| DGW-EL10-125 | (5")125mm | #80 - #600 |
| DGW-EL10-150 | (6")150mm | #80 - #600 |
The above specifications & photos are for reference, other specifications may be available as per demand.
