Electroplated single bevel angle diamond grinding wheels for tungsten steel carbide CBN milling cutters
Diameter: 78mm, 100mm, 125mm, 150mm
Angle degree: 45 degree, 60 degree, 80 degree
Diamond coated height: 10mm
Diamond grit: #100 - #600
Bore size: 12.7mm, 20mm, 32mm
Wet or dry use

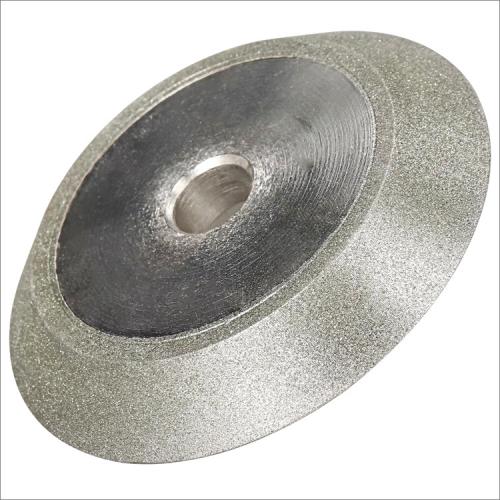

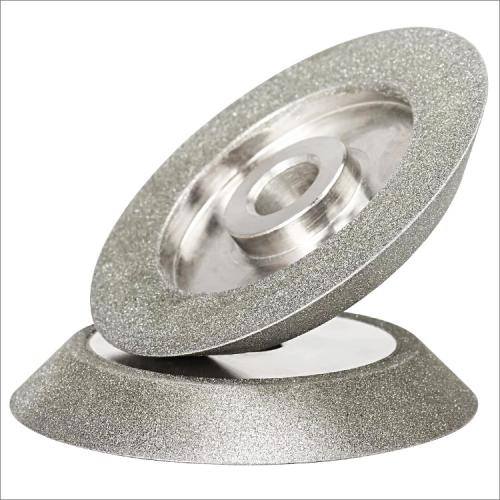

Electroplated single bevel angle diamond grinding wheels for tungsten steel carbide CBN milling cutters

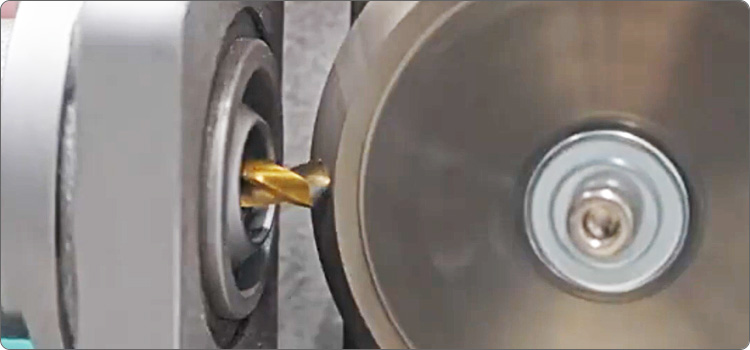

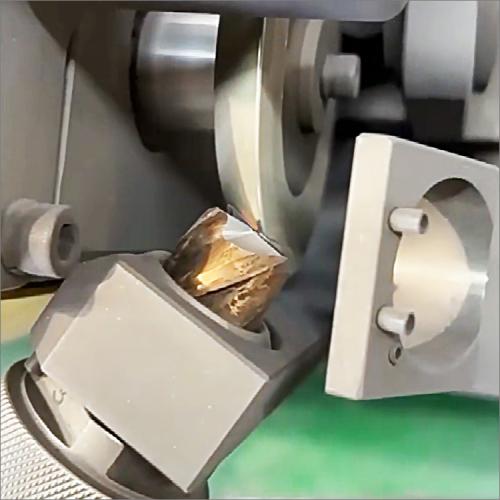

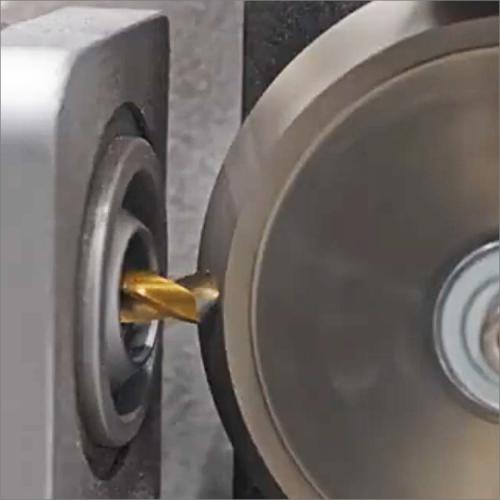

These single bevel angle electroplated diamond wheels are mainly used for grinding sharpening various materials with high temperature hardness and low thermal conductivity, such as tungsten steel milling cutters, high-speed steel, tool steel, high alloy quenched steel, chromium steel, nickel alloy steel, powder metallurgy diamond, and high-temperature alloys, also suitable for glass, tiles, precious stones, magnetic materials, ceramics, molds and other materials edge grinding and chamfering.
The wheels deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.
Suitable for use with bench grinders, angle grinders, and electric drills.
Wet or dry use, wet working may prolong the working life.

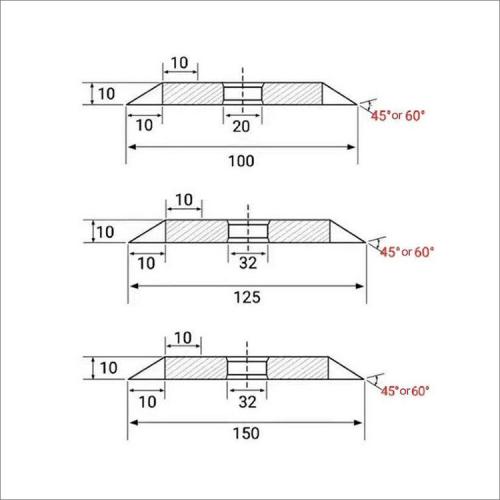

Diameter: 78mm, 100mm, 125mm, 150mm.

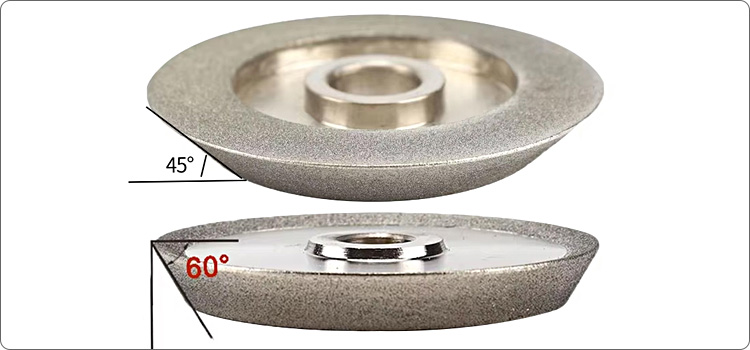

Angle degree: 45 degree, 60 degree, 80 degree (other degree is possible available).
Diamond coated height: 10mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600, the other grit is possible available.
Bore size: 12.7mm(78mm), 20mm(100mm), 32mm(125mm/150mm).
|
Code No. |
Diameter |
Diamond Grit |
| DGW-EL08-078 | (3")78mm | #80 - #600 |
| DGW-EL08-100 | (4")100mm | #80 - #600 |
| DGW-EL08-125 | (5")125mm | #80 - #600 |
| DGW-EL08-150 | (6")150mm | #80 - #600 |
The above specifications & photos are for reference, other specifications may be available as per demand.
