Two sides coated diamond electroplated grinding wheels polishing sharpening discs
Diameter: 3" - 8"
Diamond coated width: 20mm
Diamond grit: #45 - #1200
Bore size: 12.7mm/16mm, 10mm/20mm, 32mm
Wet or dry use

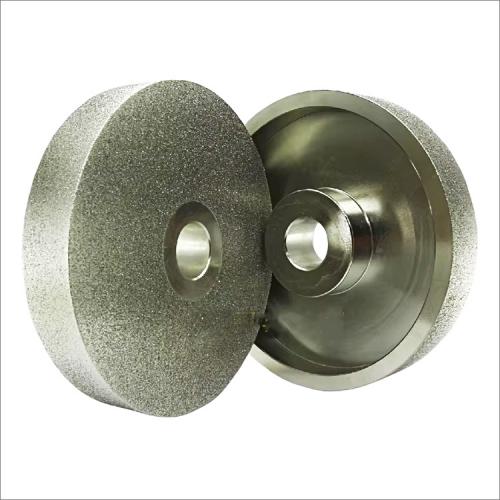

Two sides coated diamond electroplated grinding wheels polishing sharpening discs
These two sides coated diamond electroplated grinding wheels are mainly
used for grinding hard alloy measuring tools, foot steel, high-speed
steel, alloy steel, glass, gemstones, jadeite amber beeswax raw
stones, magnetic materials, ceramics, molds, etc.
The high quality abrasives deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.
Wet or dry use, wet working may prolong the working life.
Diameter: 78mm, 100mm, 125mm, 150mm, 180mm, 200mm.
Diamond coated width: 20mm.
Diamond grit: regular grit #100, #120, #150, #200, #240, #320, #400, #600, the other grit is possible available.
Bore size: 12.7mm/16mm(78mm), 10 or 20mm(100mm), 32mm(125mm/150/180/200mm).
|
Code No. |
Diameter |
Diamond Grit |
| DGW-EL11-078 | (3")78mm | #45 - #1200 |
| DGW-EL11-100 | (4")100mm | #45 - #1200 |
| DGW-EL11-125 | (5")125mm | #45 - #1200 |
| DGW-EL11-150 | (6")150mm | #45 - #1200 |
| DGW-EL11-180 | (7")180mm | #45 - #1200 |
| DGW-EL11-200 | (8")200mm | #45 - #1200 |
The above specifications & photos are for reference, other specifications may be available as per demand.
