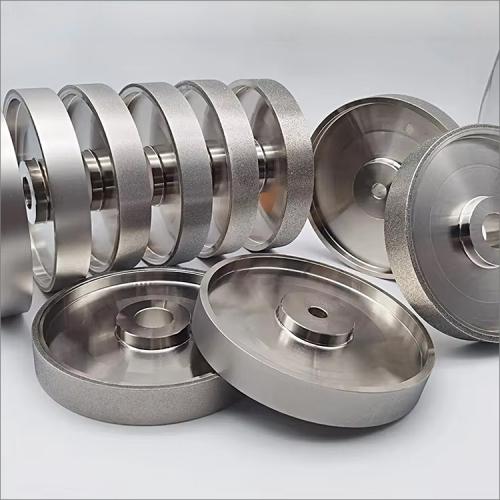

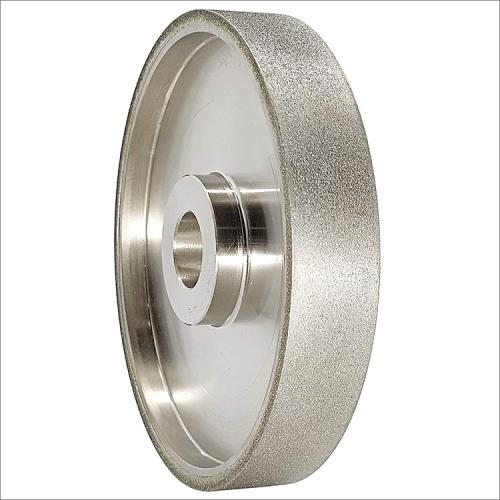

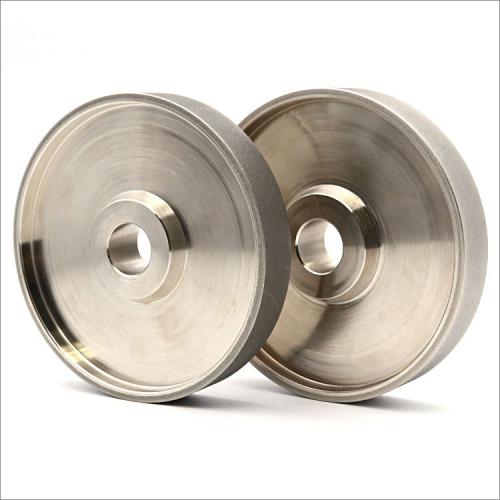

Electroplated diamond parallel grinding wheels sharpening discs for tungsten steel alloy glass

Item No. : DGW-EL13
Diameter: 100mm, 150mm, 200mm
Diamond coated thickness: 20mm, 25mm, 30mm, 35mm, 38mm
Diamond grit: #80 - #800
Bore size: 20mm, 25.4mm
Wet or dry use
Inquiry Now
Detailed Description

Electroplated diamond parallel grinding wheels polishing sharpening discs for tungsten steel alloy glass


These electroplated diamond parallel grinding wheels are mainly used for grinding hard alloy measuring tools, foot steel, high-speed steel, alloy steel, glass, gemstones, jadeite amber beeswax raw stones, magnetic materials, ceramics, molds, etc.



The high quality abrasives deliver smooth and consistent material removal, the electroplated premium quality diamond sand is evenly attached to the steel body and wear-resistant, not easy to drop, ensure long-lasting durability and sharpness.



Wet or dry use, wet working may prolong the working life.



Diameter: 100mm, 150mm, 200mm.

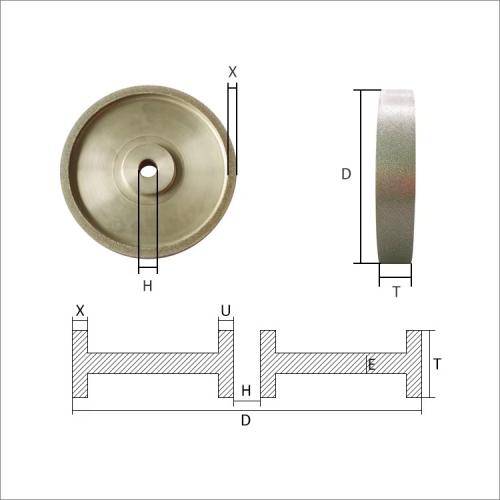

Diamond coated thickness(T): 20mm, 25mm, 30mm, 35mm, 38mm(or as per demand).

Diamond grit: #80, #100, #120, #150, #180, #240, #320, #500, #600, #800, other grit is possible available.

Bore size: 20mm, 25.4mm(or as per demand).


Code No.

Diameter

Diamond Grit

DGW-EL13-100 (4")100mm #80 - #800
DGW-EL13-150 (6")150mm #80 - #800
DGW-EL13-200 (8")200mm #80 - #800


The above specifications & photos are for reference, other specifications may be available as per demand.
