Electroplated diamond grinding cup wheels bowl shape discs
Diameter: 4"-5"
Diamond grit: #40, #80, #120, #150
Thickness: 1.2mm
Bore size: 20mm, 22.23mm
Wet or dry use

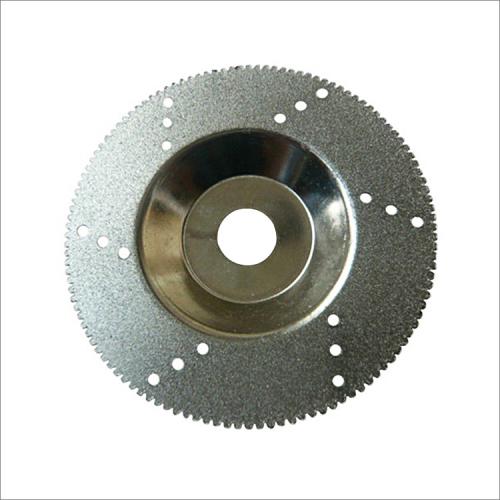

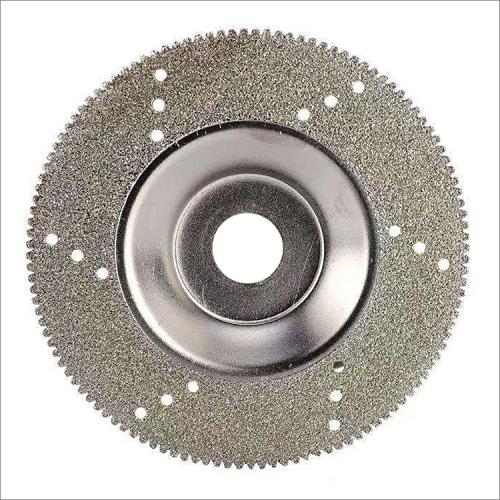

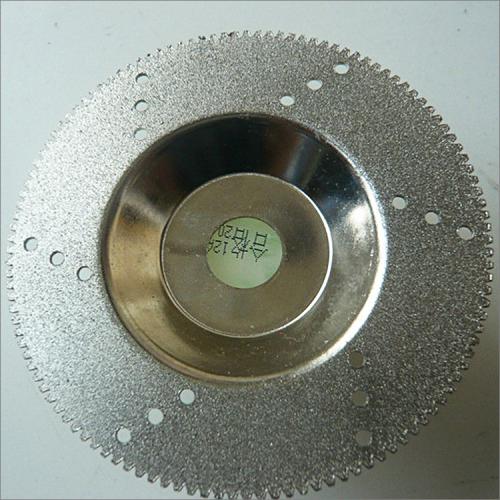

Electroplated diamond grinding cup wheels bowl shape discs
This edge and one side electroplated type diamond cup

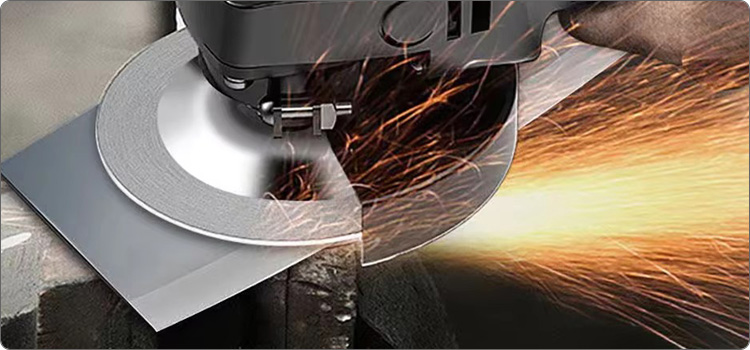

wheels bowl shape grinding discs are used on angle grinders for grinding polishing sharpening
a wide range of materials such as metal, tungsten carbide, glass,
carbon fibre, marble, quartz, soft stone, jade, ceramic, porcelain
tile, etc.
Wet or dry use, wet working may prolong the working life.
Diameter: 100mm, 115mm, 125mm.
Steel thickness: 1.2mm.
Diamond grit: regular grit #40(rough), #80(medium), #150(smooth), the other grit is possible available.
Bore size: 20mm, 22.23mm (other bore size is possible available).
|
Code No. |
Diameter |
Diamond Grit |
| DGCW-EL04-100 | (4")100mm | #40, #80, #150 |
| DGCW-EL04-115 | (4.5")115mm | #40, #80, #150 |
| DGCW-EL04-125 | (5")125mm | #40, #80, #150 |
The above specifications & photos are for reference, other specifications may be available as per demand.
