4 inches 100mm T shank electroplated diamond jig saw blade for cutting granite marble ceramic tile plastic

Item No. : DJSD-EL01

Shank: T shank
Shank length: 76mm, 100mm
Diamond working length: 55mm, 76mm.
Diamond teeth type: bevel, flat, round.
Shank width: 8.5mm.
Shank thickness: 2mm, 3mm.
Diamond grit: #40, #50, #60, #80

Inquiry Now
Detailed Description

4 inches 100mm T shank electroplated diamond jig saw blade for cutting granite marble ceramic tile plastic

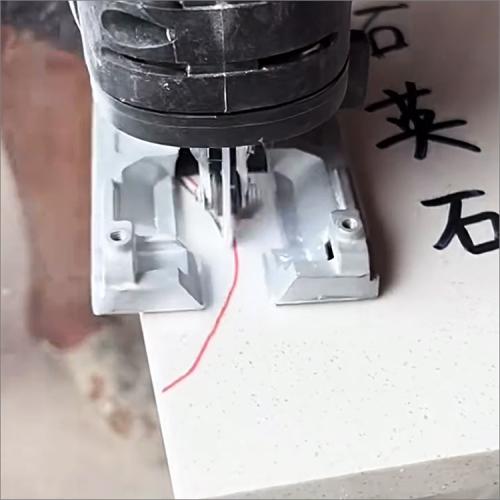

The 4-inch 100mm electroplated diamond jig saw blades are designed for straight, curved, square, circular or S-shape cutting fiberglass, soft stone, marble, quartz stone, rock, glass, carbon, plastic, tiles, ceramic tile, brick, carbon, graphite, acrylics, laminates, kevlar, fibre-cement, polycarbonate and some other abrasive, brittle or hard materials.


Cutting too thick stone and very large angle cuts are not recommended.


Wet or dry use, wet working may prolong the working life.

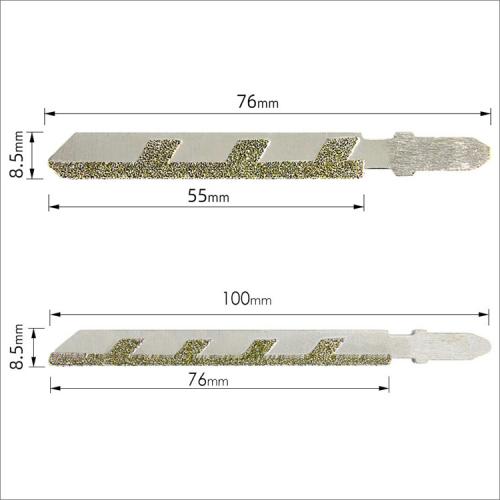

Shank: T shank

Shank length: 76mm, 100mm

Diamond working length: 55mm, 76mm.

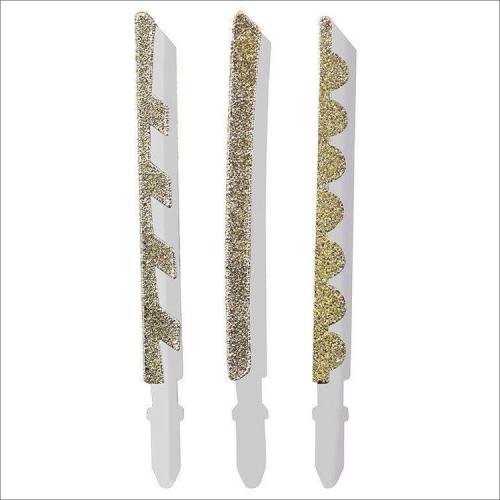

Diamond teeth type: bevel, flat, round.

Shank width: 8.5mm.

Shank thickness: 2mm, 3mm.

Diamond grit: #40, #50, #60, #80, other grit is possible available.


Code No.

Length

Teeth type

DJSD-EL01-076B 76mm Bevel
DJSD-EL01-076F 76mm Flat
DJSD-EL01-076R 76mm Round
DJSD-EL01-100B 100mm Bevel
DJSD-EL01-100F 100mm Flat
DJSD-EL01-100R 100mm Round


The above specifications & photos are for reference, other specifications may be available as per demand.
