100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic
Diameter: 4", 4.5", 5"
Diamond grit: #60, #120, #200, #400
Working layer width: 20mm
Adapter: plastic or aluminum
Bore size: 16mm, 22.23mm
100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic

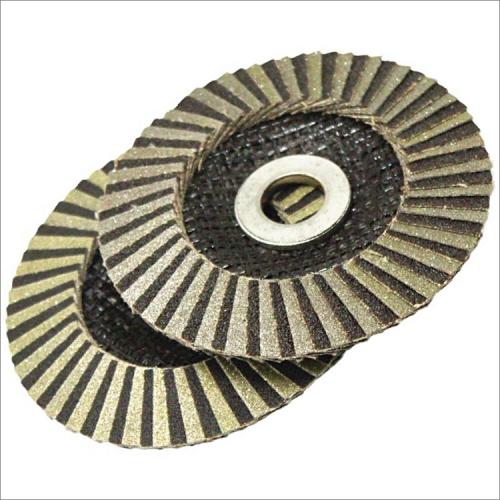

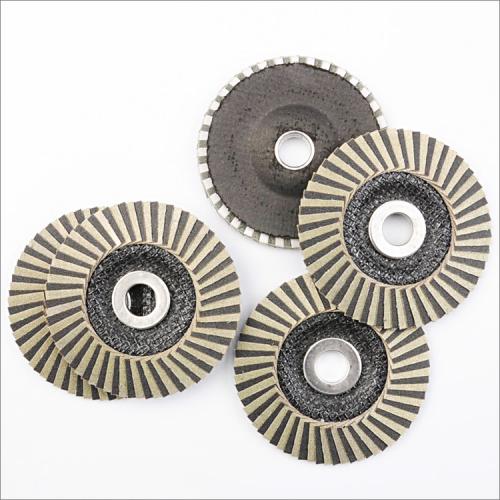

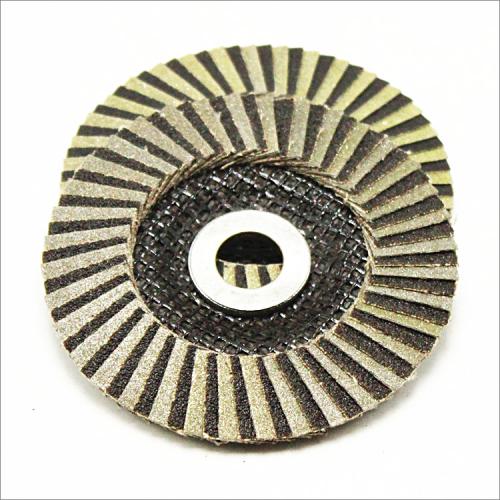

These electroplated diamond flap discs are made of
metal bonded diamond flaps combined with silicon carbide flaps, this
results in fast material removal with a soft and smooth feel. They
are usually used on polishers or angle grinders for sharp
chamfering, beveling, edge surface grinding a wide range of
materials such as concrete, stone, granite, marble, quartz, ceramic,
porcelain tiles, glass, stainless steel, metals, etc.
Wet or dry use, wet working may prolong the working life.
Diamond grit: #60/#80, #120, #200, #400, other diamond grit is possible available.
Working layer width: 20mm.
Adapter: plastic or aluminum.
Bore size: 16mm, 22.23mm.
|
Code No. |
Diameter |
Diamond grit |
| DFD-EL11-100 |
100mm(4") |
#60/#80, #120, #200, #400 |
| DFD-EL11-115 |
115mm(4.5") |
#60/#80, #120, #200, #400 |
| DFD-EL11-125 |
125mm(5") |
#60/#80, #120, #200, #400 |
The above specifications & photos are for reference, other specifications may be available as per demand.
