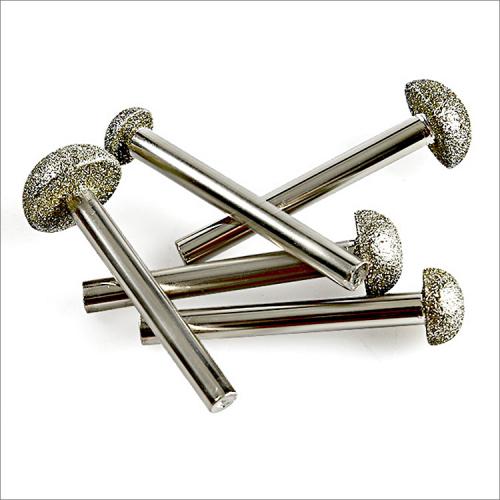

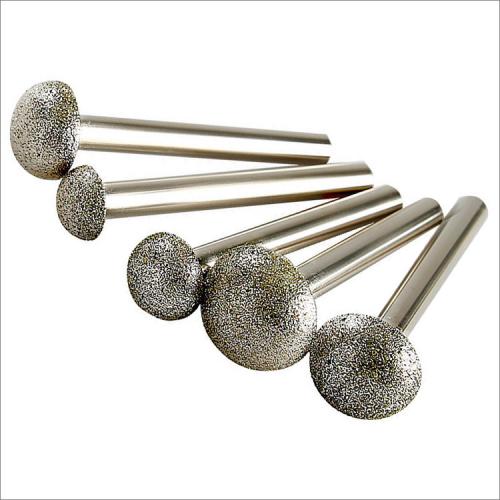

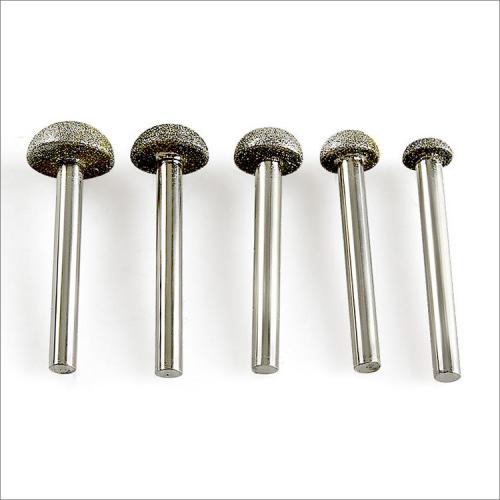

Mushroom shape diamond grinding heads stone carving bits diamond mounted points rotary tool

Item No. : DGH-EL02
Ball diameter: 12mm-20mm.
Shank diameter: 6mm.
Regular total length: 40-60mm.
Diamond grit: #60, #80, #120, #150, #180, #240, #320
Inquiry Now
Detailed Description

Mushroom shape diamond grinding heads stone carving bits diamond mounted points rotary tool


These mushroom shape electroplated diamond grinding heads are high-performance tools designed for carving grinding lettering polishing stone, marble, concrete, ceramic, glass, jewelry, jade, gemstone, bone, aluminum, alloy steel, stainless steel, and many other abrasive or hard materials.

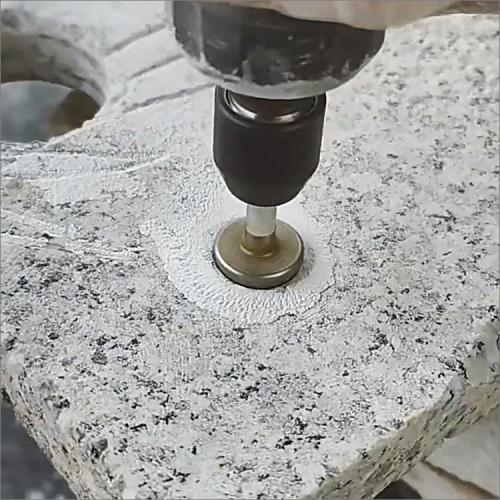

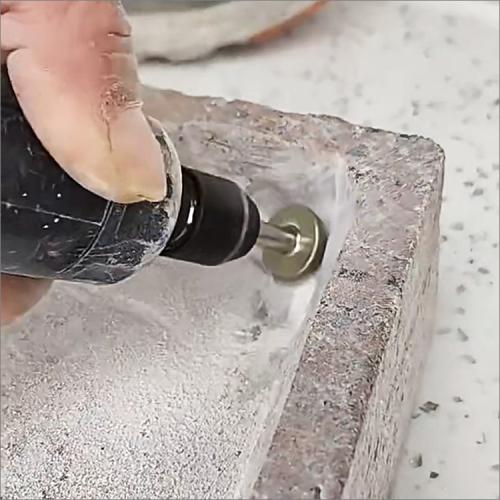

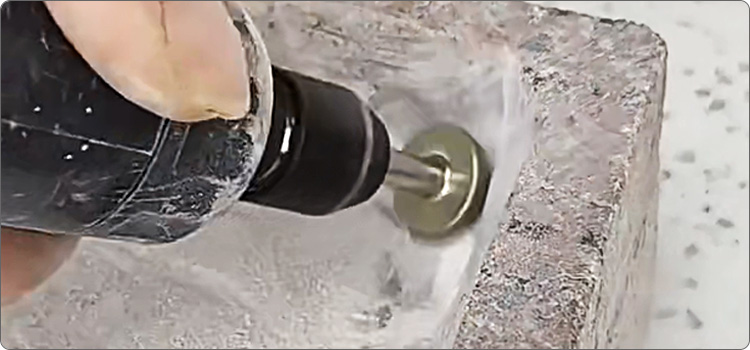

These grinding bits can be installed on the crane grinders, electric grinder, engraving machines, hanging mill and hand electric drill, but never use drills while machine is in hammer action.


Please use water for coolant.


Ball diameter: 12mm-20mm.

Shank diameter: 6mm.

Regular total length: 40-60mm.

Diamond grit: #60, #80, #120, #150, #180, #240, #320, other grit is possible available.

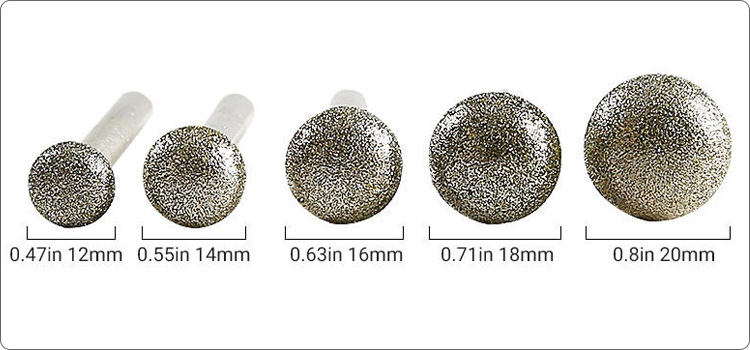

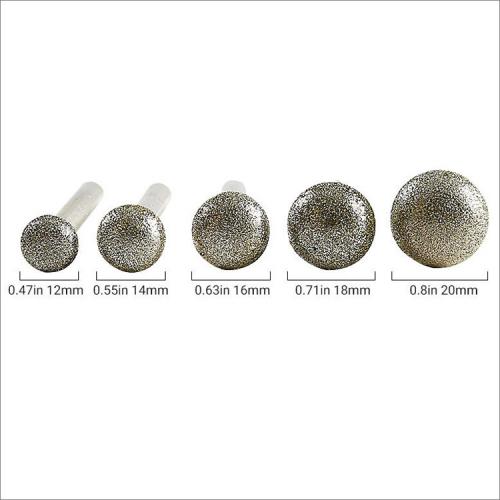

Code No.

Diameter

Diamond Grit

DGH-EL02-12 12mm #60 - #320
DGH-EL02-14 14mm #60 - #320
DGH-EL02-16 16mm #60 - #320
DGH-EL02-18 18mm #60 - #320
DGH-EL02-20 20mm #60 - #320




The above specifications & photos are for reference, other specifications may be available as per demand.
