100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic
Diameter: 4", 4.5", 5"
Diamond grit: #60, #120, #200, #400
Working layer width: 20mm
Adapter: plastic or aluminum
Bore size: 22.23mm, M14, 5/8"-11

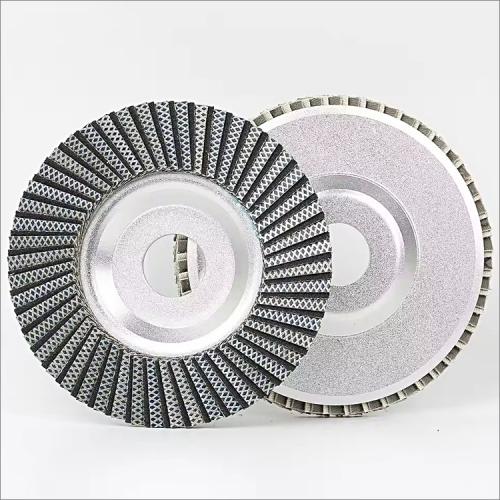

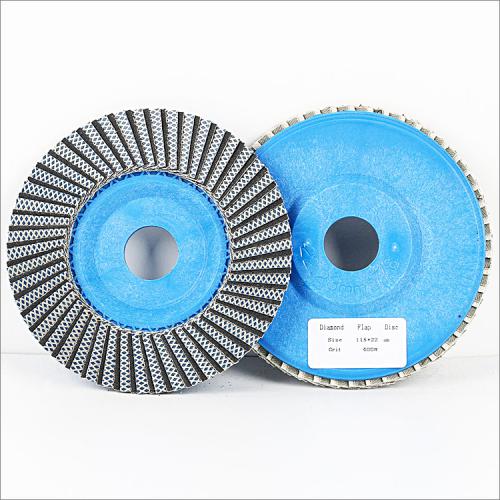

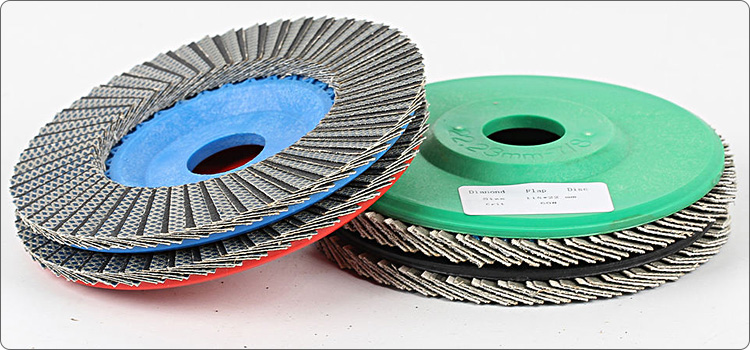

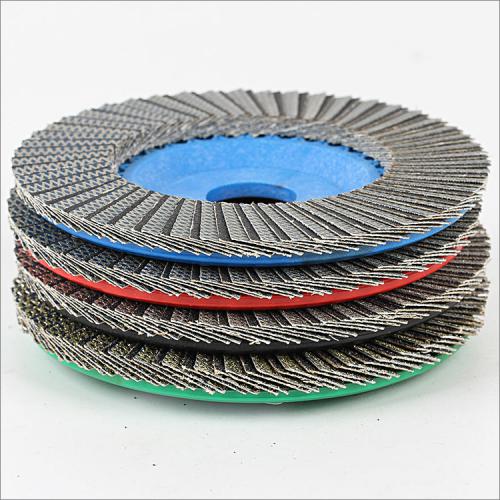

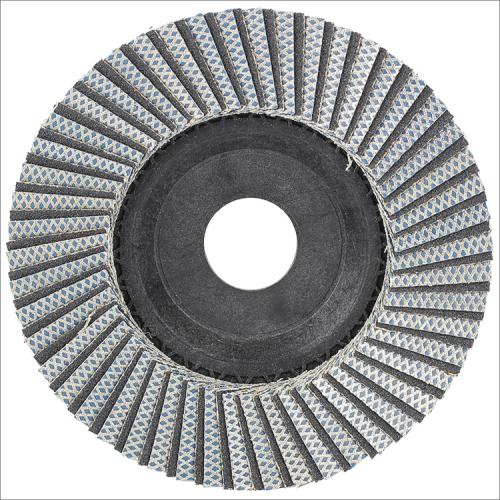

100mm 115mm 125mm electroplated diamond flap discs grinding wheels for concrete stone ceramic

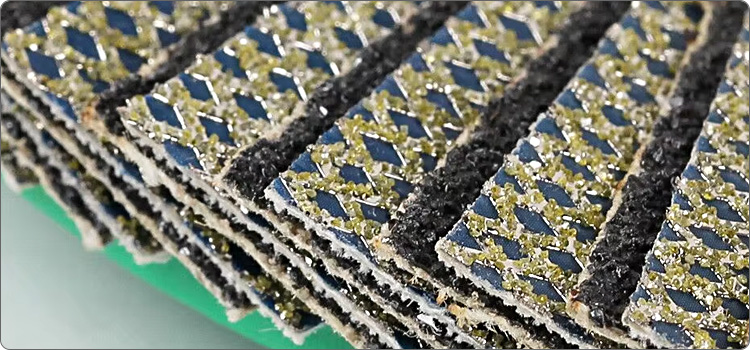

These 4 to 5 inches electroplated diamond flap discs are made of metal bonded diamond flaps combined with silicon carbide flaps, this results in fast material removal with a soft and smooth feel. They are usually used on polishers or angle grinders for sharp chamfering, beveling, edge surface grinding a wide range of materials such as concrete, stone, granite, marble, quartz, ceramic, porcelain tiles, glass, metals, etc.
Wet or dry use, wet working may prolong the working life.
Diamond grit: #60/#80, #120, #200, #400, other diamond grit is possible available.
Working layer width: 20mm.
Adapter: plastic or aluminum.
Bore size: 22.23mm, M14, 5/8"-11.
|
Code No. |
Diameter |
Diamond grit |
| DFD-EL12-100 |
100mm(4") |
#60/#80, #120, #200, #400 |
| DFD-EL12-115 |
115mm(4.5") |
#60/#80, #120, #200, #400 |
| DFD-EL12-125 |
125mm(5") |
#60/#80, #120, #200, #400 |
The above specifications & photos are for reference, other specifications may be available as per demand.
