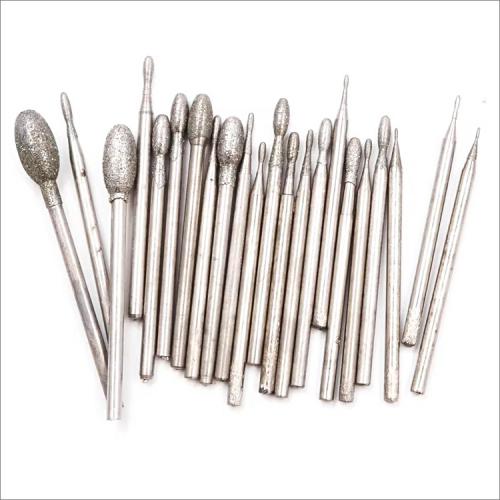

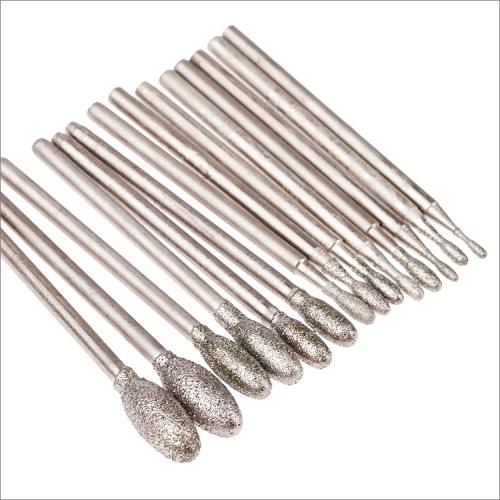

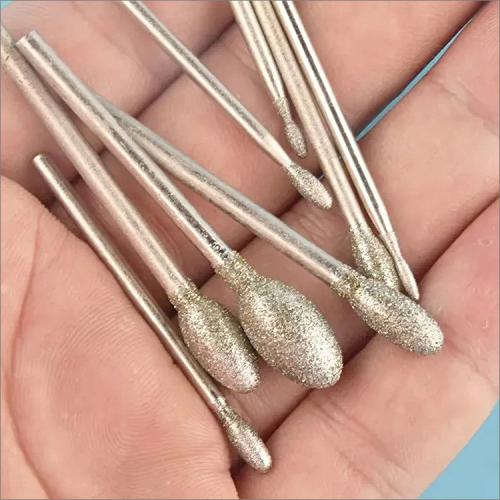

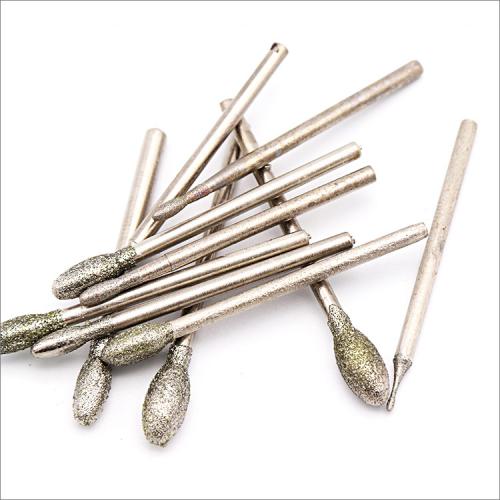

0.5mm to 12mm oval electroplated diamond grinding heads carving bits diamond mounted points rotary tool

Item No. : DGH-EL11


Diameter: 0.8mm-12mm

Shank diameter: 2.35mm, 3mm

Regular total length: around 45mm

Diamond grit: regular grit #120



Inquiry Now
Detailed Description

0.5mm to 12mm oval electroplated diamond grinding heads carving bits diamond mounted points rotary tool

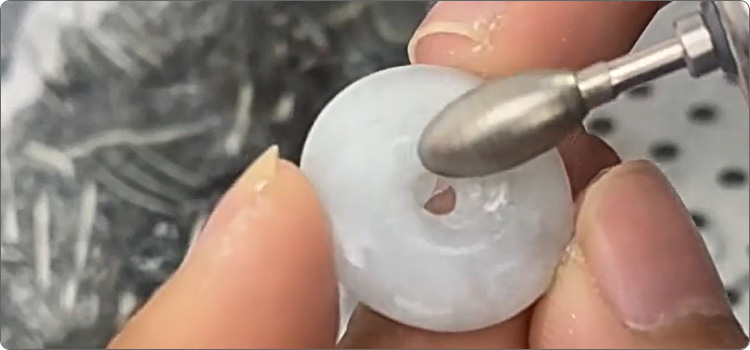

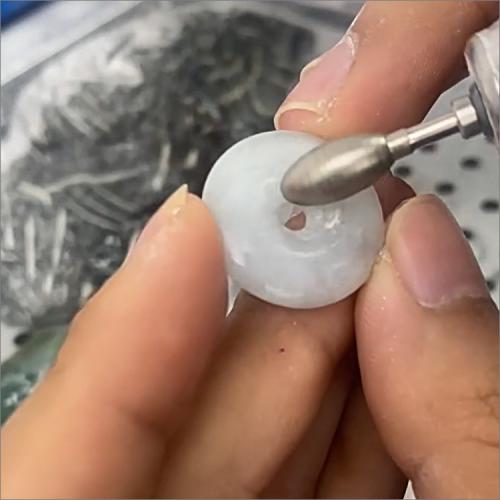

These oval electroplated diamond grinding heads are usually used for crafts, hobbies, home repair, jewelry, lapidary use, such as carving dressing grinding polishing ceramic, glass, precious stone, jade, crystal, agate, gemstone, bone, stainless steel, alloy steel and many other abrasive or hard materials.


These grinding bits can be installed on the electric grinder, hanging mill and hand electric drill, but never use drills while machine is in hammer action.


Highly recommended for crafts, hobbies, home repair, jewelry, lapidary use, modeling.


Please use water for coolant.

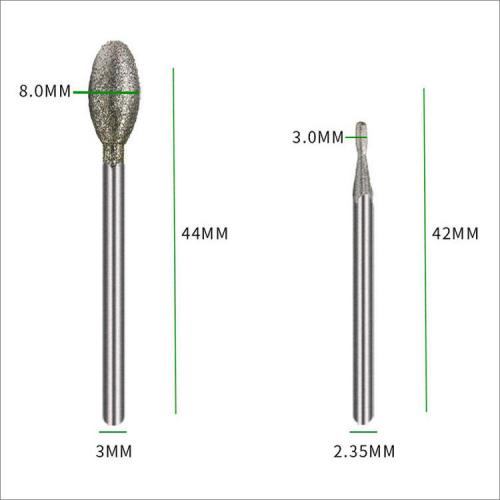

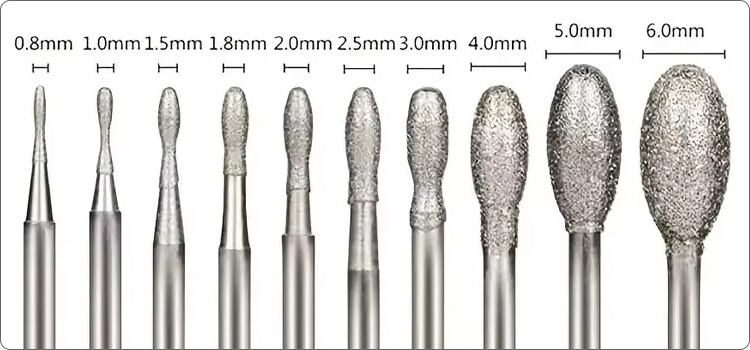

Diameter: 0.8mm-12mm.

Shank diameter: 2.35mm, 3mm.

Regular total length: around 45mm.

Diamond grit: regular grit #120,  other grit(#80, #120, #150, #180, #240, #320) is possible available.


Code No.

Diameter

Diamond Grit

DGH-EL11-008 0.8mm #120
DGH-EL11-010 1.0mm #120
DGH-EL11-015 1.5mm #120
DGH-EL11-018 1.8mm #120
DGH-EL11-020 2.0mm #120
DGH-EL11-025 2.5mm #120
DGH-EL11-030 3.0mm #120
DGH-EL11-040 4.0mm #120
DGH-EL11-060 6.0mm #120
DGH-EL11-080 8.0mm #120
DGH-EL11-100 10.0mm #120
DGH-EL11-120 12.0mm #120




The above specifications & photos are for reference, other specifications may be available as per demand.
