Conical electroplated diamond grinding heads engraving chamfering drilling deburring grinding bits

Item No. : DGH-EL12

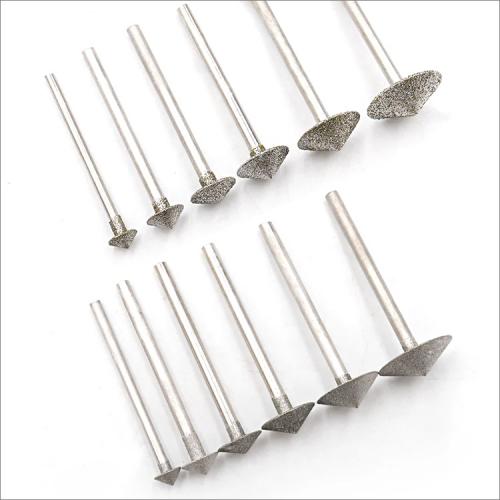

Diameter: 8mm-70mm

Shank diameter: 3mm, 6mm, 10mm

Regular total length: 60mm

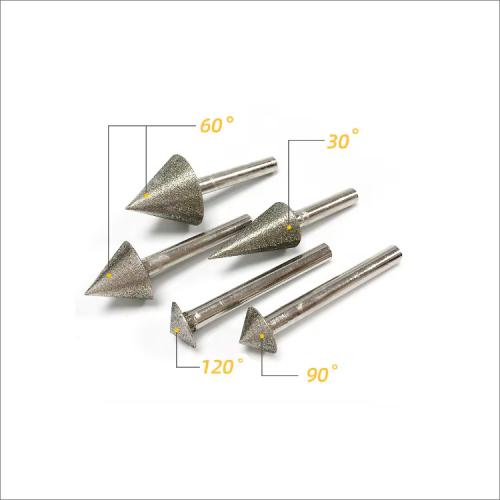

Angles: degree 30/45/60/90/120

Diamond grit: #80, #120, #150, #180, #240, #320

Inquiry Now
Detailed Description

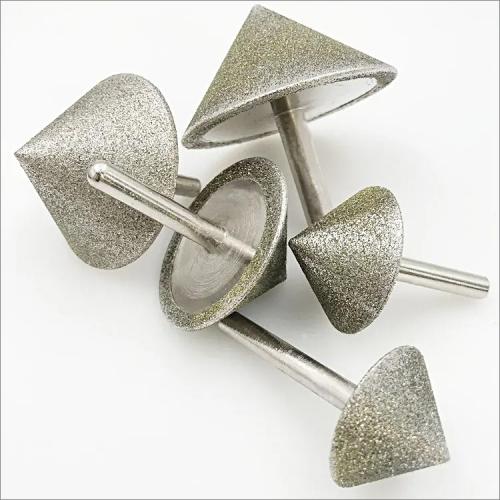

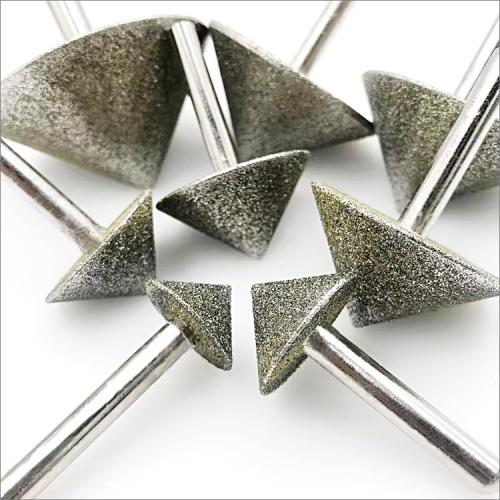

Conical electroplated diamond grinding heads engraving chamfering drilling deburring grinding bits

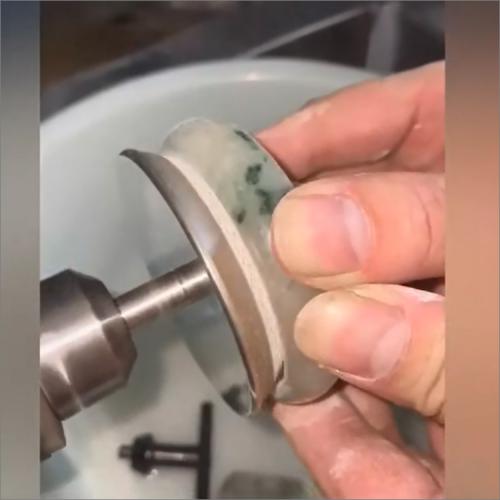

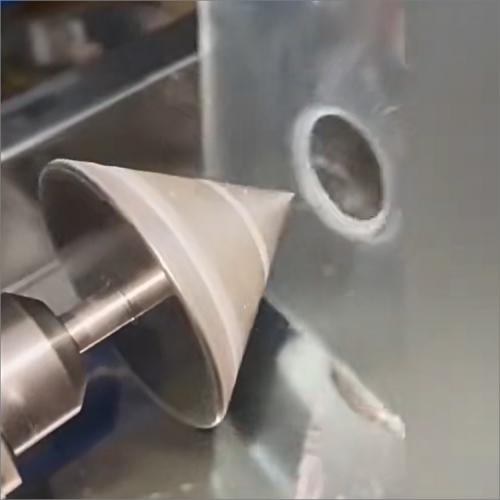

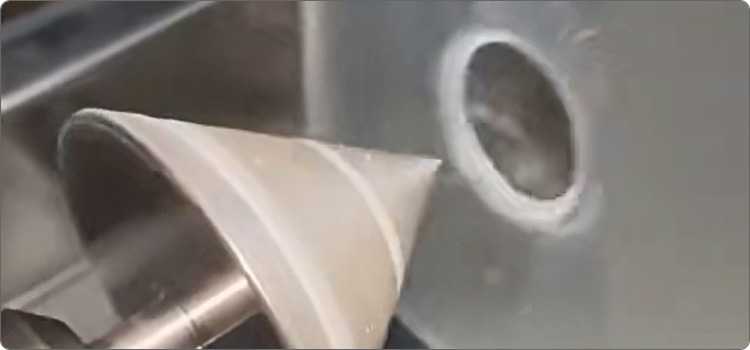

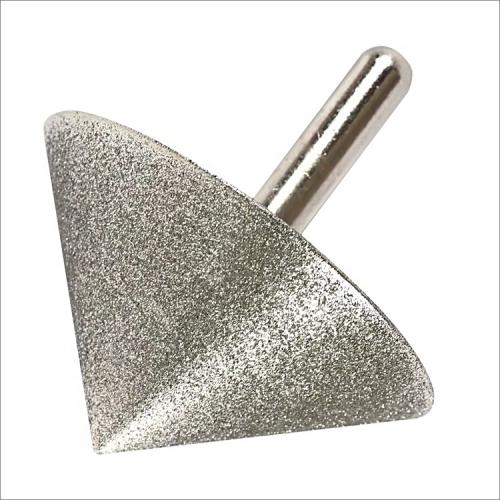

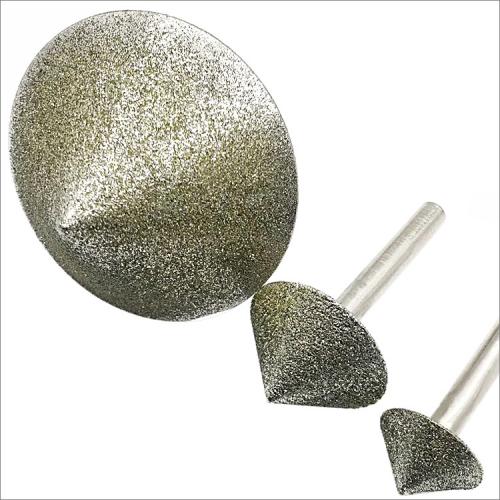

These umbrella shape conical electroplated diamond grinding bits are used for grinding chamfering deburring drilling of various materials such as ceramic tile, glass, soft stone, jewelry, jade, gemstone, alloys steel, wood, etc.


These grinding heads can be installed on electric mills, carving machines, hanging mills, hand electric drills, pneumatic air mills, and other electrical tools can hold 3/6/10mm handles can be used.


Please use water for coolant.

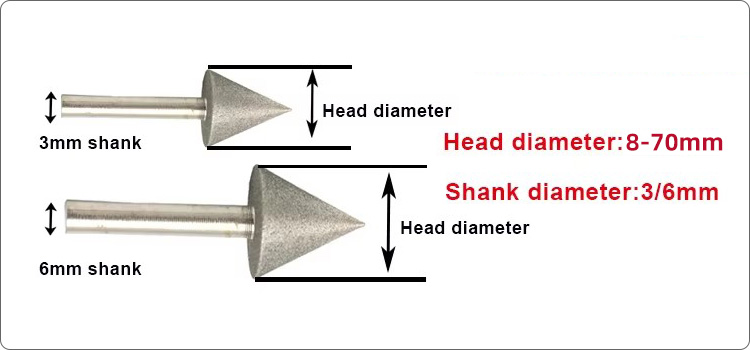

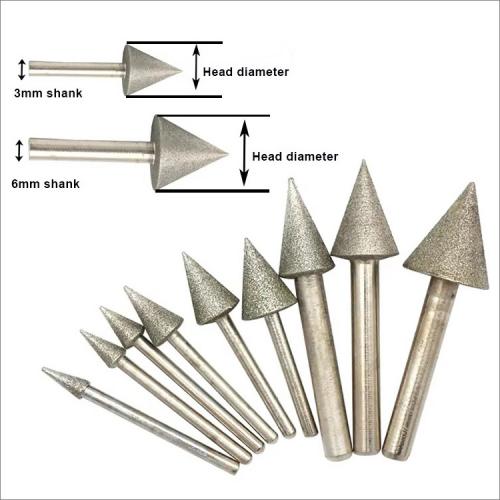

Diameter: 8mm-70mm.

Shank diameter: 3mm, 6mm, 10mm.

Regular total length: 60mm.

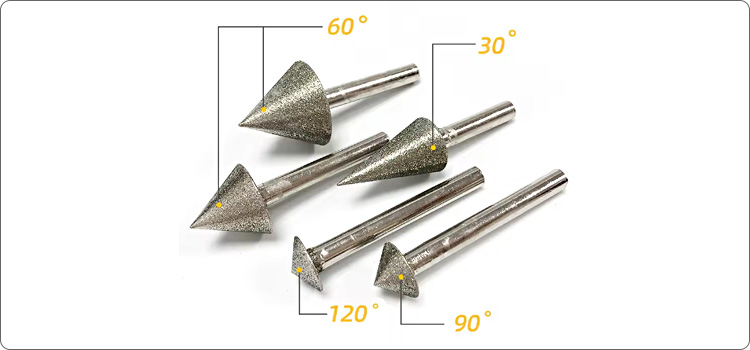

Angles: degree 30/45/60/90/120.

Diamond grit: #80, #120, #150, #180, #240, #320, other grit is possible available.


Code No.

Diameter

Diamond Grit

DGH-EL12-08 8mm #80 - #320
DGH-EL12-10 10mm #80 - #320
DGH-EL12-12 12mm #80 - #320
DGH-EL12-14 14mm #80 - #320
DGH-EL12-16 16mm #80 - #320
DGH-EL12-20 20mm #80 - #320
DGH-EL12-25 25mm #80 - #320
DGH-EL12-30 30mm #80 - #320
DGH-EL12-35 35mm #80 - #320
DGH-EL12-40 40mm #80 - #320
DGH-EL12-45 45mm #80 - #320
DGH-EL12-50 50mm #80 - #320
DGH-EL12-55 55mm #80 - #320
DGH-EL12-60 60mm #80 - #320
DGH-EL12-65 65mm #80 - #320
DGH-EL12-70 70mm #80 - #320





The above specifications & photos are for reference, other specifications may be available as per demand.
