Diamond segments of wall cutting circular saw blades - V slots shape
For diameter: 450-1200mm
Segment size: H12mm
Materials cutting: concrete stone bricks
Production process: hot-press sintered
Welding type: silver welding

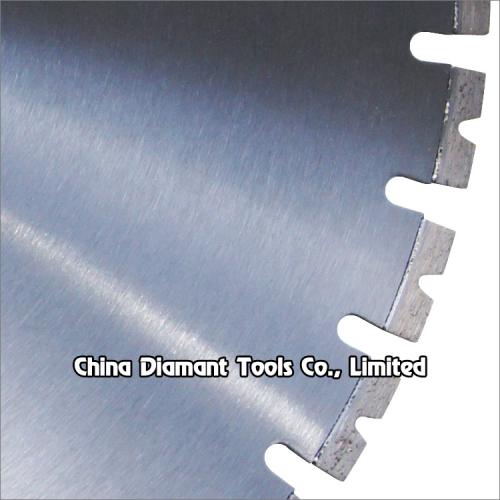

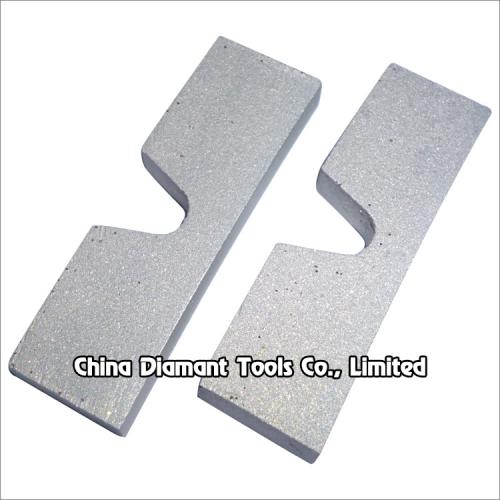

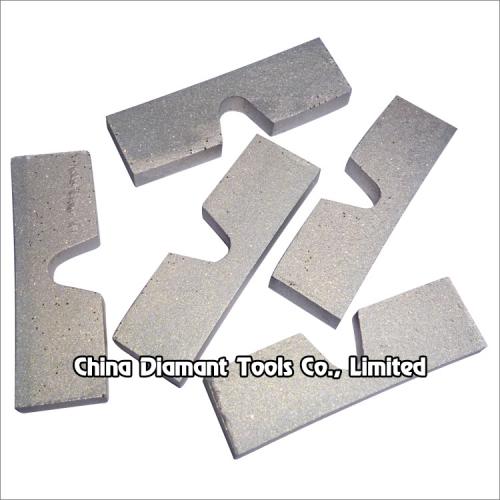

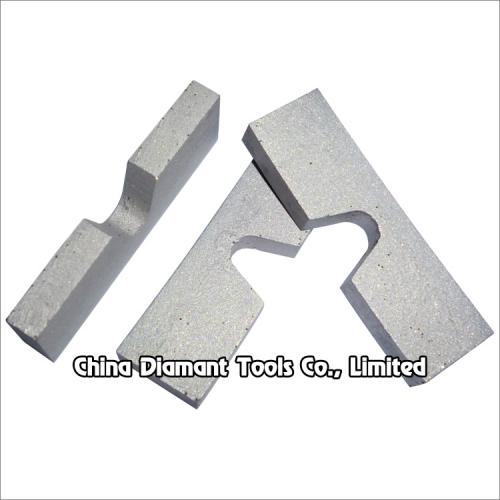

Diamond segments of wall cutting circular saw blades - V slots shape
This 12mm height with V slot shape segments are widely used for replacement of used diamond segments on wall saw blades which are designed to cut openings in walls, floors, bridges, docks, dams, etc.
They are capable of cutting through steel reinforcement in all types of concrete, stone, bricks.
V slot is benefit for fast coolant and speed cutting.
Welding method: laser welding or high frequency silver brazing.
Warning: no fire-welding.
|
Code No. |
Diameter (mm/inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSWS-02-01 |
450mm(18") |
40x4.6x12 |
24 |
| DSWS-02-02 |
500mm(20") |
40x4.6x12 |
28 |
| DSWS-02-03 |
600mm(24") |
40x4.6x12 |
34 |
| DSWS-02-04 |
650mm(26") |
40x4.6x12 |
36 |
| DSWS-02-05 |
700mm(28") |
40x4.6x12 |
40 |
| DSWS-02-06 |
750mm(30") |
40x4.6x12 |
42 |
| DSWS-02-07 |
800mm(32") |
40x4.6x12 |
46 |
| DSWS-02-08 |
900mm(36") |
40x4.6x12 |
52 |
| DSWS-02-09 |
1000mm(40") |
40x4.6x12 |
58 |
| DSWS-02-10 |
1050mm(42") |
40x4.6x12 |
60 |
| DSWS-02-11 | 1100mm(44") |
40x4.6x12 |
62 |
| DSWS-02-12 |
1200mm(48") |
40x4.6x12 |
70 |
The above specifications & photos are for reference, other specification may be available as per demand.
