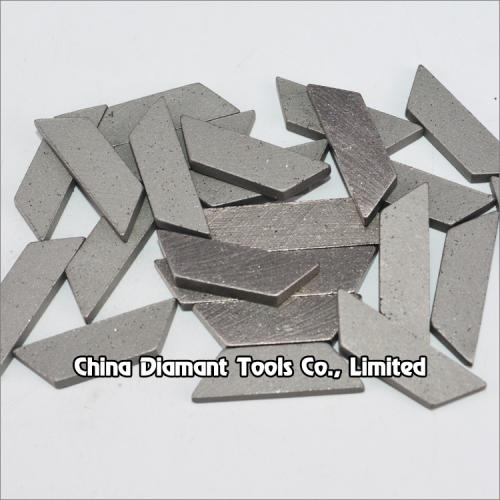

Diamond segments of gangsaw for marble block cutting - trapezoid type
Segment shape: trapezoid
Segment size: H8.5mm or 9.0mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: fire welding / high-frequency welding

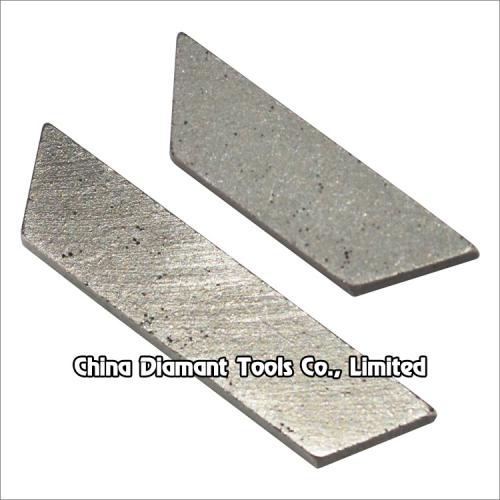

Diamond segments of gangsaw (frame saw blades) for marble block cutting - trapezoid shape
This type diamond segments is usually for cutting abrasive marble or marble with lots of cavities.
Usually there are 60-80pcs blades of one gang saw machine..
Welding method: fire welding or high-frequency welding with silver brazing materials.
 |
 |
Code No.
Taper Segment
LxWxH(mm)
Steel Core Thickness
Purpose
DSM-GS-02S
18/29x3.0/3.5/4.0/4.5x8.5
2.5/3.0/3.5mm
Block slabs cutting
30/40x3.0/3.5/4.0/4.5x9.0
2.5/3.0/3.5mm
Block slabs cutting
DSM-GS-02L
The above specifications & photos are for reference, other specification may be available as per demand.
