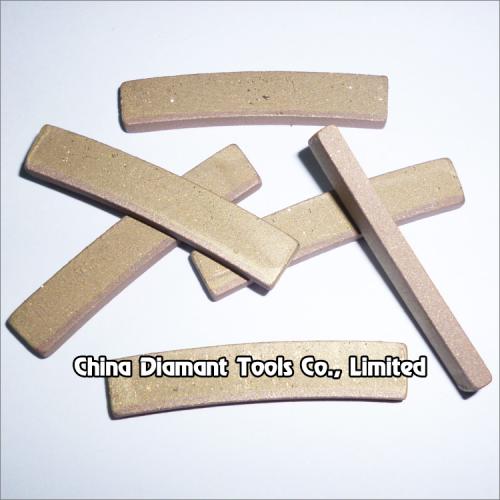

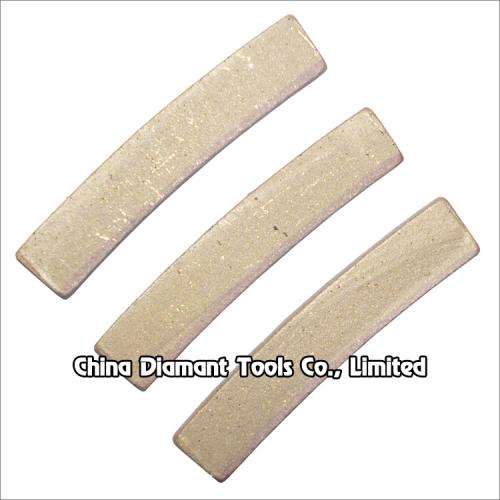

Diamond segments of circular saw blade for marble soft stone cutting - fan shape
For diameter: 300-600mm
Segment size: H8mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blade for marble soft stone cutting - fan shape

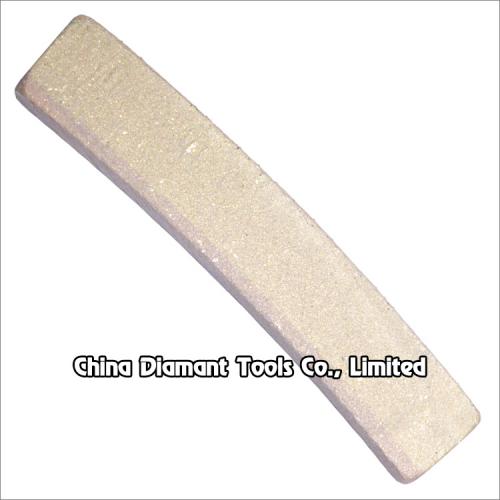

What is fan shape: The length of cutting side is longer than bottom/welding side.
Diamond segment with fan shape of 300-600mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stone without quartz.
The fan shape is benefit for reducing chips when the blade is cutting the edge of slab.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
| Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
| DSMS-02-300 |
300mm(12") |
44.7/42.3x3.0x8 |
21 |
| DSMS-02-350 |
350mm(14") |
44.7/41.7x3.2x8 |
25 |
| DSMS-02-400 |
400mm(16") |
42.9/41.2x3.6x8 |
28 |
| DSMS-02-450 | 450mm(18") | 43.0/41.6x4.0x8 |
32 |
| DSMS-02-500 |
500mm(20") |
43.0/41.6x4.2x8 |
36 |
| DSMS-02-600 |
600mm(24") |
44.3/43.0x4.6x8 |
42 |
The above specifications & photos are for reference, other specification may be available as per demand.
