900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised concave V top

item No : DSGB-03
For diameter: 900-2200mm
Segment size: H15mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

Inquiry Now

Detailed Description

Inquiry Now

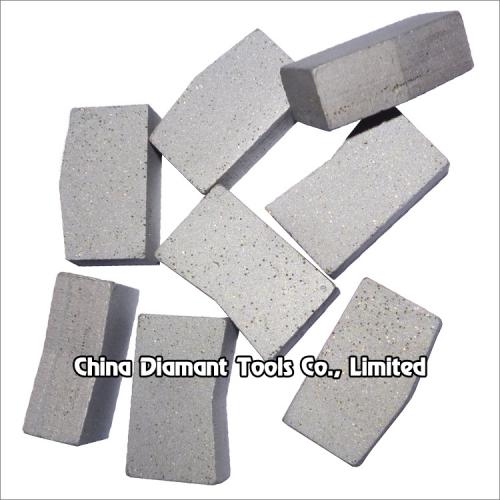

900mm-2200mm diamond segments for granite hard stone block Cutting - taper with raised/concave V top

Multi-layer structure

Diamond segments raised/concave V & taper shape with mulit-layer structure of 900-2200mm circular saw blades for block cutting of granite, sandstone, various hard stone with quartz.

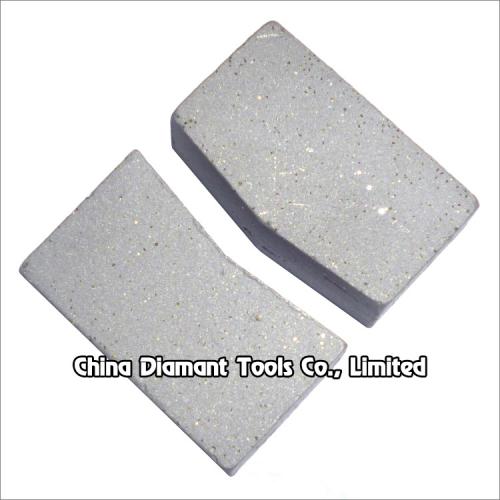

There are 50% raised V shape and 50% concave V shape for one full set segments, V shape is benefit for fast segment opening of initial cutting.

Only one type V shape for full set segments is available.

Suitable for bridge cutting machines, single arm cutting machines.

Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.

Welding method: silver/copper welding by high frequency welding machine.

Code No.	Diameter (mm)	Segment Dimension (L×W×H)mm	Segment No. (pcs/set)
DSGB-03-0900	900	24x7.0/6.5x15	64
DSGB-03-1000	1000	24x7.0/6.5x15	70
DSGB-03-1100	1100	24x7.4/6.8x15	74
DSGB-03-1200	1200	24x7.5/7.0x15	80
DSGB-03-1350	1350	24x8.4/7.7x15	88
DSGB-03-1400	1400	24x8.5/8.0x15	96
DSGB-03-1600	1600	24x9.0/8.4x15	104/108
DSGB-03-1700	1700	24x9.4/8.4x15	112
DSGB-03-1800	1800	24x9.5/9.0x15	120
DSGB-03-2000	2000	24x10.5/9.5x15	128
DSGB-03-2200	2200	24x11.5/10.5x15	132/136

The above specifications & photos are for reference, other specification may be available as per demand.
