Diamond segments of circular saw blade for marble soft stone block cutting
item No : DSMB-01
For diameter: 900-2000mm
Segment size: H8/10/12mm
Materials cutting: marble,limestone,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
For diameter: 900-2000mm
Segment size: H8/10/12mm
Materials cutting: marble,limestone,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

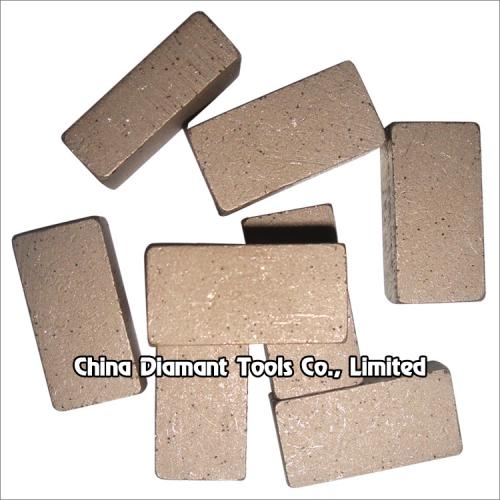

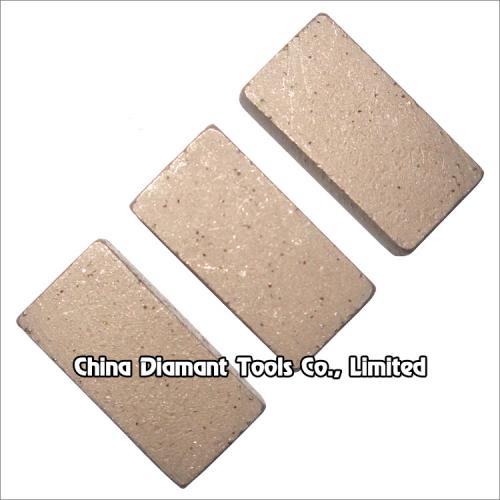

Diamond segments of circular saw blade for marble soft stone block cutting
Sandwich structure, box shape
Diamond Segment with sandwich structure and box shape of 900-2000mm circular saw blades for block cutting of marble, limestone, slate, various soft stone without quartz.
Wet use only with sufficient water, coolant material put into water is benefit for fast cutting.
Welding method: by high frequency silver welding.
|
|
| Code No. |
Diameter (mm) |
Segment Dimension (L×W×H)mm |
Segment No. |
| DSMB-01-0900 | 900 | 24/30/40x6.5x8/10/12 | 64 |
| DSMB-01-1000 | 1000 | 24/30/40x7.0x8/10/12 | 70 |
| DSMB-01-1200 | 1200 | 24/30/40x7.5x8/10/12 | 80 |
| DSMB-01-1350 | 1350 | 24/30/40x8.0x8/10/12 | 88 |
| DSMB-01-1400 | 1400 | 24/30/40x8.5x8/10/12 | 96 |
| DSMB-01-1600 | 1600 | 24/30/40x9.0x8/10/12 | 108 |
| DSMB-01-1800 | 1800 | 24/30/40x9.5x10/12 | 120 |
| DSMB-01-2000 | 2000 | 24/30/40x10.5x10/12 | 128 |
The above specifications & photos are for reference, other specification may be available as per demand.
