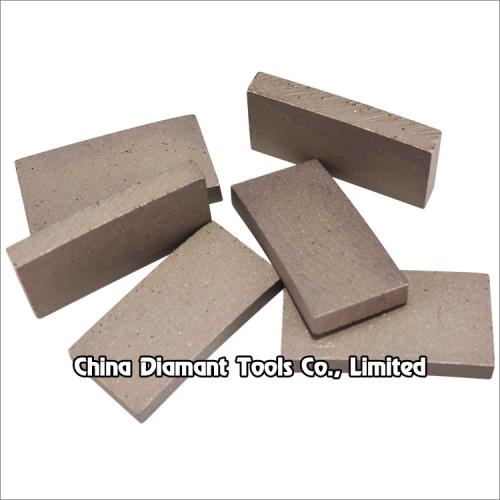

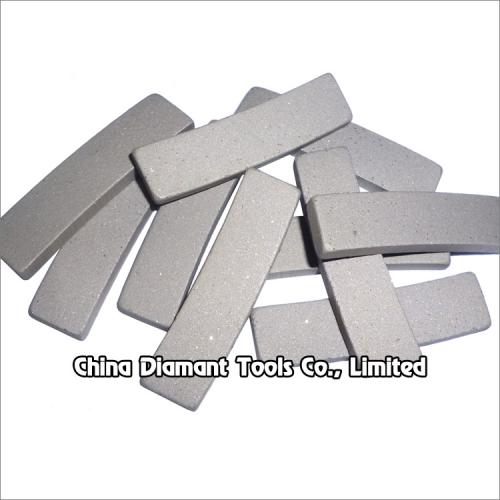

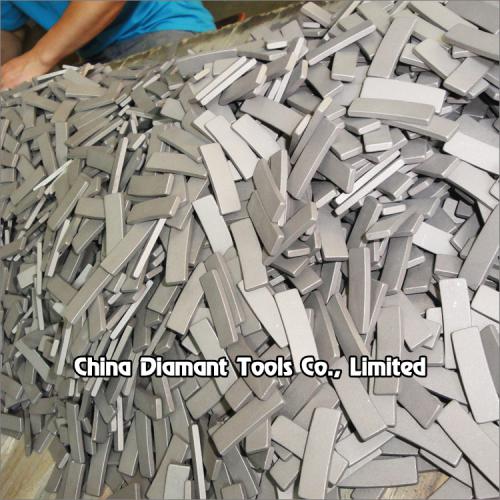

Diamond segments of circular saw blades for granite cutting - normal flat shape
For diameter: 250-800mm
Segment size: H10-20mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blades for granite cutting - normal flat shape

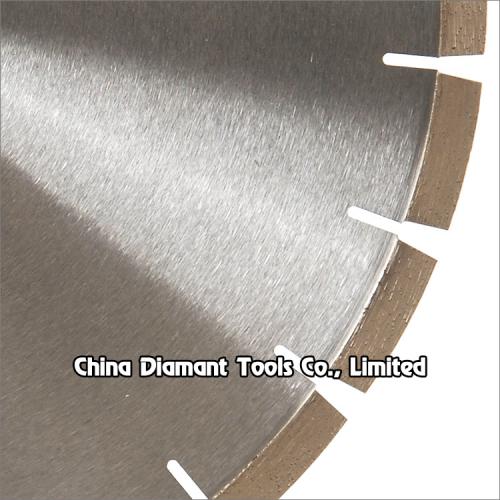

This type diamond segments with normal flat shape of 250-800mm circular saw blades is usually used for slab edge cutting of granite, sandstone, various hard stone with quartz.
Normal flat means speciation is simple and "no grooves/slot or special shapes".
The most demanding sizes of granite cutting segments are for 14”/350mm and 16”/400mm of circular saw blades to cut 2-5cm thickness granite and hard stone slabs or strips.
Wet use only with sufficient water.
Welding method: high-frequency welding.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSGS-01-250 |
250mm(10") |
40x2.8x10 |
18 |
|
DSGS-01-300 |
300mm(12") |
40x3.0x10/12 |
21 |
|
DSGS-01-350 |
350mm(14") |
40x3.2x10/12/15/20 |
24/25 |
|
DSGS-01-400 |
400mm(16") |
40x3.6x10/12/15/20 |
28 |
|
DSGS-01-450 |
450mm(18") | 40x4.0x10/12/15/20 |
32 |
|
DSGS-01-500 |
500mm(20") |
40x4.2x10/12/15/20 |
36 |
|
DSGS-01-550 |
550mm(22") |
40x4.4x10/12/15/20 |
38 |
|
DSGS-01-600 |
600mm(24") |
40x4.6x10/12/15/20 |
42 |
|
DSGS-01-700 |
700mm(28") |
40x5.2x10/12/15/20 |
50 |
|
DSGS-01-750 |
750mm(30") |
40x5.5x10/12/15/20 |
50 |
|
DSGS-01-800 |
800mm(32") |
40x6.0x10/12/15/20 |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
