Diamond segments of circular saw blades for granite cutting - taper shape with U slots
For diameter: 350-600mm
Segment size: H20mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

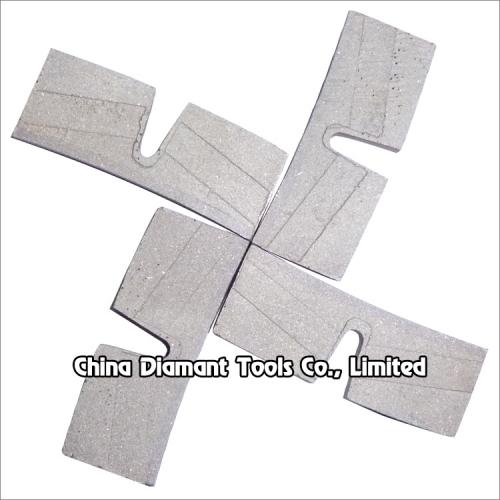

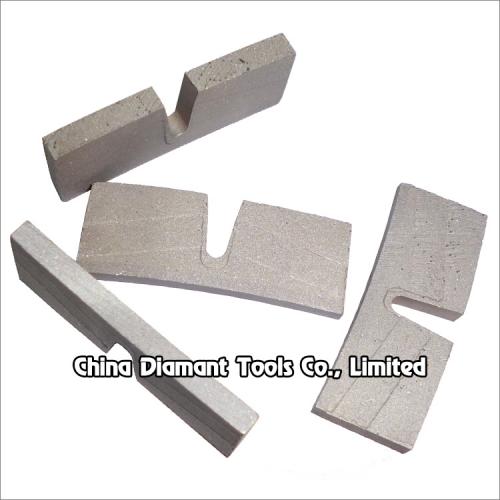

Diamond segments of circular saw blades for granite cutting - >> taper shape with U slots
Diamond segment with ">>" taper & U slot shape of 350-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
">>" taper & U slot shape is benefit for speed cutting and fast coolant.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSGS-03-250 |
250mm(10") |
x |
18 |
|
DSGS-03-300 |
300mm(12") |
x |
21 |
|
DSGS-03-350 |
350mm(14") |
40x3.2x20 |
24 |
|
DSGS-03-400 |
400mm(16") |
40x3.6x20 |
28 |
|
DSGS-03-450 |
450mm(18") | 40x4.0x20 |
32 |
|
DSGS-03-500 |
500mm(20") |
40x4.2x20 |
36 |
|
DSGS-03-550 |
550mm(22") |
40x4.4x20 |
38 |
|
DSGS-03-600 |
600mm(24") |
40x4.6x20 |
42 |
|
DSGS-03-700 |
700mm(28") |
x |
50 |
|
DSGS-03-750 |
750mm(30") |
x |
50 |
|
DSGS-03-800 |
800mm(32") |
x |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
