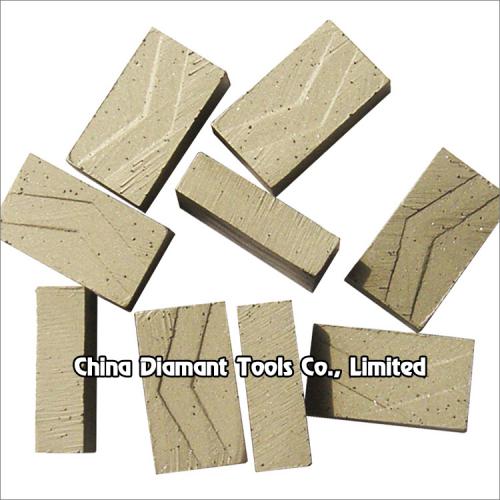

Diamond segments of circular saw multi-blade for granite block cutting - << taper shape
For diameter: 1000/1200/1600mm
Segment size: H13/15mm
Materials cutting: granite
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw multi-blade for granite block cutting - << taper shape
Diamond segments "<<" Step taper shape with sandwich or multi-layer structure which are mainly used on multi-blades for cutting granite rough blocks into thin slabs.
This type segment is suitable for 5-60pcs same diameter multi-blades, such as 1200mm, this is popular for the machines with 4 columns made in Europe.
Characterized by high efficiency, no need grinding, smoothness of slab, and low energy consumption.
Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.
Welding method: silver/copper welding by high frequency welding machine.
|
|
|
|
for granite block cutting
|
high frequency welding
|
|
|
|
|
sandwich structure |
multi-layer structure |
|
Code No. |
Diameter |
Segment Dimension L x W x H (mm) |
Segment No. (Per Set) |
|
DSGBM-2-1000 |
1000 |
24×7.0/6.5/6.0×13 |
70 |
|
DSGBM-2-1200 |
1200 |
24×7.5/7.0/6.5×13 |
80 |
|
DSGBM-2-1600 |
1600 |
24×8.4/8.0/7.6×13/15 |
108 |
The above specifications & photos are for reference, other specification may be available as per demand.
