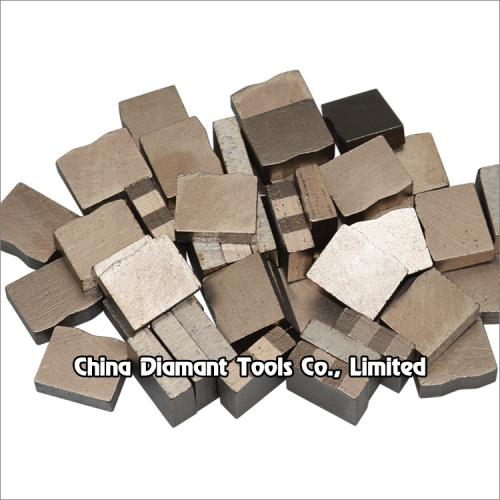

900mm-3500mm diamond segments for granite block mineral cutting - W top taper shape

item No : DSGB-05
For diameter: 900-3500mm
Segment size: H15/20/30mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

Inquiry Now

Detailed Description

Inquiry Now

900mm-3500mm diamond segments for granite block mineral cutting - W top taper shape

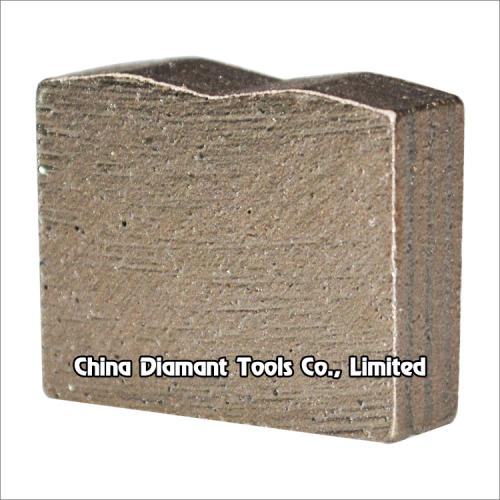

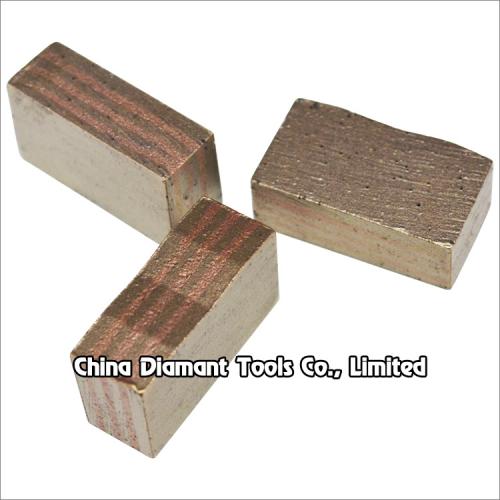

Multi-layer Structure

Diamond Segment W top taper shape with multi-layer structure of 900-3500mm circular saw blades for block cutting or mineral of granite, sandstone, various hard stone with quartz.

Suitable for bridge cutting machines, single arm cutting machines.

Wet use only with sufficient water, coolant material put into water is benefit for faster cutting.

Welding method: silver/copper welding by high frequency welding machine.

Code No.	Diameter (mm)	Segment Dimension (L×W×H)mm	Segment No.
DSGB-05-0900	900	24x7.0/6.2x15/20	64
DSGB-05-1000	1000	24x7.0/6.2x15/20	70
DSGB-05-1100	1100	24x7.4/6.6x15/20	74
DSGB-05-1200	1200	24x7.6/7.0x15/20	80
DSGB-05-1350	1350	24x8.4/7.6x15/20	88
DSGB-05-1400	1400	24x8.4/7.6x15/20	96
DSGB-05-1600	1600	24x9.2/8.4x15/20	104/108
DSGB-05-1700	1700	24x9.2/8.4x15/20	112
DSGB-05-1800	1800	24x10.0/9.2x15/20	120
DSGB-05-2000	2000	24x10.6/9.6x15/20	128
DSGB-05-2200	2200	24x11.0/10.0x15/20	132/136
DSGB-05-2500	2500	24/30x12.5/11.5x15/20	140
DSGB-05-2700	2700	24/30x12.5/11.5x15/20	140
DSGB-05-3000	3000	24/30x12.5/11.5x15/20	160
DSGB-05-3500	3500	24/30x13.5/12.5x15/20	180

The above specifications & photos are for reference, other specification may be available as per demand.
