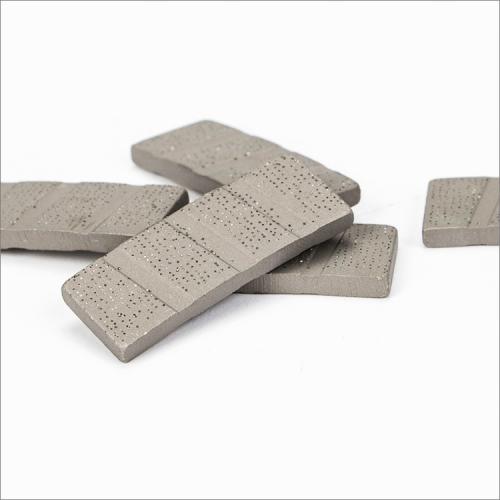

Matrix diamond segments of circular saw blades for cutting granite hard stone - arix with diagonal groove
For diameter: 300-500mm
Segment size: H12mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blades for cutting granite hard stone - matrix (arix) with diagonal groove
Diamond matrix segments with diagonal groove of 300-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
Under same bond condition, the cutting speed and life of diamond matrix segments are both minimum 20% more than other regular segments.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
 |
 |
| Cutting Speed | Cutting Life |
| Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
| DSMATRIX-03-300 |
300mm(12") |
40x3.2x12 |
21 |
| DSMATRIX-03-350 |
350mm(14") |
40x3.2x12 |
24 |
| DSMATRIX-03-400 |
400mm(16") |
40x3.4x12 |
28 |
| DSMATRIX-03-450 | 450mm(18") |
40x3.6x12 |
32 |
| DSMATRIX-03-500 |
500mm(20") |
40x3.8x12 |
36 |
| DSMATRIX-03-600 |
600mm(20") |
40x4.2x12 |
42 |
The above specifications & photos are for reference, other specification may be available as per demand.
