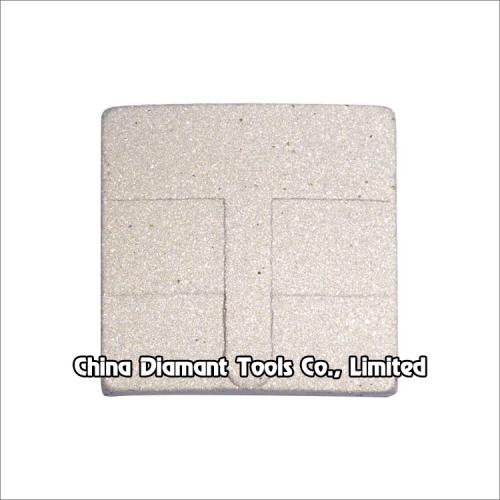

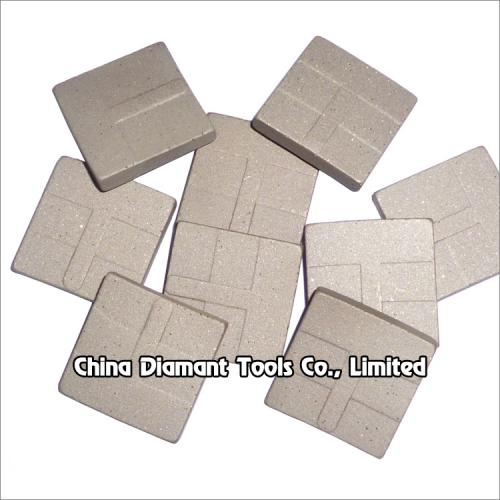

Diamond segments of circular saw blades for granite cutting - taper 20mm length T shape
For diameter: 300-800mm
Segment size: H20mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blades for granite cutting - taper 20mm length T shape

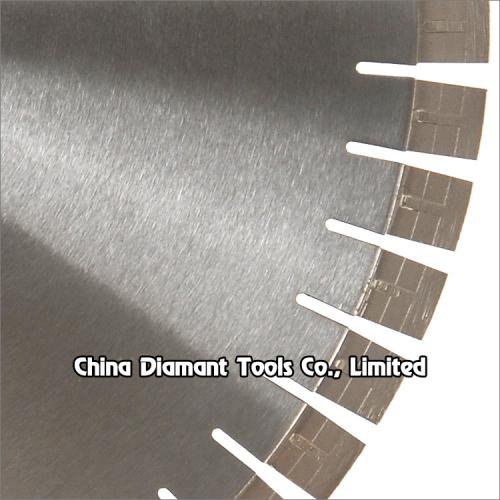

Diamond segment 20mm length with T & taper shape of 350-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
20mm with T taper shape is benefit for speed cutting.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSGS-04-250 |
250mm(10") |
x |
18 |
|
DSGS-04-300 |
300mm(12") |
20x3.6/3.3/3.0x20 |
21 |
|
DSGS-04-350 |
350mm(14") |
20x3.6/3.3/3.0x20 |
24 |
|
DSGS-04-400 |
400mm(16") |
20x4.0/3.7/3.4x20 |
28 |
|
DSGS-04-450 |
450mm(18") | 20x4.3/4.0/3.7x20 |
32 |
|
DSGS-04-500 |
500mm(20") |
20x4.3/4.0/3.7x20 |
36 |
|
DSGS-04-550 |
550mm(22") |
20x5.0/4.7/4.4x20 |
38 |
|
DSGS-04-600 |
600mm(24") |
20x5.0/4.7/4.4x20 |
42 |
| DSGS-04-650 | 650mm(26") | 20x5.0/4.7/4.4x20 | 46 |
|
DSGS-04-700 |
700mm(28") |
20x5.4/5.1/4.8x20 |
50 |
|
DSGS-04-800 |
800mm(32") |
20x6.0/5.7/5.1x20 |
57 |
The above specifications & photos are for reference, other specification may be available as per demand.
