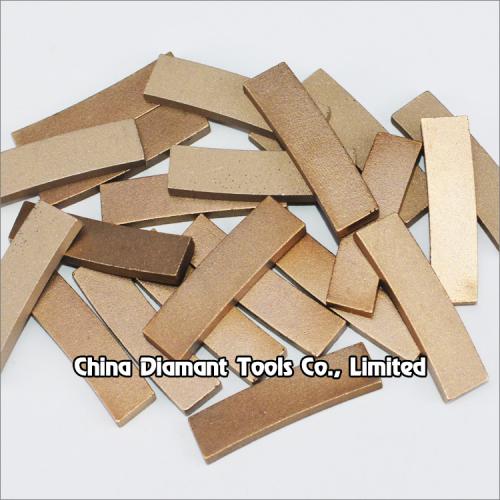

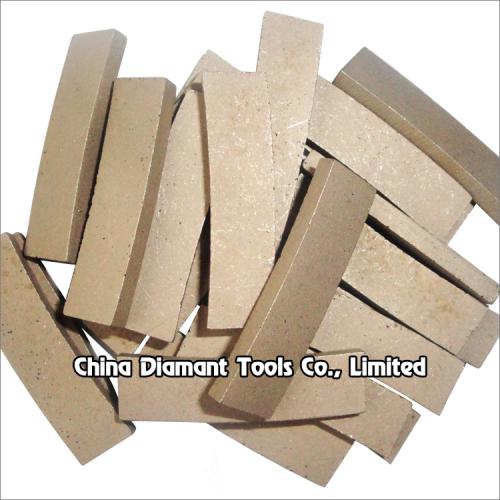

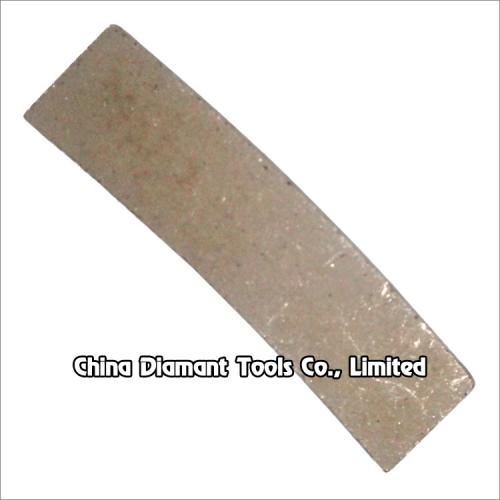

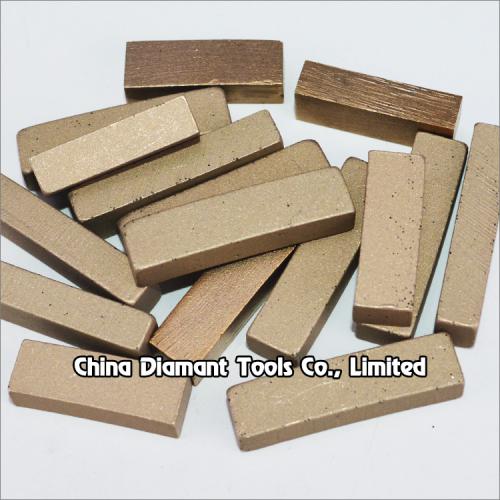

Diamond segments of circular saw blade for marble soft stone cutting - normal flat shape
For diameter: 250-800mm
Segment size: H8/10mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding
Diamond segments of circular saw blade for marble soft stone cutting - normal flat shape
Diamond segment with normal flat shape of 250-800mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stone without quartz.
Normal flat means speciation is simple and "no grooves/slot or special shapes".
The most demanding sizes of marble segments are for 14”/350mm and 16”/400mm of circular saw blades to cut 2-5cm thickness marble and soft stone slabs or strips.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
| Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
| DSMS-01-250 |
250mm(10") |
40x2.6/2.8x8/10 |
18 |
| DSMS-01-300 |
300mm(12") |
40x3.0/3.2x8/10 |
21 |
| DSMS-01-350 |
350mm(14") |
40x3.2/3.4x8/10 |
24/25 |
| DSMS-01-400 |
400mm(16") |
40x3.6x8/10 |
28 |
| DSMS-01-450 | 450mm(18") |
40x4.0x8/10 |
32 |
| DSMS-01-500 |
500mm(20") |
40x4.2x8/10 |
36 |
| DSMS-01-550 |
550mm(22") |
40x4.4x8/10 |
38 |
| DSMS-01-600 |
600mm(24") |
40x4.6x8/10 |
42 |
| DSMS-01-625 |
625mm(25") |
40x4.6x8/10 |
42 |
| DSMS-01-700 |
700mm(28") |
40x5.0x8/10 |
50 |
| DSMS-01-725 |
725mm(29") |
40x5.5x8/10 |
50 |
| DSMS-01-800 |
800mm(32") |
40x5.2x8/10 |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
