Diamond segments of circular saw blade for marble soft stone cutting - 2 U slots
For diameter: 250-800mm
Segment size: H10-/12mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

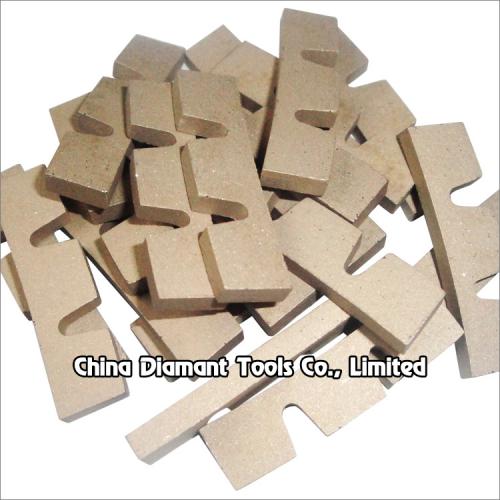

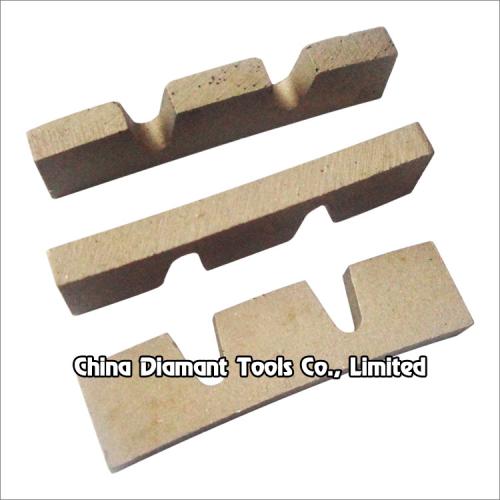

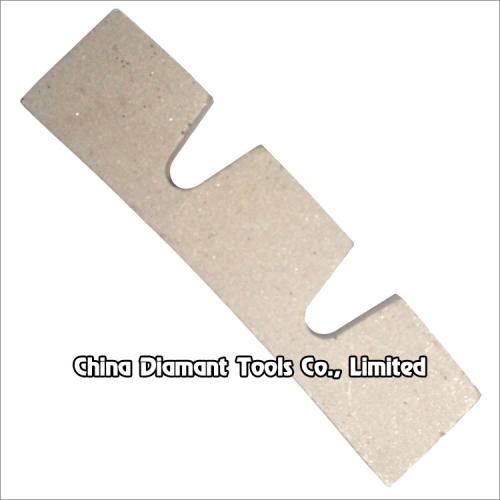

Diamond segments of circular saw blade for marble soft stone cutting - 2 U slots shape
Diamond segment with 2 "U" slot shape of 250-800mm circular saw blades for slab edge cutting of marble, limestone, slate, various soft stones without quartz.
2 U slots is benefit for speed cutting and fast coolant.
Sandwich structure may be available.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
| Code No. |
Diameter (mm/Inch) |
Segment Size LxWxH(mm) |
Segment No. (pcs/set) |
| DSMS-04-250 |
250mm(10") |
40x2.6/2.8x10/12 |
18 |
| DSMS-04-300 |
300mm(12") |
40x3.0/3.2x10/12 |
21 |
| DSMS-04-350 |
350mm(14") |
40x3.2/3.4x10/12 |
25 |
| DSMS-04-400 |
400mm(16") |
40x3.6x10/12 |
28 |
| DSMS-04-450 | 450mm(18") |
40x4.0x10/12 |
32 |
| DSMS-04-500 |
500mm(20") |
40x4.2x10/12 |
36 |
| DSMS-04-550 |
550mm(22") |
40x4.4x10/12 |
38 |
| DSMS-04-600 |
600mm(24") |
40x4.6x10/12 |
42 |
| DSMS-04-625 | 625mm(25") |
40x4.6x10/12 |
42 |
| DSMS-04-700 |
700mm(28") |
40x5.0x10/12 |
50 |
| DSMS-04-725 |
725mm(29") |
40x5.5x10/12 |
50 |
| DSMS-04-800 |
800mm(32") |
40x5.2x10/12 |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
