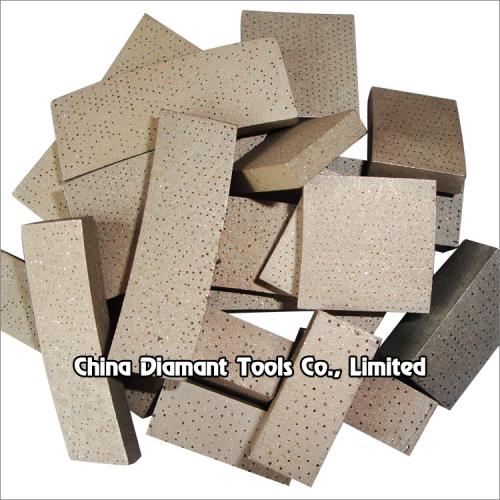

Matrix diamond segments of circular saw blades for cutting granite marble stone - arix segments
For diameter: 250-1200mm
Segment size: H10-20mm
Materials cutting: granite,marble,various stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

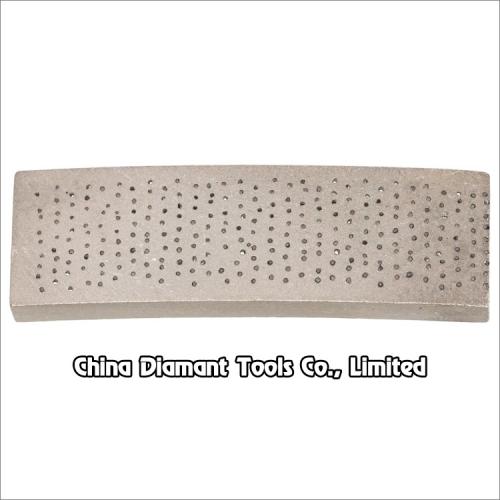

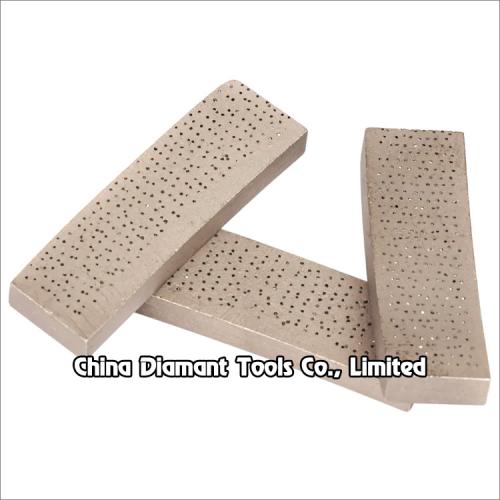

Diamond segments of circular saw blades for cutting granite marble various stone - matrix (arix) segments
Diamond matrix segments of 250-1200mm circular saw blades for cutting granite, marble, sandstone, limestone, ceramic, concrete, and various abrasive materials.
Under same bond condition, the cutting speed and life of diamond matrix segments are both minimum 20% more than other regular segments.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.

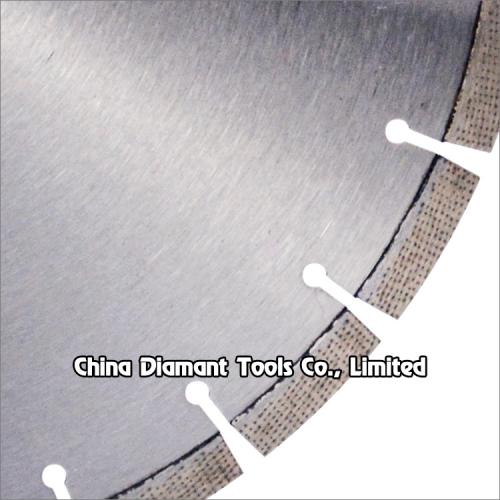

blade with matrix segments
structure
Cutting Speed
Cutting Life
Diameter
(mm/Inch)
Segment Size
LxWxH(mm)
Segment No.
(pcs/set)
250mm(10")
40x2.8x10
18
300mm(12")
40x3.0x10/12/15
21
350mm(14")
40x3.2x10/12/15
24/25
400mm(16")
40x3.6x10/12/15
28
40x4.0x10/12/15
32
500mm(20")
40x4.2x10/12/15
36
600mm(24")
40x4.6x10/12/15
42
700mm(28")
40x5.0x10/12/15
50
800mm(32")
40x5.2x10/12/15
900mm(36")
40x6.0x10/12/15
1000mm(40")
40x6.5x10/12/15
1200mm(48")
40x7.0x10/12/15
80
Code No.
DSMATRIX-01-250
DSMATRIX-01-300
DSMATRIX-01-350
40x3.2x15/20
DSMATRIX-01-400
40x3.6x15/20
DSMATRIX-01-450
450mm(18")
40x4.0x15/20
DSMATRIX-01-500
40x4.2x15/20
DSMATRIX-01-600
40x4.6x15/20
DSMATRIX-01-700
40x5.0x15/20
DSMATRIX-01-800
46
40x5.2x15/20
DSMATRIX-01-900
64
DSMATRIX-01-1000
70
DSMATRIX-01-1200
|
|
|
|
15mm height for granite
|
10mm height for marble
|
|
|
|
|
20mm length for granite
|
15mm for granite block
|
|
|
|
|
10mm for marble block |
The above specifications & photos are for reference, other specification may be available as per demand.
