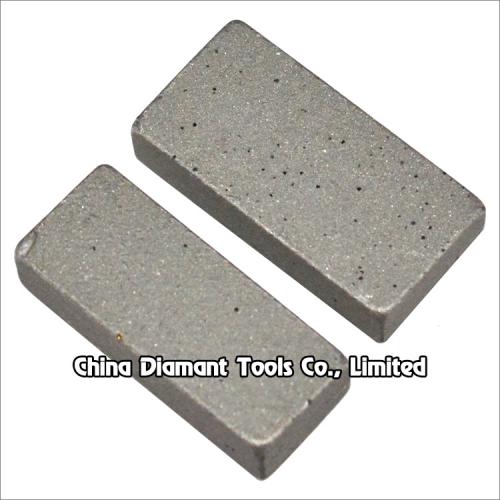

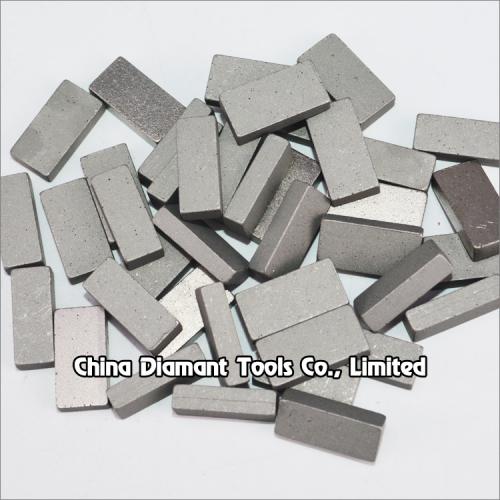

Diamond segments of gangsaw for marble block cutting squaring dressing - taper type
Segment shape: taper
Segment size: H8/10/12mm
Materials cutting: marble,soft stone
Production process: hot-press sintered
Welding type: fire welding / high-frequency welding

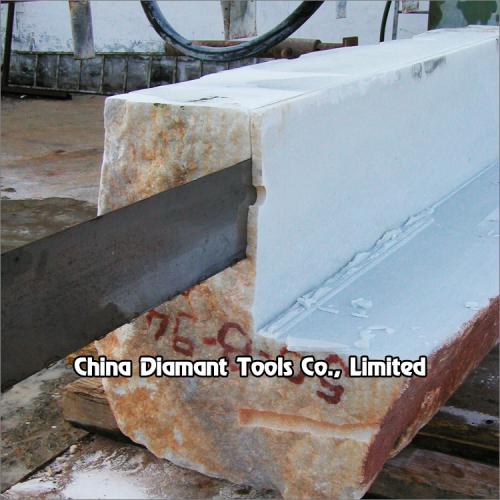

Diamond segments of gangsaw (frame saw blades) for marble block cutting or squaring/dressing
For the precision cutting of natural stones, the gang saw blades of variable dimensions and capacities are serving all types of marbles and other material plants (except granite) for well shaped blocks.
|
|

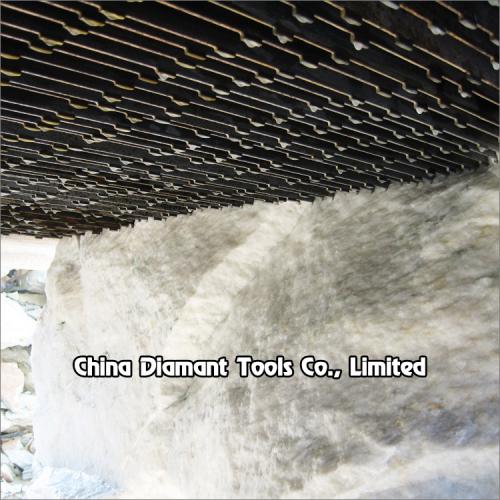

Usually there are 60-80pcs blades of one gang saw machine, also the segments is used for one-blade marble block dressing machine.

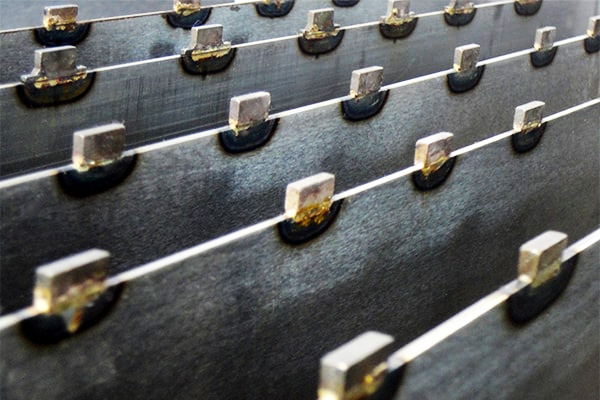

Welding method: fire welding or by high frequency welding machine with silver brazing material.
|
Code No. |
Taper Segment LxWxH(mm) |
Steel Core Thickness |
Purpose |
| DSM-GS-01C |
20x3.5/4.0x8/10 |
2.5/3.0/3.5mm |
Block Slabs Cutting |
| 20x4.0/4.5x8/10 | |||
| 20x4.5/5.0x8/10 | |||
| DSM-GS-01D |
24x4.5/5.0x10/12 |
3.0/3.5mm |
Block Dressing |
| 24x5.0/5.5x10/12 |
The above specifications & photos are for reference, other specification may be available as per demand.
