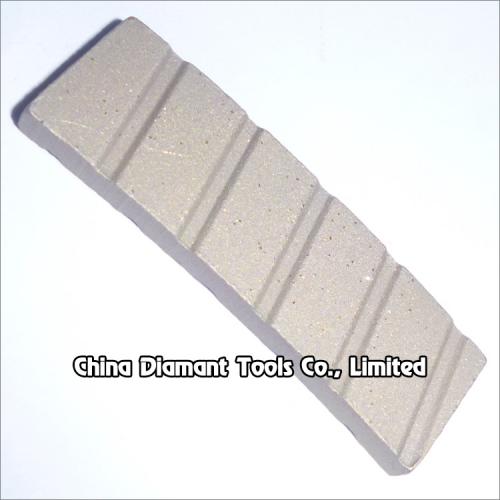

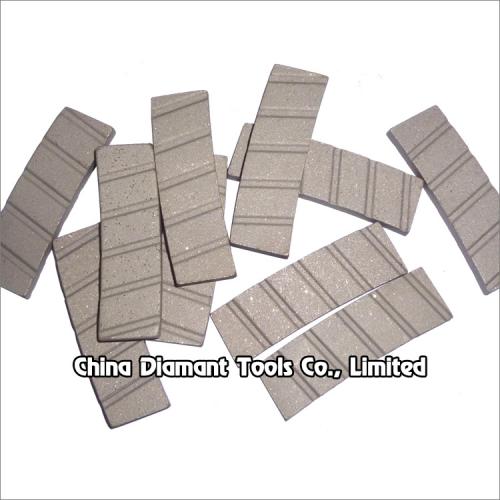

Diamond segments of circular saw blades for granite cutting - diagonal groove shape
For diameter: 350-600mm
Segment size: H12mm
Materials cutting: granite,hard stone
Production process: hot-press sintered
Welding type: high-frequency silver welding

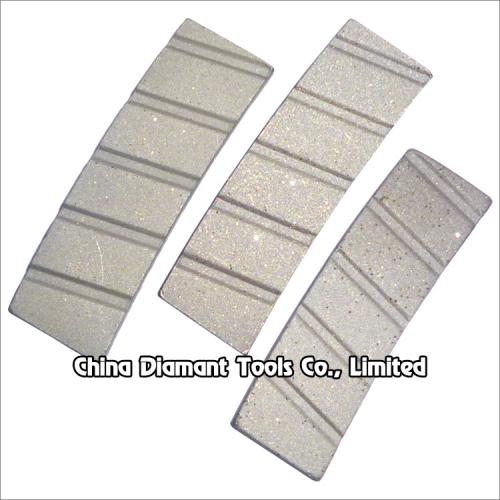

Diamond segments of circular saw blades for granite cutting - diagonal groove shape

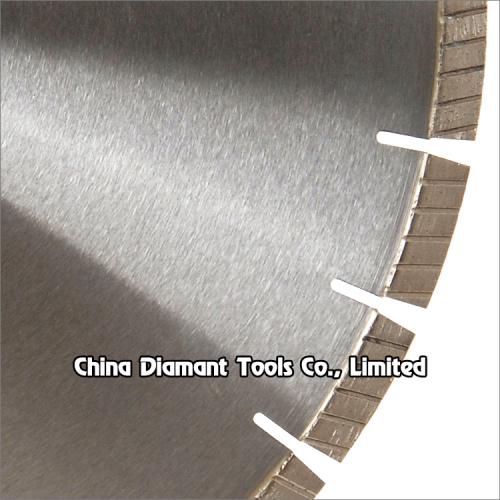

Diamond segment with diagonal groove shape of 350-600mm circular saw blades for slab edge cutting of granite, sandstone, various hard stone with quartz.
Diagonal groove shape is benefit for fast coolant and speed cutting.
Suitable for bridge cutting machines, manual handling cutting machines or table cutting machines.
Wet use only with sufficient water.
Welding method: Silver welding by high frequency welding machine.
|
Code No. |
Diameter (mm/Inch) |
Segment Size (mm) |
Segment No. (pcs/set) |
|
DSGS-02-250 |
250mm(10") |
x |
18 |
|
DSGS-02-300 |
300mm(12") |
x |
21 |
|
DSGS-02-350 |
350mm(14") |
40x3.2x12 |
24 |
|
DSGS-02-400 |
400mm(16") |
40x3.6x12 |
28 |
|
DSGS-02-450 |
450mm(18") | 40x4.0x12 |
32 |
|
DSGS-02-500 |
500mm(20") |
40x4.2x12 |
36 |
|
DSGS-02-550 |
550mm(22") |
40x4.4x12 |
38 |
|
DSGS-02-600 |
600mm(24") |
40x4.6x12 |
42 |
|
DSGS-02-700 |
700mm(28") |
x |
50 |
|
DSGS-02-750 |
750mm(30") |
x |
50 |
|
DSGS-02-800 |
800mm(32") |
x |
46 |
The above specifications & photos are for reference, other specification may be available as per demand.
