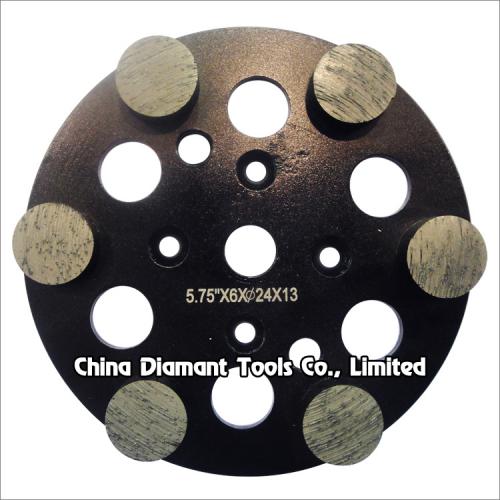

Diamond grinding plate for concrete - round column segments
Diameter: 150/180/200/250mm
Segment type: metal bond round column shape
Segment size: dia.24x13mm*6pcs
Diamond grit: #6-#200(coarse, medium, smooth)
Body: steel base
Production process: silver welded
Materials grinding: concrete,terrazzo floor
Diamond discs grinding plates for concrete - round column segments
It is designed for removing hard epoxies and coatings, erasing concrete imperfections, leveling uneven spots or joints and smoothing rough or patched concrete surfaces. It has 6pcs round diamond segments and it is very high efficient for grinding deep on the concrete terrazzo surface.
It can be used dry, but will give better performance and life used wet.
Generous 13mm deep diamond segments for long life.
We provide you with different metal bonds to fit different hardness of concrete, and a wide range of diamond grits can be chosen.
For coarse grinding(#6-#40), medium grinding(#50-#80), fine grinding(#100-#200).
Diamond grit No.: #6, #16, #20, #25, #30, #40, #50, #60, #80, #100, #120, #150, #170,#200.
Segment bond: soft, medium, hard.
| Code No. | Diameter | Segment Size/No. | Grit |
|
DGD-02-02-150 |
6"(150mm) |
Ø24x13mm*6pcs |
#6 - #200 |
| DGD-02-02-180 | 7"(180mm) | Ø24x13mm*6pcs | |
| DGD-02-02-200 | 8"(200mm) | Ø24x13mm*6pcs | |
| DGD-02-02-250 | 10"(250mm) | Ø24x13mm*6pcs |
The above specifications & photos are for reference, other specification may be available as per demand.
