Vacuum brazed diamond bevel chamfering wheels cone hole expending drill bits conical grinding heads
Diameter: 20-82mm

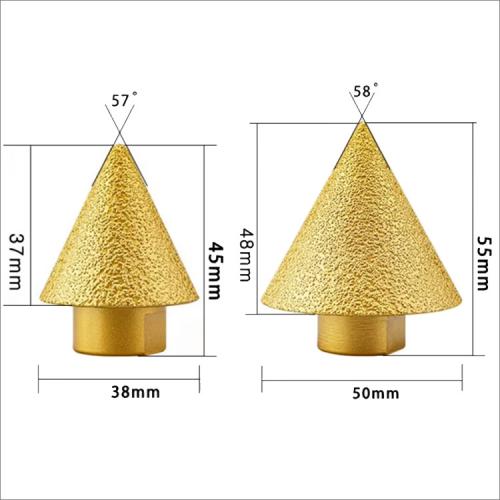

Chamfer angle: 53/57/58 degree
Bore size: M10, M14, 5/8"-11
Diamond grit: coarse,medium or smooth
Production process: vacuum brazed

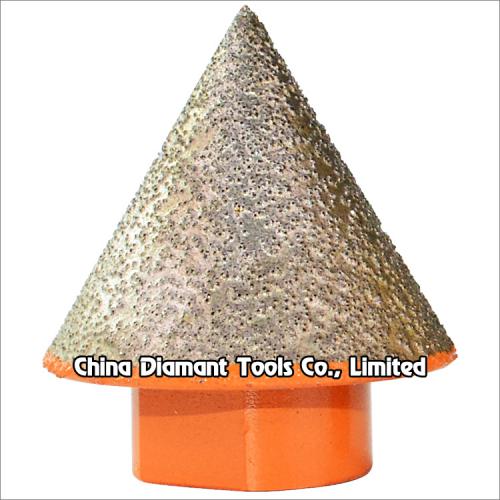

Vacuum brazed diamond bevel chamfering wheels / cone hole expending drill bits / conical grinding heads

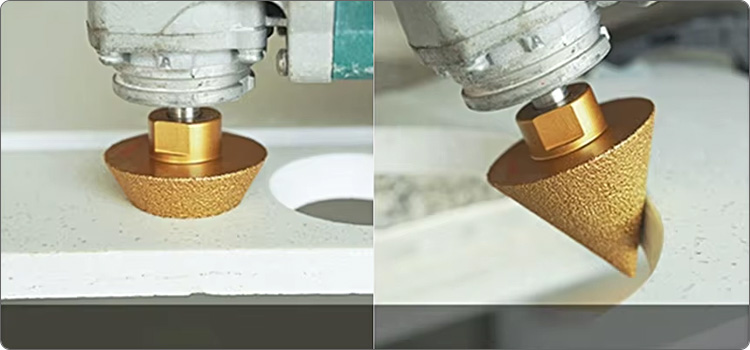

These vacuum brazed diamond bevel chamfering wheels are usually installed on the angle grinder to enlarge, shape, and round bevel existing holes in stone, granite, marble, quartz, ceramic tiles, and easily create round shape indentation to accommodate pipes or electric wire lines.
They are made of premium diamond and durable metal, high strength and hardness, very useful to improve the edge finishing of exposed holes, provide a smooth, high-end finish.
Use wet or dry, water or other cooling agent is recommended for longer life of the bits.

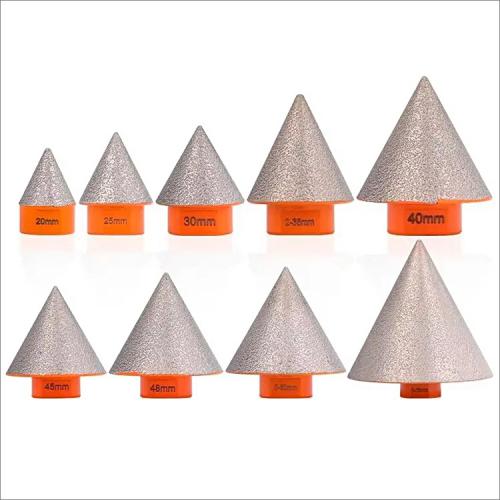

Head diameter: 20/25/30/35/38/40/45/48/50/75/82mm, bore size: M10 / M14 / 5/8"-11.
Diamond grit: coarse, medium, fine.
|
Code |
Diameter |
Chamfer Angle |
|
DCGH-VB-03-20 |
20mm |
53 or 57 or 58 degree |
|
DCGH-VB-03-25 |
25mm |
53 or 57 or 58 degree |
|
DCGH-VB-03-30 |
30mm |
53 or 57 or 58 degree |
| DCGH-VB-03-35 | 35mm | 53 or 57 or 58 degree |
| DCGH-VB-03-38 | 38mm | 53 or 57 or 58 degree |
| DCGH-VB-03-40 | 40mm | 53 or 57 or 58 degree |
| DCGH-VB-03-45 | 45mm | 53 or 57 or 58 degree |
| DCGH-VB-03-48 | 48mm | 53 or 57 or 58 degree |
| DCGH-VB-03-50 | 50mm | 53 or 57 or 58 degree |
| DCGH-VB-03-75 | 75mm | 53 or 57 or 58 degree |
|
DCGH-VB-03-82 |
82mm |
53 or 57 or 58 degree |
The above specifications & photos are for reference, other specification may be available as per customer's demand.
