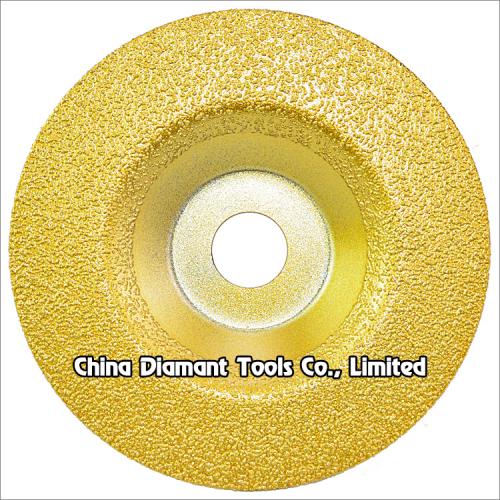

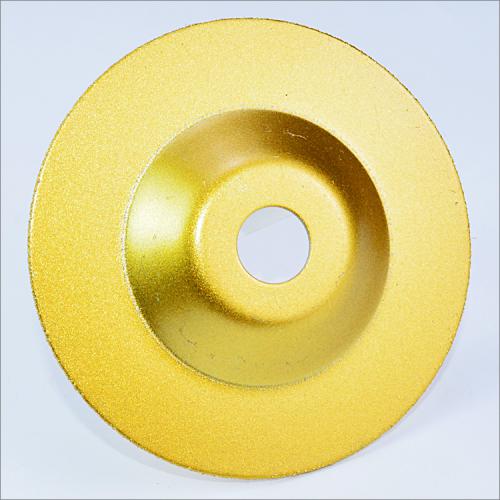

Vacuum brazed diamond cup wheel bowl grinding disc for stone concrete ceramic quartz
Diameter: 100-180mm
Bore: 20mm,22.23mm
Diamond grit: rough, medium, smooth.
Production process: vacuum brazed
Vacuum brazed diamond cup wheel bowl grinding disc for stone concrete ceramic quartz
This type diamond grinding cup wheels are mainly designed for grinding stone such as granite, marble, limestone, slate, quartz, artificial stone, etc., also suitable for grinding steel metal, iron, glass, jade, crystal, ceramics, concrete and similar materials.
Vacuum brazed technology provides faster grinding speed and longer working life.

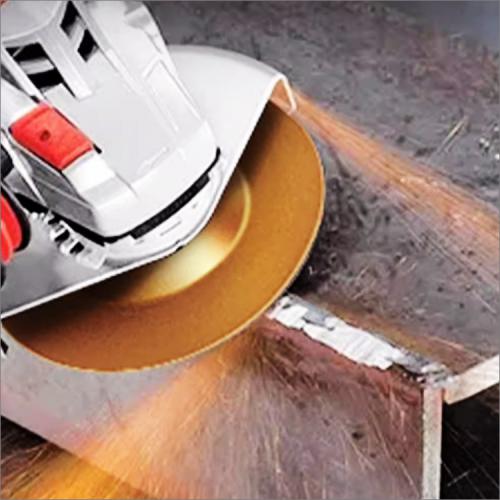

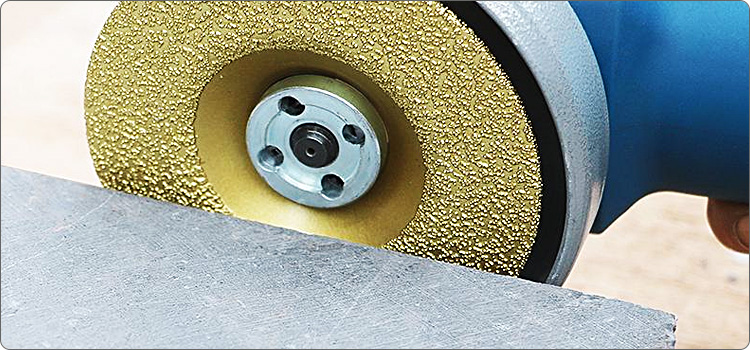

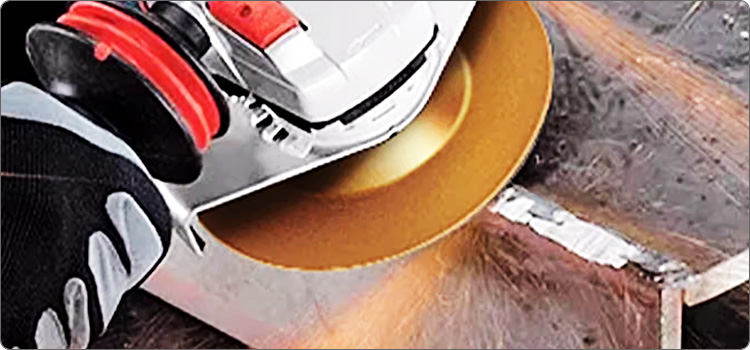

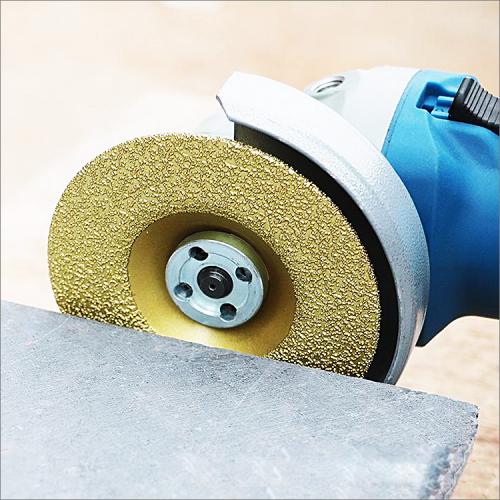

Easy to operate, suitable for angle grinder, wet or dry usage, water coolant is benefit for longer life.
Diamond grit: rough, medium, smooth.
Bore size: 20mm, 22.23mm or as per demand.
|
Code No. |
Diameter |
diamond grit |
|
DGCW-VB-01-100 |
100mm(4") |
#40-120 |
|
DGCW-VB-01-115 |
115mm(4-1/2") |
#40-120 |
| DGCW-VB-01-125 | 125mm(5") | #40-120 |
| DGCW-VB-01-150 | 150mm(6") | #40-120 |
|
DGCW-VB-01-180 |
180mm(7") |
#40-120 |
The above specifications & photos are for reference, other specification may be available as per demand.
