Diamond grinding cup wheels for stone - resin filled T & foursquare Segments

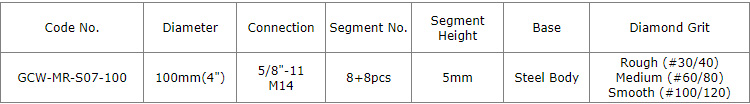

item No : GCW-MR-S07
Diameter: 100mm

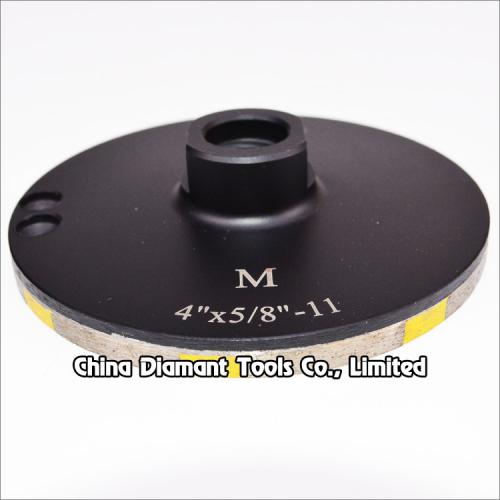

Connection bore: M14,5/8"-11

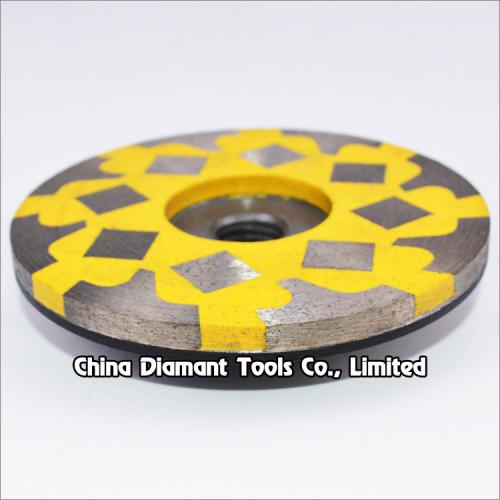

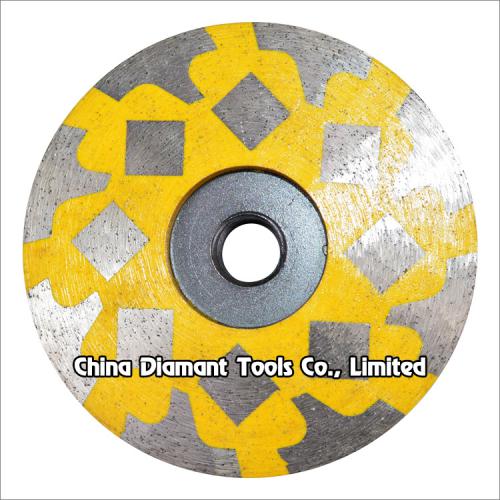

Segment type: T & foursquare shape metal bond resin filled
Segment No.: 8+8pcs
Diamond grit: #30-#120
Body: steel
Production process: hot-press sintered

Inquiry Now

Detailed Description

Inquiry Now

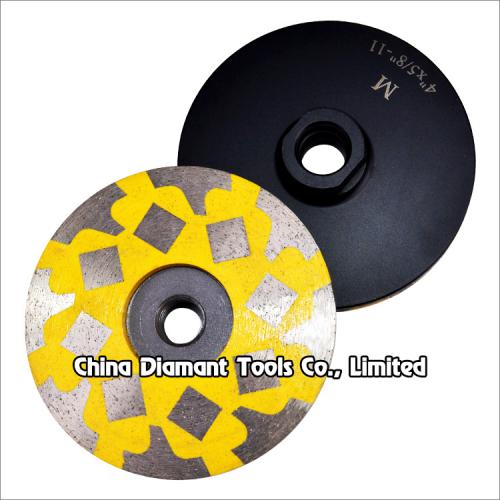

Diamond grinding cup wheels for stone - resin filled T & foursquare Segments

Diamond cup wheels with resin filled metal bond T & foursquare segments for grinding various stone such as granite marble, sandstone, limestone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.

This type cup wheels are perfect for chip free grinding and honing. Diamonds are specifically placed on the cup wheel for maximum speed, and resin is filled to eliminate bouncing, or "biting" into the material-the things that cause chipping.

Wet use only.

Bond type: soft, medium, hard.

Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).

Used on high-speed electric grinder and pneumatic tools.

The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #50/60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.

The above specifications & photos are for reference, other specification may be available as per demand.
