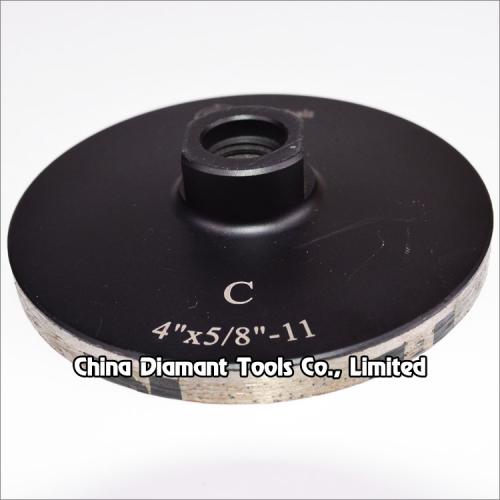

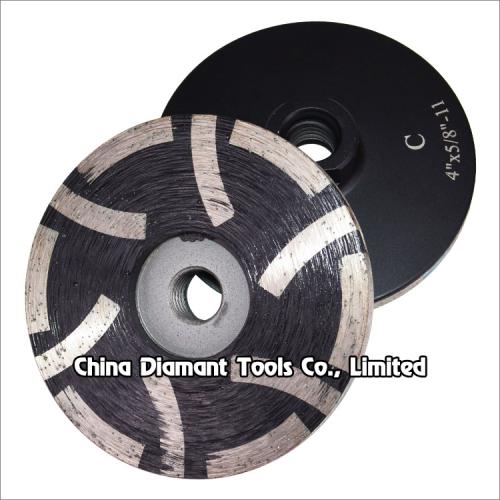

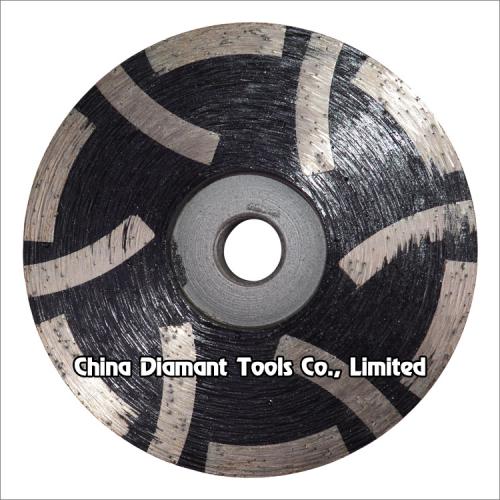

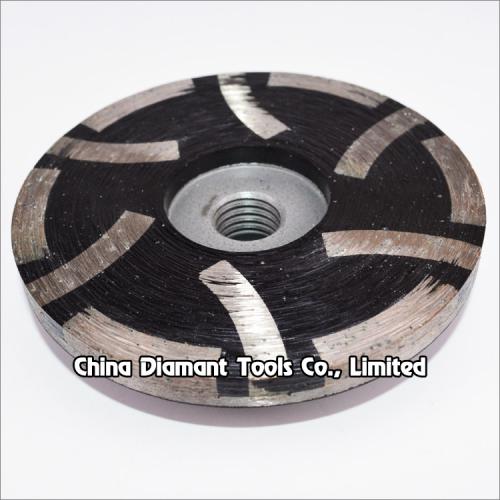

Diamond grinding cup wheels for stone - resin filled curved segments

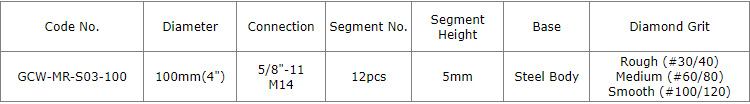

Diameter: 100mm
Connection bore: M14,5/8"-11
Segment type: metal bond resin filled
Segment No.: 12pcs
Diamond grit: #30-#120
Body: steel
Production process: hot-press sintered
Diamond grinding cup wheels for stone - resin filled curved segments
Diamond cup wheels with resin filled metal bond curved segments for grinding various stone such as granite marble, sandstone, limestone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.
This type cup wheels are perfect for chip free grinding and honing. Soft bond diamond segments are specifically placed on the cup wheel for maximum speed, and resin is filled to eliminate bouncing, or "biting" into the material-the things that cause chipping.
Wet use only.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Used on high-speed electric grinder and pneumatic tools.
The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #50/60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.
The above specifications & photos are for reference, other specification may be available as per demand.
