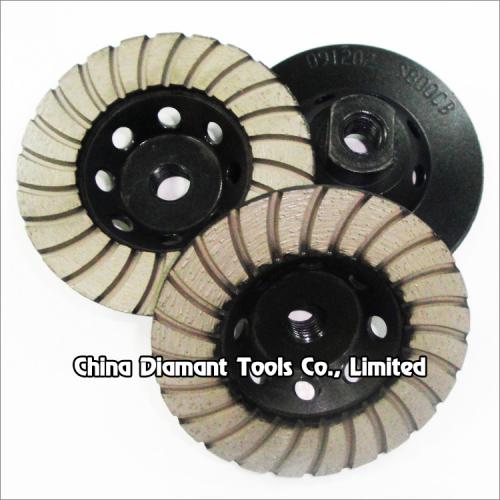

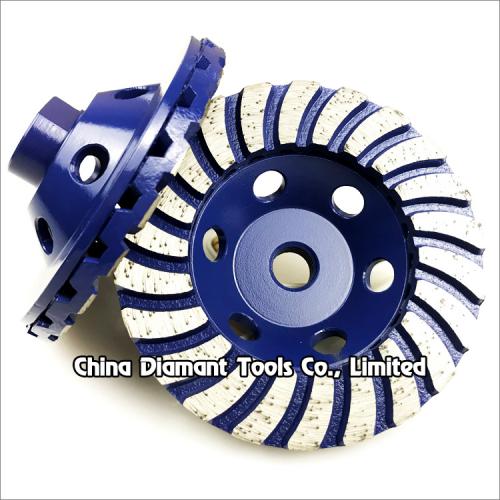

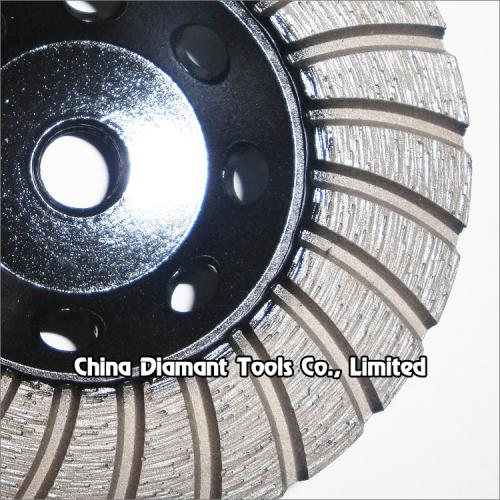

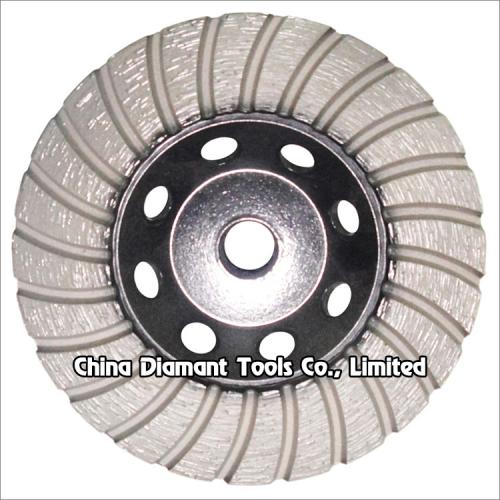

Diamond grinding cup wheels for granite - turbo wave continuous rim

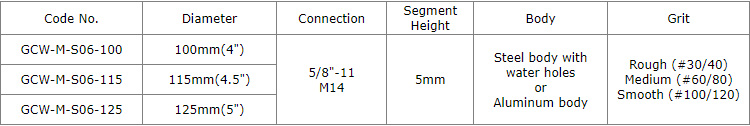

Diameter: 100mm,115mm,125mm
Connection bore: 22.23mm,M14,5/8"-11
Segment type: turbo wave continuous rim
Diamond grit: #30-#120
Body: Steel or Aluminum
Production process: hot-press sintered
Diamond grinding cup wheels for granite - turbo wave continuous rim
Diamond cup wheels with turbo wave continuous rim segments for grinding various stone such as granite marble, sandstone, limestone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.
Dry or wet use.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Used on high-speed electric grinder and pneumatic tools.
The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.
If you choose aluminum base, which can reduce the noise, and the deadweight of the grinding wheel as well as the energy consumption of the angle grinder, and the grinding effect is excellent.
The above specifications & photos are for reference, other specification may be available as per demand.
