Diamond grinding cup wheels for stone - resin filled turbo wave rim

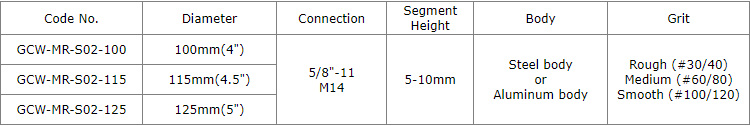

item No : GCW-MR-S02
Diameter: 100mm,115mm,125mm
Connection bore: M14,5/8"-11
Segment type: metal bond resin filled
Diamond grit: #30-#120
Body: steel or aluminum
Production process: hot-press sintered

Inquiry Now

Detailed Description

Inquiry Now

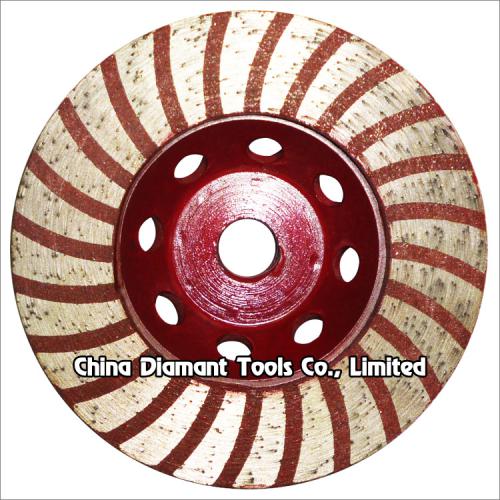

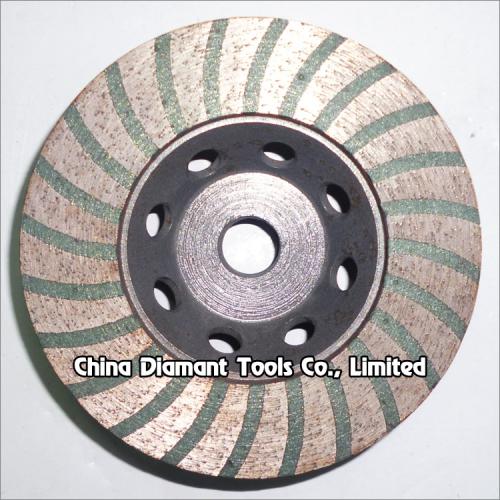

Diamond grinding cup wheels for stone - resin filled turbo wave rim

Diamond cup wheels with metal and resin bond turbo wave continuous rim segments for grinding various stone such as granite marble, sandstone, limestone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.

This type cup wheels are perfect for chip free grinding and honing. Diamonds are specifically placed on the cup wheel for maximum speed, and resin is filled to eliminate bouncing, or "biting" into the material-the things that cause chipping.

Wet use only.

Bond type: soft, medium, hard.

Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).

Used on high-speed electric grinder and pneumatic tools.

The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #50/60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.

If you choose aluminum base, which can reduce the noise and the deadweight of the grinding wheel as well as the energy consumption of the angle grinder, and the grinding effect is excellent.

The above specifications & photos are for reference, other specification may be available as per demand.
