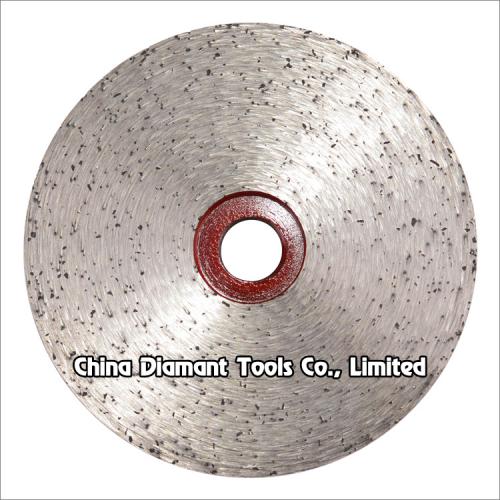

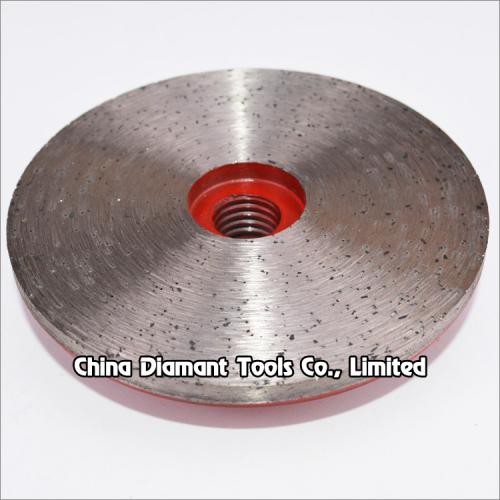

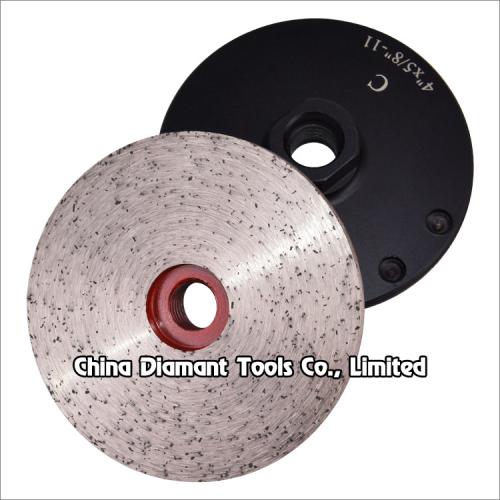

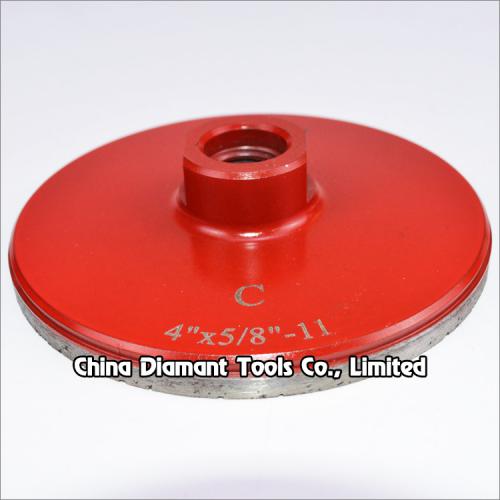

Diamond grinding cup wheel for granite - 5mm continuous rim segment

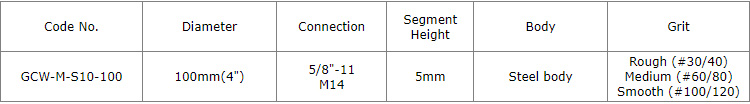

Diameter: 100mm
Connection bore: 22.23mm,M14,5/8"-11
Segment type: 5mm thickness continuous rim
Diamond grit: #30-#120
Body: steel
Production process: hot-press sintered
Diamond grinding cup wheels for granite - 5mm continuous rim segment
Diamond cup wheels with 5mm thickness continuous rim segment for grinding various stone such as granite marble, sandstone, limestone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.
Dry or wet use.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Used on high-speed electric grinder and pneumatic tools.
The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.
The above specifications & photos are for reference, other specification may be available as per demand.
