Diamond grinding cup wheel for granite - twin turbo continuous rim

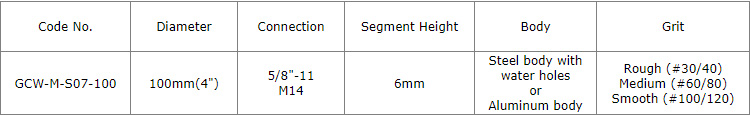

Diameter: 100mm
Connection bore: M14,5/8"-11
Segment type: twin turbo continuous rim
Diamond grit: #30-#120
Body: aluminum
Production process: hot-press sintered

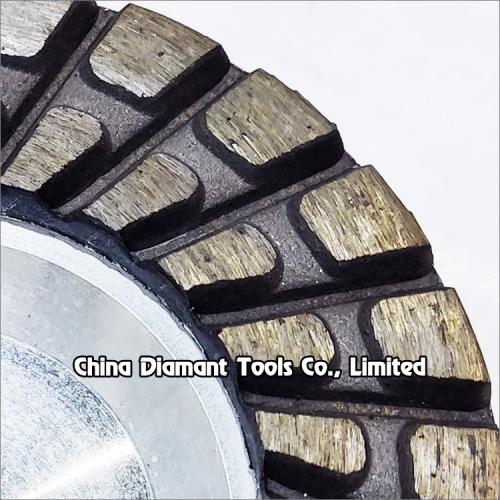

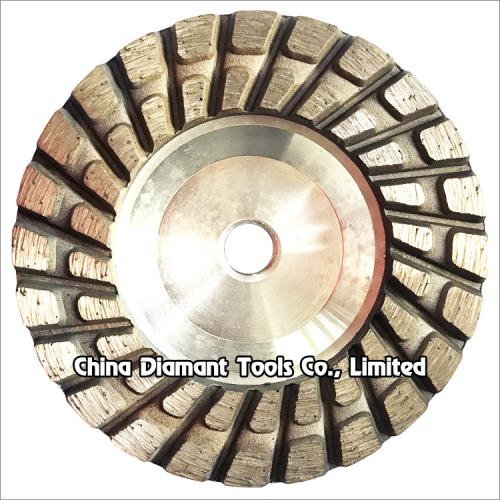

Diamond grinding cup wheels for granite - twin turbo continuous rim
Diamond cup wheel with twin turbo continuous rim segments for grinding various hard stone such as granite, sandstone, artificial stone, etc., ideal for smoothing and shaping as well as stock removal.
Dry or wet use.
Bond type: soft, medium, hard.
Regular grit: rough(#30/40), medium(#60/80), smooth(#100/120).
Used on high-speed electric grinder and pneumatic tools.
The hot-press sintered segments offers efficient and steady performance, #30 for the first step coarse grinding, #60 for the medium next step, #100/120 for fine grinding, Grit #100/120 diamond grits provide great finishing and much longer working life.
If you choose aluminum base, which can reduce the noise, and the deadweight of the grinding wheel as well as the energy consumption of the angle grinder, and the grinding effect is excellent.
The above specifications & photos are for reference, other specification may be available as per demand.
