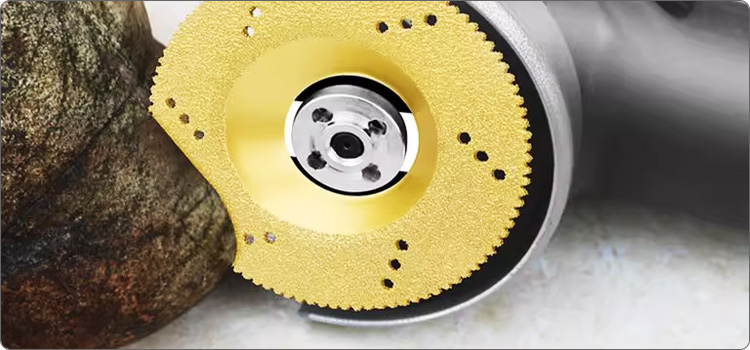

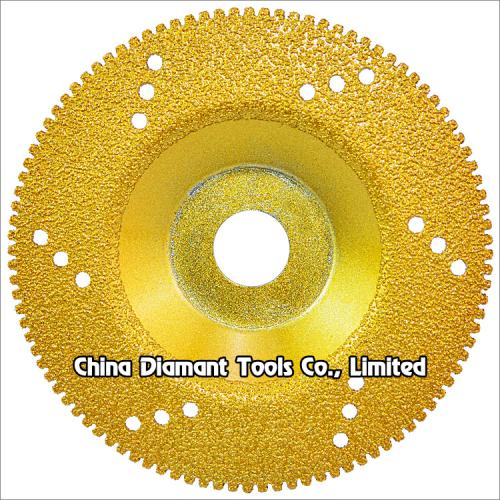

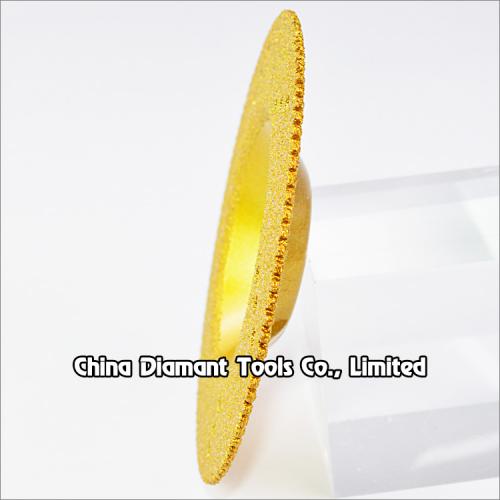

Vacuum brazed diamond cup wheel bowl grinding disc for cutting grinding stone

item No : DGCW-VB-02
Diameter: 100-125mm
Bore: 20mm,22.23mm
Diamond grit: rough, medium, smooth.
Production process: vacuum brazed

Vacuum brazed diamond cup wheel bowl grinding disc for cutting grinding stone


This type diamond grinding cup wheels are mainly designed for cutting & grinding stone such as granite, marble, limestone, slate, quartz, artificial stone, etc., also suitable for grinding steel metal, iron, glass, jade, crystal, ceramics, concrete and similar materials.


Vacuum brazed technology provides faster grinding speed and longer working life.

Easy to operate, suitable for angle grinder, wet or dry usage, water coolant is benefit for longer life.

Diamond grit: rough, medium, smooth.

Bore size: 20mm, 22.23mm or as per demand.


Code No.

Diameter

diamond grit

DGCW-VB-02-100

100mm(4")

#40-120

DGCW-VB-02-115

115mm(4-1/2")

#40-120

DGCW-VB-02-125 125mm(5") #40-120



The above specifications & photos are for reference, other specification may be available as per demand.
